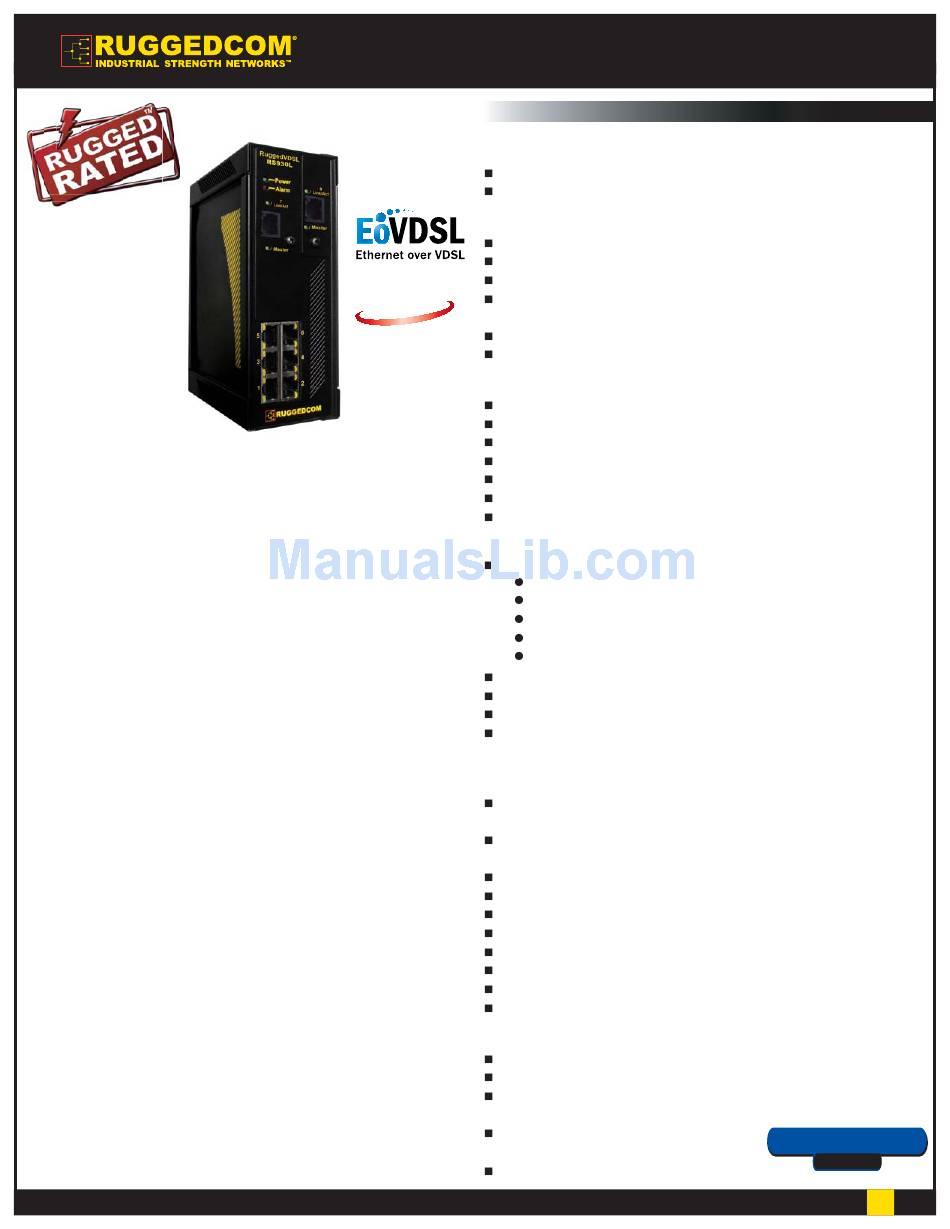

The RuggedVDSL RS930L is a 6 port industrially hardened,
fully managed Ethernet switch supporting Ethernet over VDSL
(EoVDSL) allowing up to 4km LAN segments over telephone
grade cable (or other legacy serial cabling) at up to 35Mbps.
The RS930L allows for aggregation of Ethernet enabled devices
at a remote location back to the central control room with
EoVDSL using existing telephone grade cable (or other legacy
serial cabling). The RS930L can be configured with dual
EoVDSL interfaces and is ideal for ring or loop network
architecture and is the perfect solution for bringing Ethernet
networking to applications where existing telephone wiring is
already present, thus saving the considerable cost of installing
new network cabling.
Designed to operate reliably in harsh industrial environments the
RS930L provides a high level of immunity to electromagnetic
interference and heavy electrical surges typical of environments
found in electric utility substations, factory floors or in curb side
traffic control cabinets. An operating temperature range of -40°C
to +85°C coupled with hazardous location certification, optional
conformal coating and a galvanized steel enclosure allows the
RS930L to be placed in almost any location.
The RS930L is packaged in a compact, galvanized steel
enclosure that allows either DIN or panel mounting for efficient
use of cabinet space. The RS930L provides an integrated
power supply with a wide range of voltages (88-300VDC or 85-
264VAC) for worldwide operability or dual-input, reversible
polarity, 12VDC, 24VDC and 48VDC power supply inputs for
high availability applications requiring backup power inputs.
The RS930L's superior ruggedized design coupled with the
embedded Rugged Operating System (ROS™) provides
improved system reliability and advanced networking features
making it ideally suited for creating Ethernet networks for
mission-critical, real-time, control applications.
All RuggedCom products are backed by a five year warranty
and unsurpassed technical support.
www.RuggedCom.com
6-Port Managed Ethernet Switch with Dual Port Ethernet over VDSL Uplinks
Ethernet Ports
Up to two Ethernet over VDSL (EoVDSL) interfaces
6 fast Ethernet ports (10/100BaseTX)
Ethernet Over VDSL Port Characteristics:
.Up to 5km LAN segments
Symmetric data rates up to 35Mbps
Asymmetric data rates up to 40Mbps
eRSTP eRSTP eRSTP eRSTP eRSTP
TM
Automatically selects fastest data rate based on distance
and quality of cable
Software selectable to be master or slave
Frequency Division Multiplexing (FDM)
Cyber Security Features
.
Multi-level user passwords
eRSTP eRSTP
.
SSH/SSL encryption
.
Enable/disable ports, MAC based port security
.
Port based network access control (802.1x)
.
VLAN (802.1q ) to segregate and secure network traffic
.
Radius centralized password management
.
SNMPv3 encrypted authentication and access security
RuggedRated™ for Reliability in Harsh Environments
.
Immunity to EMI and heavy electrical surges
.
Meets IEEE 1613 (electrical utility substations)
.
Exceeds IEEE 61850-3 (electrical utility substations)
.
Exceeds IEC 61800-3 (variable speed drive systems)
.
Exceeds IEC 61000-6-2 (generic industrial)
.
Exceeds NEMA TS-2 (traffic control equipment)
.
-40 to +85°C operating temperature (no fans)
no fans or moving parts for improved reliability
.
20 AWG galvanized steel enclosure
DIN or panel mounting options provide secure
mechanical reliability
Rugged Operating System (ROS™) Features
.
Simple plug and play operation - automatic learning,
negotiation, and crossover detection
.
RSTP (802.1D-2004) and Enhanced Rapid Spanning Tree
(eRSTP™) network fault recovery (<5ms)
.
Quality of Service (802.1p) for real-time traffic
.
VLAN (802.1q) with double tagging and GVRP support
.
Link aggregation (802.3ad)
.
IGMP Snooping for multicast filtering
.
Port Rate Limiting and Broadcast Storm Limiting
.
Port configuration, status, statistics, mirroring, security
.Loss of link management on fiber ports
SNTP time synchronization (client and server)
Universal Power Supply Options
.
Fully integrated power supply (no external adaptors)
.
Universal high-voltage range: 88-300VDC or 85-264VAC
.
Dual low-voltage DC inputs: 24VDC (9-36VDC)
or 48VDC (36-72VDC)
.
Terminal blocks for reliable maintenance
free connections
.
CSA/UL 60950 safety approved to +85°C
RuggedVDSL™ RS930L
Features and Benefits
