3. Installation

3.4. Serial Console Port

The serial console port on the front panel provides access to the boot-time control and
configuration menu interface, and a console interface to the ROX™ operating system.
The serial ports implement RS232 DCE on a RJ45 connector. Serial settings are: 57600 bps, 8
bits, No parity, 1 stop bit. See the illustration and table below for pin configuration and assignment.

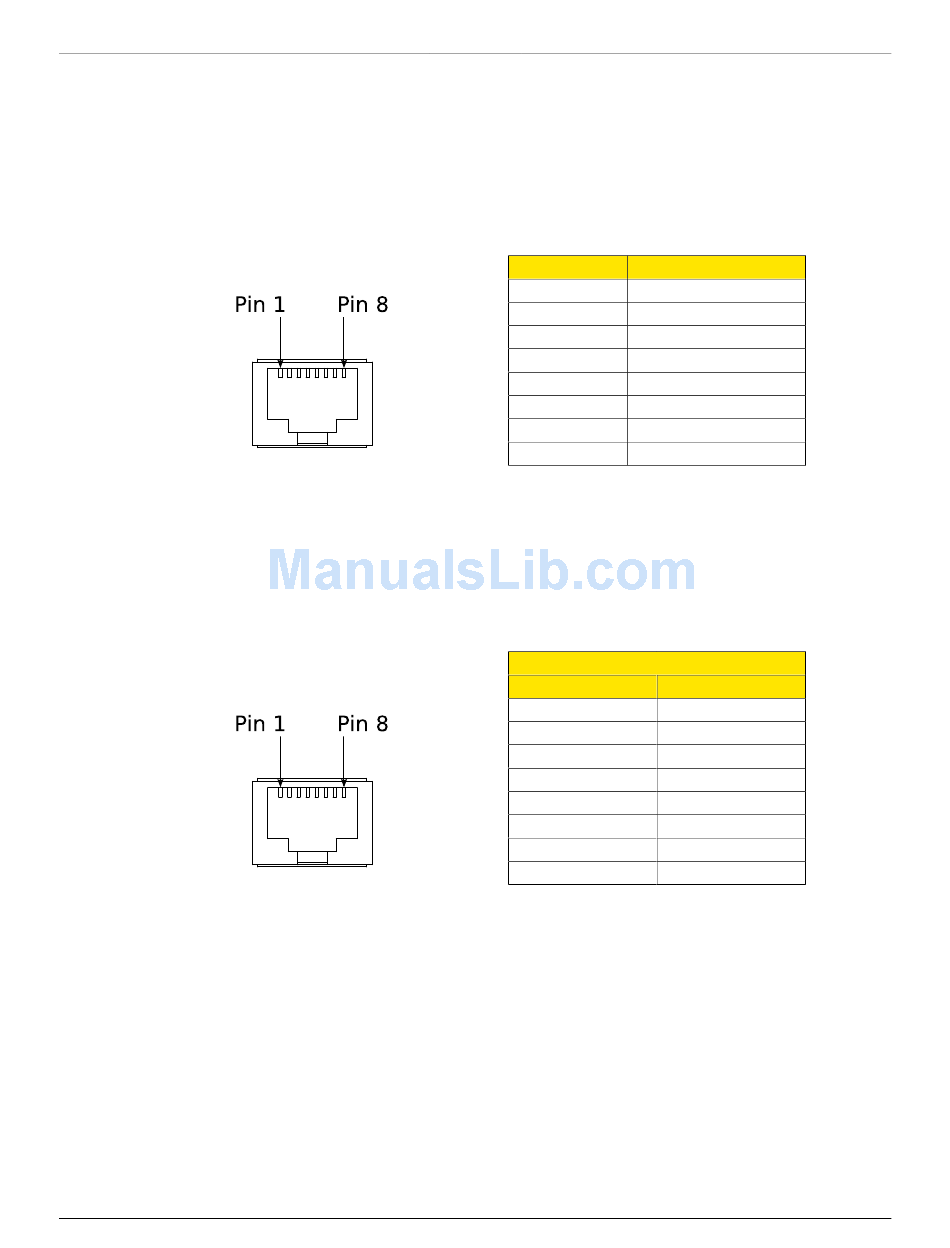

Figure 3.16. RJ45 Serial Console Port

3.5. WAN Ports: RJ45

The RX1510 supports T1/E1 WAN ports, to interface to standard T1 or E1 telecommunication
infrastructure. Carefully note the orientation of the RJ45 receptacle when inserting or removing
cabling. See the illustration and table below for pin configuration and assignment.
Figure 3.17. RJ45 T1/E1 Pin Configuration
RuggedCom® RuggedBackbone™
RJ45 Pin
1
2
3
4
5
6
7
8
Table 3.1. RJ45 Serial Console Pinout
T1/E1 pinout
Pin
1
2
3
4
5
6
7
8
Table 3.2. RJ45 T1/E1 Pin Assignment
24 RX1510 Installation Guide Rev 104
Signal Function
RX+
RX-
TX+
NC
NC
TX-
NC
NC
Description
RRING
RTIP
NC
TRING
TTIP
NC
NC
NC
