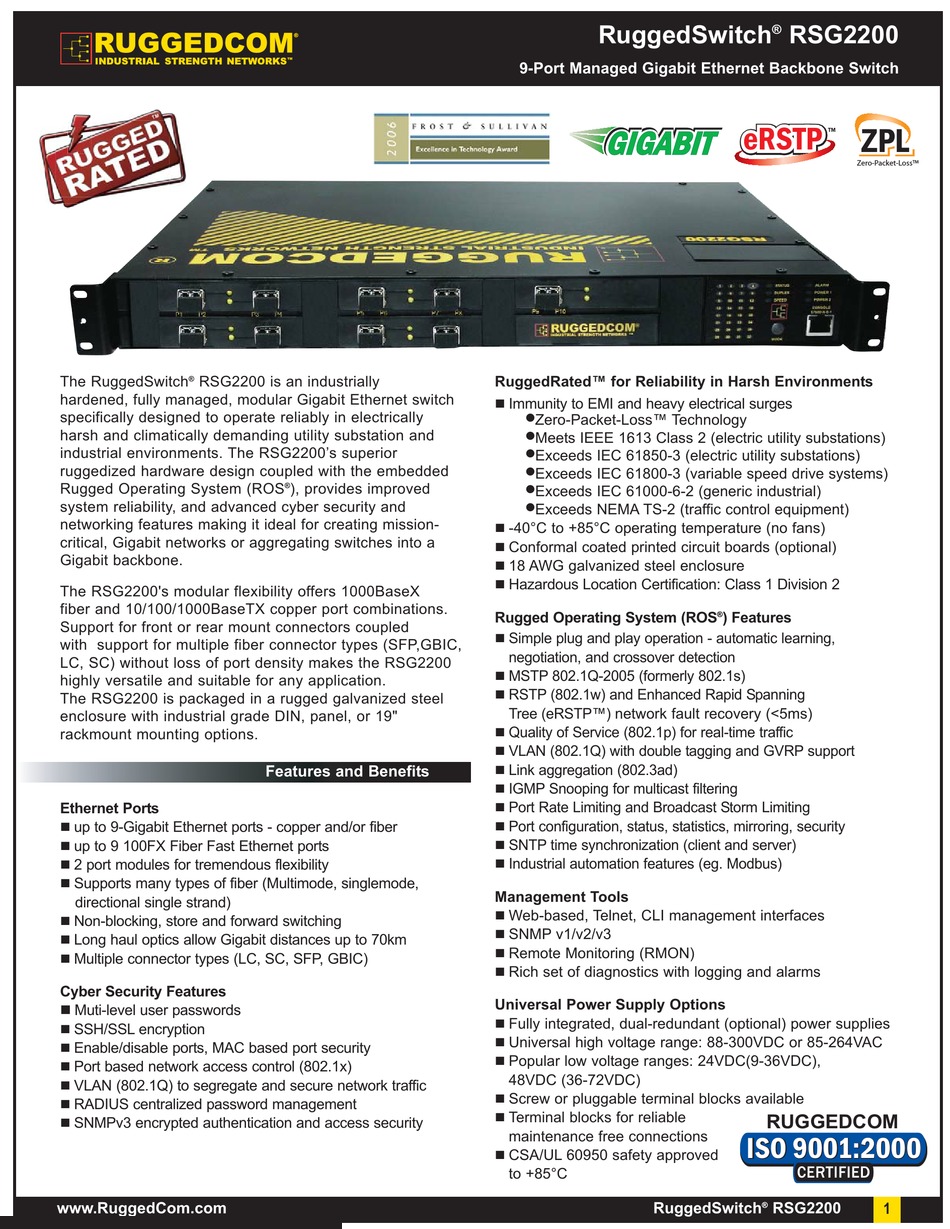

RuggedCom RuggedSwitch RSG2200 Specification Sheet

®

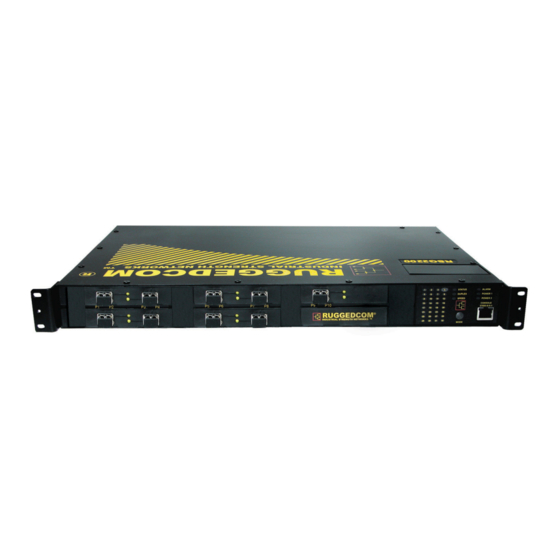

The RuggedSwitch RSG2200 is an industrially
hardened, fully managed, modular Gigabit Ethernet switch
specifically designed to operate reliably in electrically
harsh and climatically demanding utility substation and
industrial environments. The RSG2200's superior
ruggedized hardware design coupled with the embedded
Rugged Operating System (ROS
system reliability, and advanced cyber security and
networking features making it ideal for creating mission-
critical, Gigabit networks or aggregating switches into a
Gigabit backbone.
The RSG2200's modular flexibility offers 1000BaseX
fiber and 10/100/1000BaseTX copper port combinations.
Support for front or rear mount connectors coupled
with support for multiple fiber connector types (SFP,GBIC,
LC, SC) without loss of port density makes the RSG2200
highly versatile and suitable for any application.
The RSG2200 is packaged in a rugged galvanized steel
enclosure with industrial grade DIN, panel, or 19"
rackmount mounting options.
Ethernet Ports
.up to 9-Gigabit Ethernet ports - copper and/or fiber
.up to 9 100FX Fiber Fast Ethernet ports
.2 port modules for tremendous flexibility
.Supports many types of fiber (Multimode, singlemode,
directional single strand)
.Non-blocking, store and forward switching
.Long haul optics allow Gigabit distances up to 70km
.Multiple connector types (LC, SC, SFP, GBIC)
Cyber Security Features
.Muti-level user passwords
.SSH/SSL encryption
.Enable/disable ports, MAC based port security
.Port based network access control (802.1x)
.VLAN (802.1Q) to segregate and secure network traffic
.RADIUS centralized password management
.SNMPv3 encrypted authentication and access security
www.RuggedCom.com
eRSTP
eRSTP
® ), provides improved
Features and Benefits
RuggedSwitch
eRSTP eRSTP
9-Port Managed Gigabit Ethernet Backbone Switch
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
RuggedRated™ for Reliability in Harsh Environments
.Immunity to EMI and heavy electrical surges
Zero-Packet-Loss™ Technology
Meets IEEE 1613 Class 2 (electric utility substations)
Exceeds IEC 61850-3 (electric utility substations)
Exceeds IEC 61800-3 (variable speed drive systems)
Exceeds IEC 61000-6-2 (generic industrial)
Exceeds NEMA TS-2 (traffic control equipment)
.-40°C to +85°C operating temperature (no fans)
.Conformal coated printed circuit boards (optional)
.18 AWG galvanized steel enclosure
.Hazardous Location Certification: Class 1 Division 2
Rugged Operating System (ROS
.Simple plug and play operation - automatic learning,
negotiation, and crossover detection
.MSTP 802.1Q-2005 (formerly 802.1s)
.RSTP (802.1w) and Enhanced Rapid Spanning
Tree (eRSTP™) network fault recovery (<5ms)
.Quality of Service (802.1p) for real-time traffic
.VLAN (802.1Q) with double tagging and GVRP support
.Link aggregation (802.3ad)
.IGMP Snooping for multicast filtering
.Port Rate Limiting and Broadcast Storm Limiting
.Port configuration, status, statistics, mirroring, security
.SNTP time synchronization (client and server)
.Industrial automation features (eg. Modbus)
Management Tools
.Web-based, Telnet, CLI management interfaces
.SNMP v1/v2/v3
.Remote Monitoring (RMON)
.Rich set of diagnostics with logging and alarms
Universal Power Supply Options
.Fully integrated, dual-redundant (optional) power supplies
.Universal high voltage range: 88-300VDC or 85-264VAC
.Popular low voltage ranges: 24VDC(9-36VDC),
48VDC (36-72VDC)
.Screw or pluggable terminal blocks available
.Terminal blocks for reliable
maintenance free connections
.CSA/UL 60950 safety approved
to +85°C
RuggedSwitch
® RSG2200
eRSTP eRSTP
eRSTP eRSTP eRSTP
eRSTP eRSTP ZPL
TM
Zero-Packet-Loss™
eRSTP eRSTP
eRSTP
eRSTP
® ) Features
RUGGEDCOM
ISO 9001:2000 ISO 9001:2000 ISO 9001:2000
CERTIFIED
® RSG2200 1
