Page 1: Installation Guide

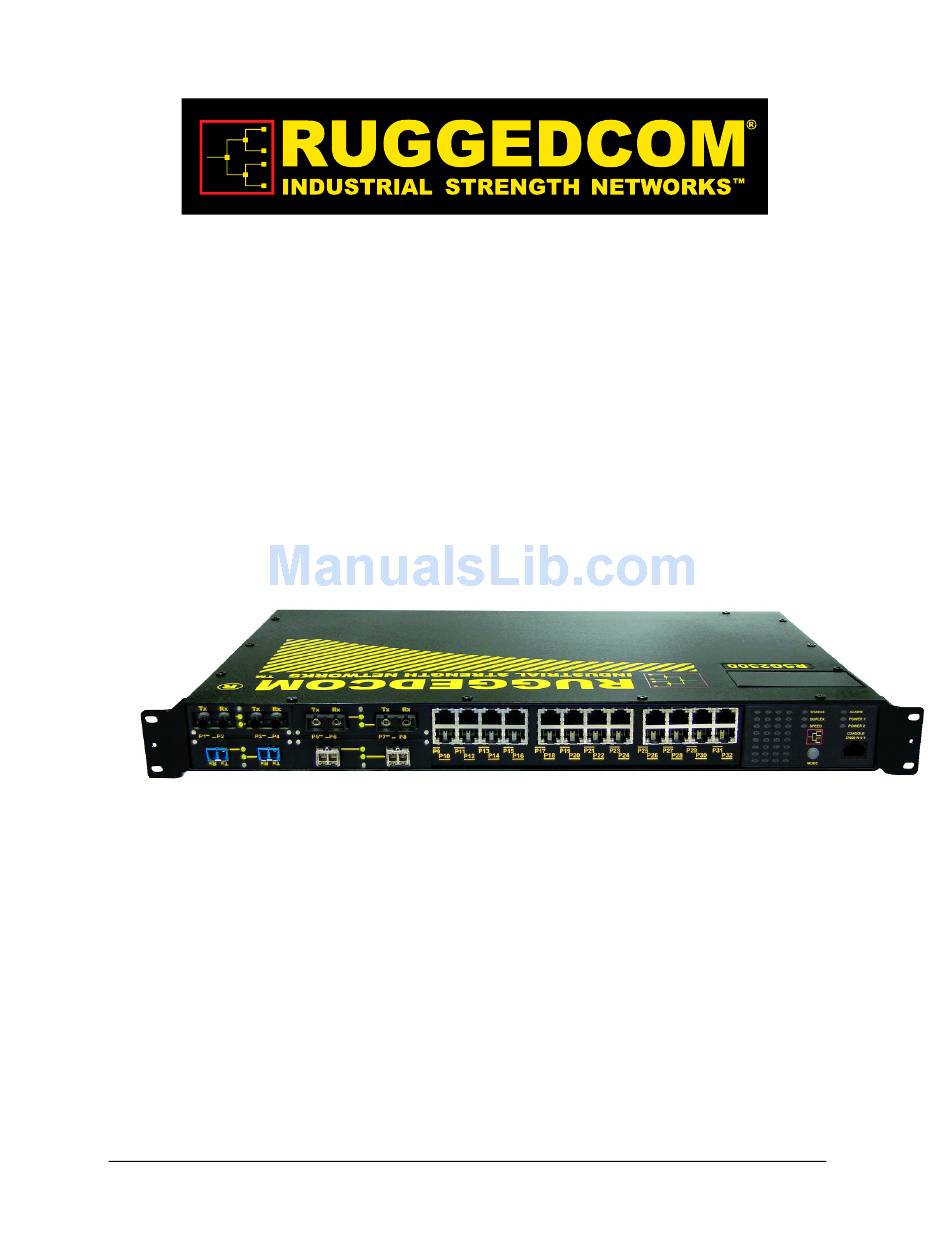

4 Modular Gigabit Uplink Ports Installation Guide June 2, 2011 www.ruggedcom.com RuggedCom Inc. I 300 Applewood Crescent, Concord, Ontario, Canada L4K 5C7 Tel: +1 905 856 5288 I Fax: +1 905 856 1995 I Toll Free: 1 888 264 0006... -
Page 2: Copyright
We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material. -
Page 3: Federal Communications Commission Radio Frequency Interference Statement
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment. -
Page 4: Table Of Contents
2.3.2 DC Power Supply Wiring Examples (RSG2300 and RSG2300P)... 21 2.3.3 AC and DC Power Supply Wiring Example (RSG2300 and RSG2300P) 22 Dielectric Strength (HIPOT) Testing ... 23 Failsafe Alarm Relay Wiring and Specifications ... 24 Console Port Wiring ... 25 Ethernet Ports ... -
Page 5: Table Of Figures
Figure 13: RSG2000 Family 19” Rack Mount Adapters... 16 Figure 14: Rack mount adapter mounting location ... 16 Figure 15: RSG2300 Panel / DIN RAIL mounting diagram (connectors at top) ... 17 Figure 16: RSG2000 Series Phillips Screw Terminal Block... 18 Figure 17: RSG2000 Series Phoenix Plug Terminal Block ... -
Page 6: Table Of Tables
Table 3: LED Display – Device status LED behavior definition... 14 Table 4: Port Status LED behavior definition ... 15 Table 5: RSG2300 Family Power terminal block connection description... 19 Table 6: RS232 over RJ45 console cable pin-out... 25 Table 7: RJ45 Ethernet pin assignment ... 26 Table 8: RJ45 PoE pin-out assignment... -

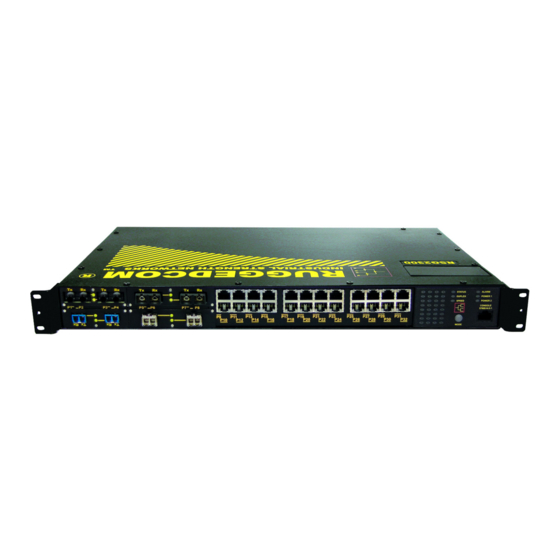

Page 7: Product Overview
RSG2300 highly versatile for any application and can support multiple fiber connectors (SFP, GBIC, LC, SC) without loss of port density. The RSG2300 is packaged in a rugged galvanized steel enclosure with industrial grade DIN, panel, or 19" rack-mount mounting options. - Page 8 18 AWG galvanized steel enclosure Hazardous Location Certification: Class 1 Division 2 Universal Power Supply Options Fully integrated, dual-redundant (optional) power supplies (RSG2300) 48VDC dedicated power supply for PoE (RSG2300P) Universal high-voltage range: 88-300VDC or 85-264VAC ...
- Page 9 Console menu and Command Line management interfaces via SSH, RSH, and Telnet SNMP v1, v2c, and v3 RMON (Remote MONitoring) Rich set of diagnostics with logging and alarms RuggedCom® Product Overview RuggedSwitch RSG2300 Installation Guide Rev108...
-
Page 10: Mounting Flexibility
1.3 Mounting Flexibility RSG2000 series products have been designed with maximum mounting and display flexibility. Customers can order an RSG2000 series switch that can be mounted in a standard 19” rack, 1” DIN Rail, or directly onto a panel. For rack mount installations, the RSG2000 series can be ordered with connectors on the front panel or on the rear of the chassis. -
Page 11: Ethernet Panel Description
1.4 Ethernet Panel Description The Ethernet connector panel of the RSG2300 is organized into three banks of eight 10/100Tx copper ports, for a total of 24 fixed 10/100Tx ports, and four modular slots, whose configuration may be selected at the time the unit is ordered. -
Page 12: Fiber Optic Transceiver Orientation And Connection
1.4.1 Fiber Optic Transceiver Orientation and Connection Depending on the order code of the product, the RSG2300 can be equipped with several different types of fiber optic ports. The Transmit (TX) and Receive (RX) connections of each port must be properly connected and matched for proper link and operation. -
Page 13: Figure 7: 10Fl St Connector
Figure 7: 10FL ST connector Figure 9: 1000LX LC connector Figure 11: 100FX ST connector RuggedCom® Product Overview ® . Note that when the daughter card Figure 8: 100FX MTRJ connector Figure 10: 1000LX SC connector RuggedSwitch RSG2300 Installation Guide Rev108... -
Page 14: Display Panel Description
System reset via the Mode push-button (if held for 5 seconds) Figure 12: RSG2300 LED Display Panel The device status LEDs provide a quick visual indication of the operational status of the unit. Table 3 lists the possible LED colors and their corresponding descriptions. -
Page 15: Table 4: Port Status Led Behavior Definition
Green (Blinking) Green (Solid) Speed Orange (Solid) Table 4: Port Status LED behavior definition RuggedCom® Color Description Link detected Activity No link Full-Duplex operation Half-Duplex operation No link 1000Mb/s 100Mb/s 10Mb/s No link RuggedSwitch RSG2300 Installation Guide Rev108 Product Overview... -
Page 16: Installation
Figure 14: Rack mount adapter mounting location Note: Since heat within the RSG2300 is channeled to the enclosure, it is recommended that 1 rack-unit of space (1.75”) be kept unpopulated and free of equipment above each RS2000 series product to allow for a small amount of convectional airflow. -
Page 17: Panel And Din Rail Mounting
1” DIN rail using the grooves in the adapter, and secured using the included Phillips screw. See Figure 15 for a PANEL/DIN mounting diagram. Figure 15: RSG2300 Panel / DIN RAIL mounting diagram (connectors at top) RuggedCom® RuggedSwitch RSG2300 Installation Guide Rev108... -
Page 18: Power Supply Wiring And Grounding
The connections for PS1, PS2 and the fail-safe relay are located on the terminal block as shown in Figure 16 and Figure 17. RSG2300 products can be equipped with either a Phillips Screw Terminal Block or a Phoenix Plug Terminal Block. The Phillips Screw Terminal Block has Phillips screws with compression plates, allowing either bare wire connections or crimped terminal lugs. -
Page 19: Figure 18: Chassis Ground Connection
The RSG2300 Family chassis ground connection, shown in Figure 18, uses a #6- 32 screw. It is recommended to terminate the ground connection in a #6 ring lug, and to use a torque setting not exceeding 15 in·lbs (1.7 Nm). -
Page 20: Ac Power Supply Wiring Examples (Rsg2300)
2.3.1 AC Power Supply Wiring Examples (RSG2300) Figure 19: AC Single Power Supply Wiring Example Notes: 125/230VAC rated equipment: A 250VAC appropriately rated circuit breaker must be installed. Equipment must be installed according to the applicable country wiring codes. -
Page 21: Dc Power Supply Wiring Examples (Rsg2300 And Rsg2300P)
2.3.2 DC Power Supply Wiring Examples (RSG2300 and RSG2300P) Figure 21: DC Power Supply Wiring Examples Notes: RSG2300P will always have a 48VDC power supply in position PS2. 125/250VDC rated equipment: A 300VDC appropriately rated circuit breaker must be installed. -
Page 22: Ac And Dc Power Supply Wiring Example (Rsg2300 And Rsg2300P)
2.3.3 AC and DC Power Supply Wiring Example (RSG2300 and RSG2300P) Figure 22: AC and DC Power Supply Wiring Examples Notes: RSG2300P will always have a 48VDC power supply in position PS2. 110/230VAC rated equipment: A 250VAC appropriately rated circuit breaker must be installed. -
Page 23: Dielectric Strength (Hipot) Testing
HIPOT testing. Figure 23 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 23: Dielectric Strength (HIPOT) Testing RuggedCom® RuggedSwitch RSG2300 Installation Guide Rev108 Installation... -
Page 24: Failsafe Alarm Relay Wiring And Specifications
Rugged Operating System (ROS). One common application for this output is to signal an alarm if a power failure or removal of control power occurs. Figure 24: Failsafe Alarm Relay Wiring RuggedCom® RuggedSwitch RSG2300 Installation Guide Rev108 Installation... -
Page 25: Console Port Wiring
RI – Ring Indicator Table 6: RS232 over RJ45 console cable pin-out After initial configuration, the RSG2300 can be configured via a number of networked mechanisms such as Telnet SSH, and the built-in secure web server. Consult the ROS™ User Guide for further details. -
Page 26: Ethernet Ports
2.7 Ethernet Ports 2.7.1 RJ45 Twisted-Pair Data Ports RSG2300 series Ethernet switches are equipped with at least 24 10/100BaseTX ports that allow connection to standard CAT-5 UTP cable with RJ45 male connectors. All RSG2300 series RJ45 RuggedSwitch products feature auto- negotiation, auto-polarity, and auto-crossover functions. -
Page 27: Rj45 Twisted-Pair Poe Ports
RuggedCom® Required action New wire infrastructure required Verify TIA/EIA-568-A compliance No action required. New installations should be designed with Category 5e components or higher No action required Connector and cabling standards to be determined. RuggedSwitch RSG2300 Installation Guide Rev108 Installation... -
Page 28: Transient Suppression
2.7.4 Transient Suppression RuggedCom does not recommend the use of copper cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. -
Page 29: Pluggable Optics - Installation, Removal, And Precautions
2.8 Pluggable optics – Installation, removal, and precautions The RSG2300 can be ordered with two pluggable optical form factors: SFP (Small Form-factor Pluggable), and GBIC (GigaBit Interface Converter). SFP and GBIC modules can be safely inserted and removed while the chassis is powered and operating –... -
Page 30: Gbic Module Removal
Removal of an SFP module is shown further in Figure 31. The module should be immediately stored in an ESD-safe environment. Figure 30: SFP Bail Latch Location RuggedCom® Figure 31: SFP Removal RuggedSwitch RSG2300 Installation Guide Rev108 Installation... -
Page 31: Technical Specifications
The power supplies in Table 10 may be used for PS1 only, or for both PS1 and PS2 on the RSG2300, but only for PS1 on the RSG2300P. The RSG2300P uses the PoE power supply specified in Table 11 for PS2. -
Page 32: Networking Standards Supported
3.4 Copper Ethernet Port Specifications The RSG2300 features a fixed set of three fixed banks of eight 10/100Tx copper ports each, and can be ordered with additional 10/100Tx ports in slots 1 and 2, and 10/100/1000Tx ports in slots 3 and 4. All copper ports have the following... -
Page 33: Fiber Ethernet Port Specifications
Module order codes are contained within each product when assembled and configured at the factory. Consult the RuggedCom ROS™ User Guide for help in obtaining the factory configuration data. 3.5.1 10FL Ethernet Optical Specifications... -
Page 34: Gigabit Ethernet (1000Mbps) Optical Specifications
Notes: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 2. All optical power numbers are listed as dBm averages. -
Page 35: Operating Environment
-40 to 85C Temperature Ambient Relative 5% to 95% Humidity Ambient Storage -40 to 85C Temperature RuggedCom® Technical Specifications Comments Ambient Temperature as measured from a 30cm radius surrounding the center of the enclosure. Non-condensing RuggedSwitch RSG2300 Installation Guide Rev108... -
Page 36: Mechanical Specifications
18.29 x 12.14 x 1.75 in (464.57 × 308.36 × 44.45 mm) Weight 10 lb (4.5 kg) Enclosure 18AWG galvanized steel Figure 32: RSG2300 Mechanical Dimensions RuggedCom® Value (Length x Width x Height) with mounting brackets installed RuggedSwitch RSG2300 Installation Guide Rev108... -
Page 37: Type Test Specifications
Signal ports +/- 2kV line-to-line +/- 2kV line-to-earth, D.C. Power ports +/- 1kV line-to-line +/- 4kV line-to-earth, A.C. Power ports +/- 2kV line-to-line Signal ports D.C Power ports A.C. Power ports Earth ground ports RuggedSwitch RSG2300 Installation Guide Rev108 Severity Levels... -
Page 38: Environmental Type Tests
Test Levels Test Ad -40°C, 16 Hours Test Bd +85°C, 16 Hours 95% (non-condensing), Test Db 55°C , 6 cycles 2g @ (10 - 150) Hz 30g @ 11mS RuggedSwitch RSG2300 Installation Guide Rev108 Severity Levels Class 2 Class 2... -
Page 39: Agency Approvals
FDA/CDRH EN60825-1:1994 + A11:1996 + IEC/EN 6 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit customer service representative. Should this product require service, contact the factory at: RuggedCom Inc.
