1.5 Functions:
LINK Door phone functions are influenced partly by the modules attached (with keypad or without it) and partly
by setting of parameters (see chapter "Parameter Overview").

1.5.1 Doorphone without Keypad

The Doorphone module direct call buttons (U4C and M4N) are provided with nameplates shoing names of
department, name of the company or name of the persons inside the building. The incoming person will press the
corresponding button, the Doorphone will lift up the line either immediately (See parameter 53) when the button
pressed is not the first number of password and after period given (See parameter 55) the programmed number will be
dialed out.
The dialing number differs if Day/Night or Group 1/ Groupe 2 mode are selected (See parameter 47):
-
In Day mode, the dialed number belong to memory table of parameter 1
-
In Night mde, the dialed number belong to memory table of parameter 2
-
If Day/Night mode are selected, Manualy you can Relay from Day to Night mode (See parameter 45,46)
-
The Relaying from Day to Night mode can also be done by pressing a second time on the same button either
when no one is answering the phone neither when hearing a busy tone.
-
If a visitor presses the button after Doorphone lifting up, so the Doorphone will hang up for a period given by
parameter 54, lift up the line and dial a new number. The number choice is carried out both tone (DTMF), and
pulse dialing according to parameter 41 setting.
-
The Relay (code lock) can be controlled by first 10 buttons of Doorphone. If the visitor at door presses buttons
in such combination that meet the preprogrammed code (parameters 32-34) and the time among presses is not
bigger than the set point (parameter 53), then the Doorphone will lift up and close the corresponding Relay (if
set in m=1 or m=5 modes) to the period given by parameter 36 event. 38. Then it will hang up.

1.5.2 Doorphone with Keypad

The Doorphone with keypad can also include besides the keypad up to 10 buttons of direct dialing except the
code lock. This one is always situated on keypad. After keypad is connected, the position, where the keypad is
connected to, should be set (parameter 48).

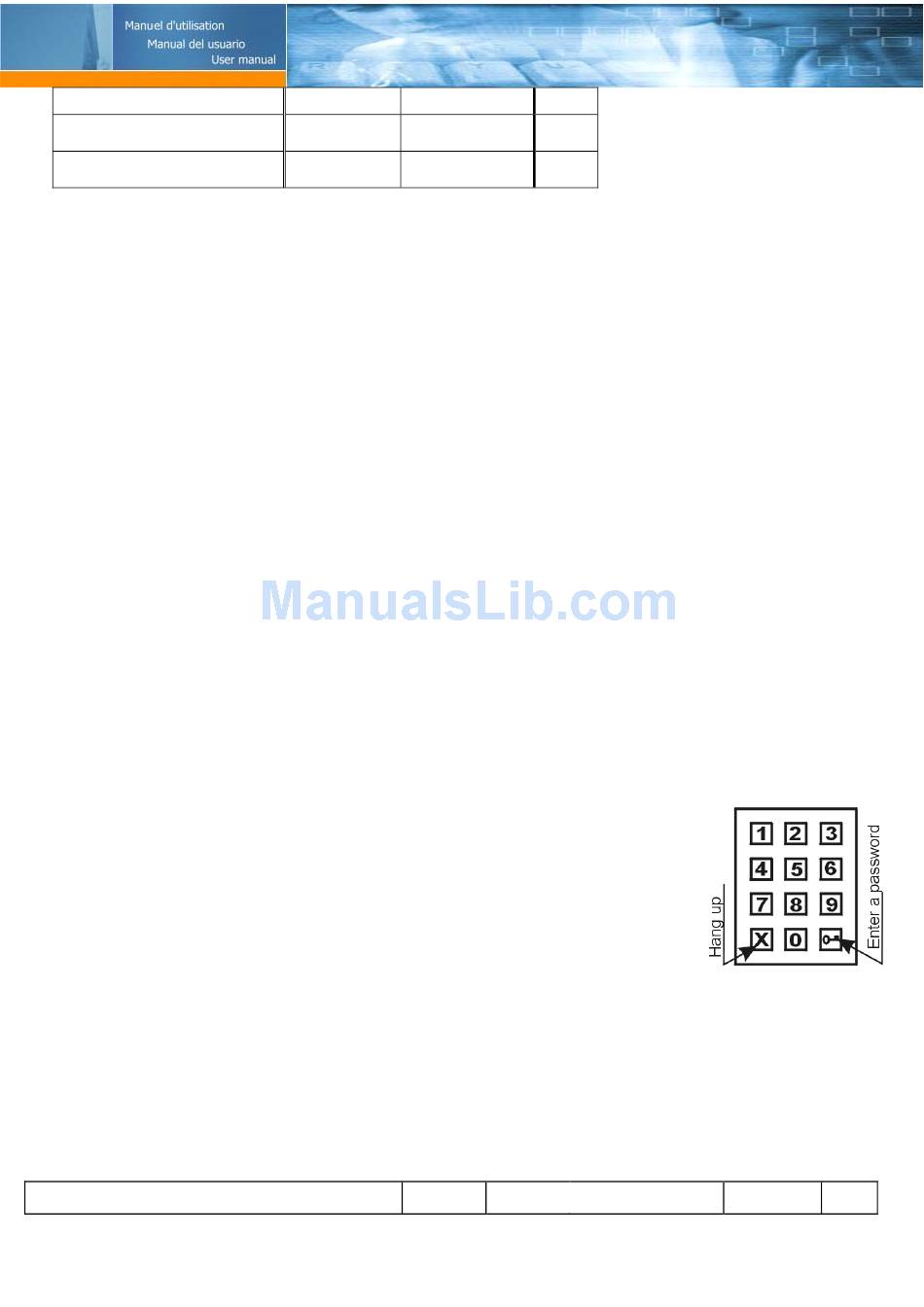

The keypad has two functional buttons
key symbol = once pressing the numerical combination is considered as the combination for control of
the Relayes. The second button
–X symbol = when pressing the Doorphone immediately will hang up.
The number selection on keypad can be executed in two ways (parameter 49):
-
The incoming person is dialing number as to be done on phone – the period among
button presses should be lower than the value given by parameter 53. After this
period the Doorphone will lift up and dial the given number.
-
On buttons the incoming person is dialing a two-digit number (from 01 to 64), which
represents the memory number, where the 16-digit number is stored (same as for
buttons). The number dialing is managed by Day/Night setting or mode for two
groups of numbers .
