Linkcom Link Door Phone User Manual

Door phone intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Link Door Phone
classe
Number
date
All rights are reserved to Linkcom
classement
page
15/04/05
LinkDoor
DR
001
1/31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Link Door Phone and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linkcom Link Door Phone

Summary of Contents for Linkcom Link Door Phone

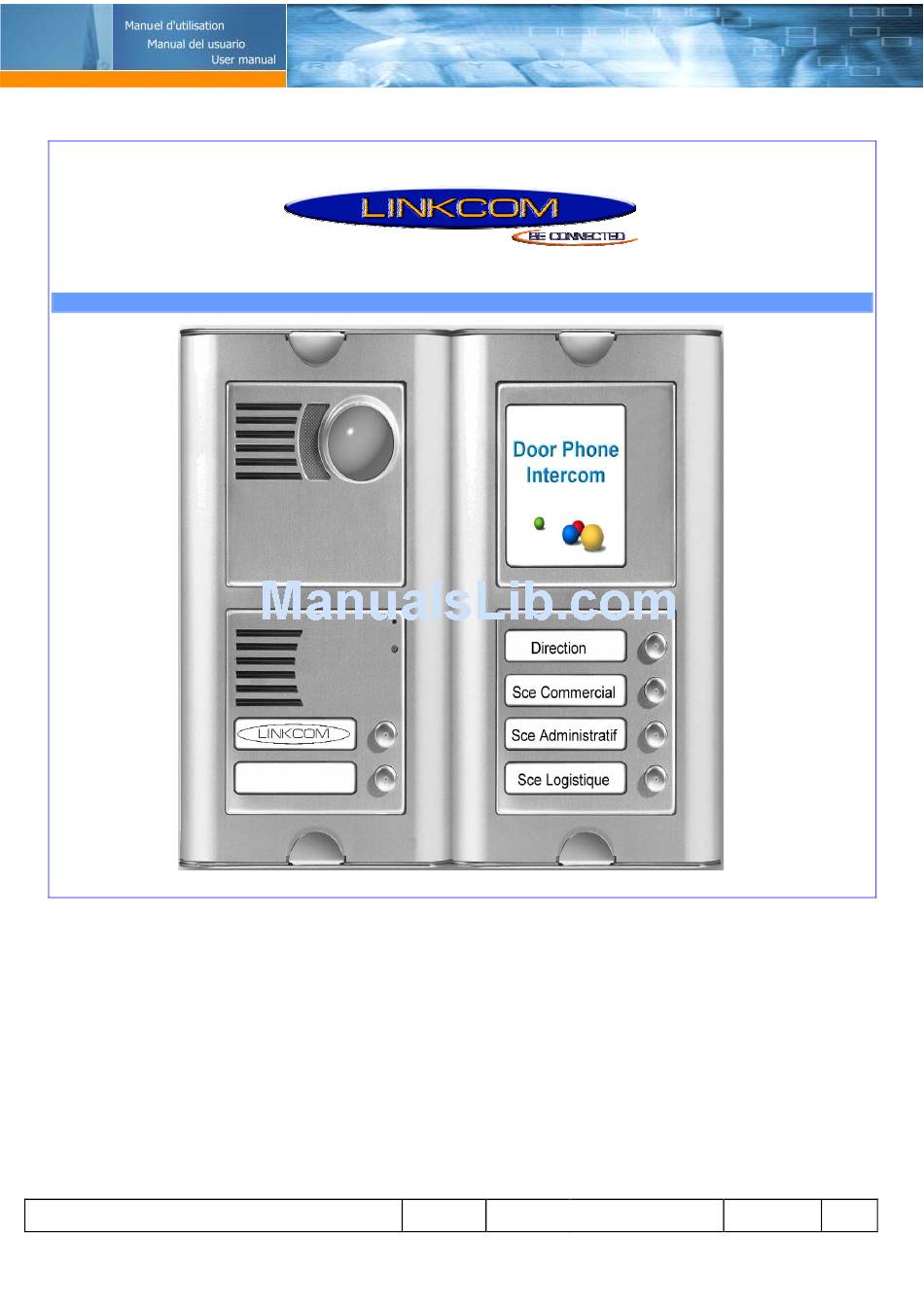

  • Page 1 Link Door Phone classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 1/31...

  • Page 2: Table Of Contents

    List of presseting parameters……………………………………………………………………………… 25 Technical parameters…………………………………………………………………………………………26 Electrical parameters………………………………………………………………………………………… 26 Mechanical parameters……………………………………………………………………………………… 26 Table for Easy Programming……………………………………………………………………………… 27 Dect –LinkBoxGap…………………………………………………………………………………………… 29 LinkBoxGap programming……………………………………………………………………………………30 Guarantee conditions………………………………………………………………………………………… 31 classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 2/31...

  • Page 3: Main Description

    1.1 Features: The LINK DOOR PHONE is a modular system which from a Main module (UCxN) allow to connect IP or IP WiFi camera, KEYPAD ( UCKN) and a maximum of 16 x 4 direct call button modul C4N (MASTER) or M4N...

  • Page 4: Modularity Of The Doorphone

    Modularity of the DOOR PHONE The LINK DOOR PHONE Main Module UCxN is declined in 3 types UC2N, UC1N, UC0N (equiped with 2, 1 or 0 direct call buttons) It is possible to associat to Main module UCxN the following modules...

  • Page 5: Technical Characteristics Of Main Module

    DECT link by using the LINK BOX/GAP module. It is also possible to connect the Main module to PSTN or GSM gateway line 2- << 12 V >> The LINK DOOR PHONE is powered in 12V AC or DC (no polarity required) to insure the following commands...
  • Page 6 10 - <<SERVICE>> Jumper serves to direct access to programming. It can be used, for example by absence of password for programming. Connection diagrams: classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 6/31 LINK DOOR PHONE...

  • Page 7: Uckn Keypad Module

    , with a rain protective cover SMBxN is used, which will include all mechanical parts (MKxx, Canopy xx and Fixing Frame xx). The installation is made by screwing to the wall by means of dowels. See SMB1N on figure. classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 7/31...

  • Page 8: Flush-Mounted Installation

    Nset setting program. 1.4 Signaling Overview The LINK DOOR PHONE sends acoustic signals during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can also listen the signaling samples in Nset program setting.

  • Page 9: Doorphone Without Keypad

    1700… 1.5 Functions: LINK Door phone functions are influenced partly by the modules attached (with keypad or without it) and partly by setting of parameters (see chapter “Parameter Overview”). 1.5.1 Doorphone without Keypad The Doorphone module direct call buttons (U4C and M4N) are provided with nameplates shoing names of department, name of the company or name of the persons inside the building.
  • Page 10 7. Click OK, close the AXIS Setup Tool and disconnect the USB cable. 8. Wait at least 10 seconds for the settings to take effect and then restart the camera ( disconnect a power supply ) classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 10/31...
  • Page 11 6. The Live View page of the camera is displayed, with links to the Setup tools that enable you to customize the camera to your specific needs. classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor...
  • Page 12 4. When the Status indicator displays green (which can take up to 1 minute) the camera is reset to the factory default settings. classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 12/31...

  • Page 13: Programming The Doorphone

    5) Transfer from PC to Door Phone Main module programmed sequences Transfer Status is displayed on your computer If connection is lost, it is necessary to disconnect and connect back KAB cable classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 13/31...

  • Page 14: Description Of Parameters

    Total of 6 passwords can be programmed; they are controlled by Day/Night mode. the combination is entered either by Doorphone Direct call buttons (first 10 buttons) or from attached keypad (after pressing of key symbol). classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 14/31...
  • Page 15 Tone or Pulse v – Dialing mode v = 0 Tone (DTMF) mode, v = 1 Pulse (DC) mode List of related parameters: 1 2 8# 84 classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 15/31...
  • Page 16 List of related parameters: 1 2 32 33 34 47 49 53 8# 84 Parameter Value Meaning Main Exam.1 Exam.2 Keypad Mode classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 16/31 LINK DOOR PHONE – Installation and Operating Instructions...
  • Page 17 – time in [sec] after Doorphone lifting up before dialing [range 1-5]. This time is different for each exchange, but most exchanges usually manage to process dialing up to 2 seconds after line lifting up. List of related parameters: 8# 85 classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 17/31...
  • Page 18 3x Main setting only only 4.. for parameters 4x Main setting only only 5.. for parameters 5x classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 18/31 LINK DOOR PHONE – Installation and Operating Instructions...
  • Page 19 Note: In remote mode the value of this parameter is checked and if not satisfactory form unknown reasons, so it is set up to s = 0 (fitted with 2 buttons). Atention !!! This parameter does not mainally affect the correct function of Doorphone. classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 19/31...

  • Page 20: Programming From Pc-Nset Software

    Note: In remote mode the value of this parameter is checked and if not satisfactory form unknown reasons, so it is set up to s = 0 (fitted with 2 buttons). classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 20/31...
  • Page 21 – Parameter, if p=1 allowed or p=0 prohibited to control the Relay during incoming call. Allow the control of Relays when the call is made from PABX to Door Phone classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 21/31...
  • Page 22 – time in [sec] for which the Doorphone will hang up, before repeated dialing (ex: re-activating direct call button during a call or dialing or after busy tone detection) [range 1-5] classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 22/31...
  • Page 23 Wright inmemory table (01 to 64) a number with max 16 digits Either : 1 number for the Group 1/Day mode And a second number for the 2/Nignt mode classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 23/31...

  • Page 24: Overview Of Parameters

    (100ms) (100ms) (100ms) Duration Flash dial (100ms) (100ms) (100ms) Duration pause / internumber spaces (800ms) (800ms) (800ms) dial Main setting executes Setting per exam. 1 executes classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 24/31...

  • Page 25: List Of Presseting Parameters

    Duration tone DTMF dial 100ms 100ms 100ms Duration tone DTMF dial 100ms 100ms 100ms Duration Flash dial 100ms 100ms 100ms Duration pause / internumber 800ms 800ms 800ms spaces dial classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 25/31...

  • Page 26: Technical Parameters

    151x157x79 241x157x79 331x157x79 421x157x79 KPDxx (on plast.)2col. 241x286x79 421x286x79 Canopy xx 149x151x49 241x151x49 331x151x49 421x151x49 Fixing frame 147x151x3 239x151x3 299x151x3 399x151x3 classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 26/31 LINK DOOR PHONE – Installation and Operating Instructions...

  • Page 27: Table For Easy Programming

    Number under button 11 Night/2gr. Number under button 12 Night/2gr. Relay 1 works in mode m=1 - 4 Relay 2 works in mode m=1 - 5 classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 27/31...
  • Page 28 Duration of dialing tone (n+5)x10 Gap among DTMF tones (n+5)x10 Flash duration nx100 Pause durat. / interdigit nx100 classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 28/31 LINK DOOR PHONE – Installation and Operating Instructions...

  • Page 29: Dect -Linkboxgap

    - base station found - base station not found Tones - dial tone - special dial tone (modulated) - busy tone - confirmation tone - error tone classe Number date classement All rights are reserved to Linkcom page 15/04/05 LinkDoor 29/31...

  • Page 30: Linkboxgap Programming

    Be sure about parameter 40, which is being set after company reset thus that the choice is transmissed not only by Doorphone, but also the base station so that the choice is executed twice!! classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor...

  • Page 31: Guarantee Conditions

    Incorrect use of product caused by other use than specified in operating manual (e.g. installation, programming) • Damages caused during product transport to customer and from supplier Producer: Dealer: Date of sale: classe Number date All rights are reserved to Linkcom classement page 15/04/05 LinkDoor 31/31...
