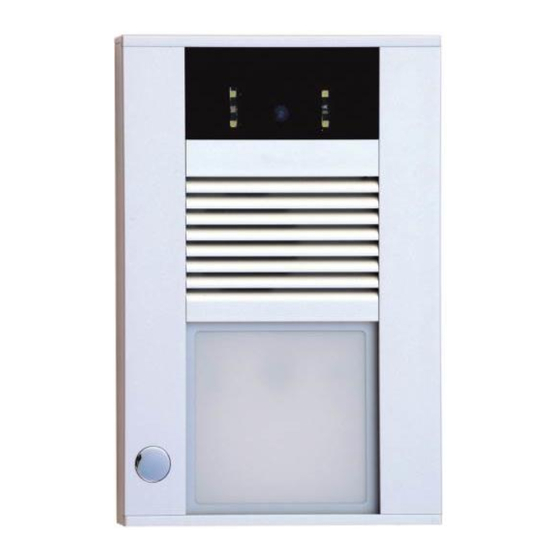

Summary of Contents for Linkcom Slim IP Cam V2

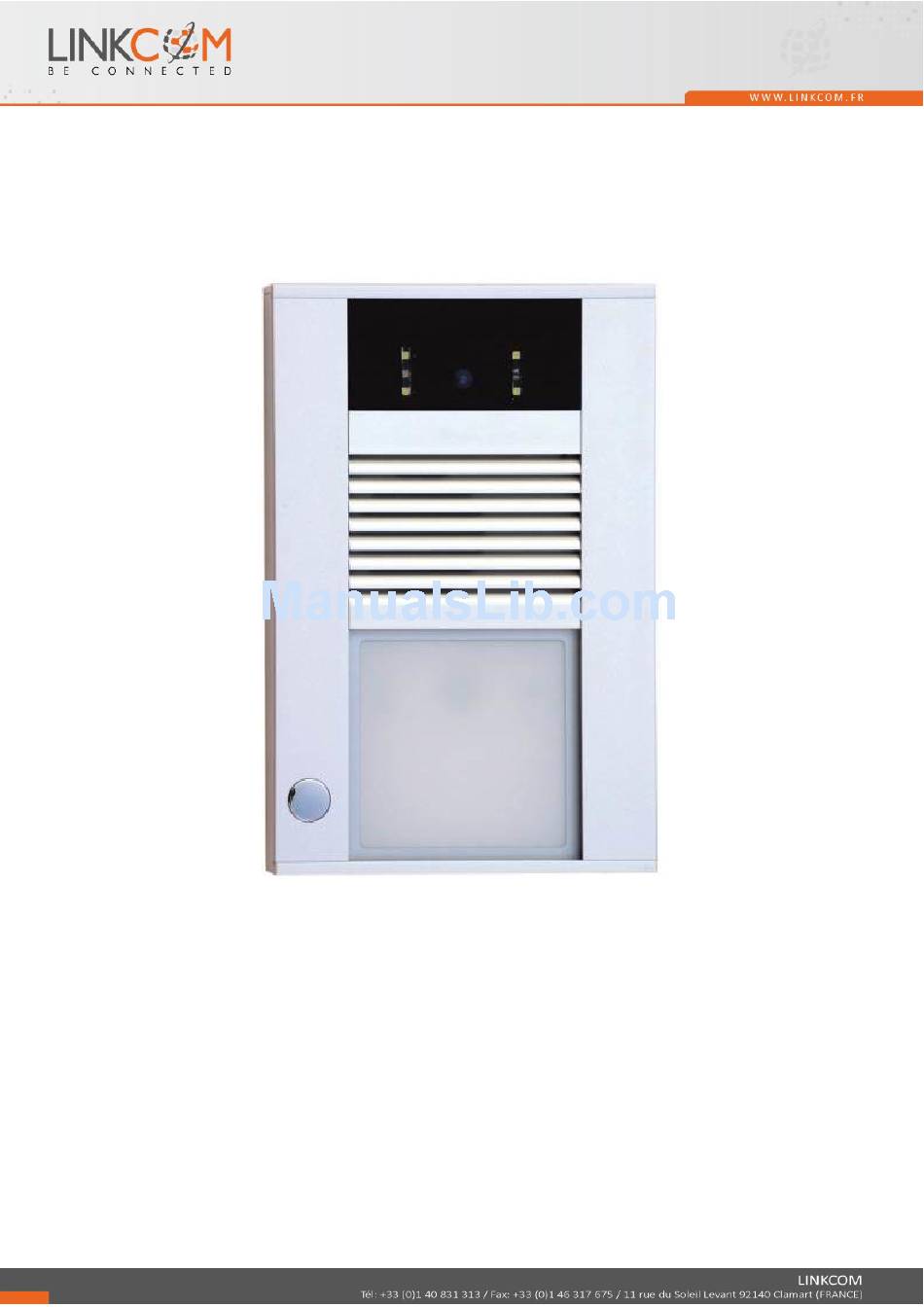

  • Page 1 Slim IP Cam V2 1/80 1/40...

  • Page 2: Table Of Contents

    Index 1. Models..............................4 2. Description ............................5 2.1 Power ............................6 2.2 Relays Connection ........................6 2.3 Physical installation ........................7 2.4 Micro SD card ..........................8 3. Services ............................... 8 3.1 Signaling ............................8 3.2 Call ..............................8 3.3 Code lock .............................
  • Page 3 4.8.5 Logfile ........................... 38 4.8.6 License ..........................39 4.8.7 User acoustic tones ......................40 3/80 3/40...

  • Page 4: Models

    1. Models 1 Button with Cam 2 Buttons with Cam 4 Buttons with Cam 4/80 4/40...

  • Page 5: Description

    4. Second relay 5. MicroSD card slot 6. Input for powering SLIM IP CAM V2 12V AC / DC (consumption cca 300mA max.) We recommend DC power supply 7. Output 12V DC, max. 300mA, for example to power low consumption electrical lock via POE powering of SLIM IP CAM V2 8.

  • Page 6: Power

    2.1 Power The SLIM IP CAM V2 is equipped by circuit for powering via UTP cable – POE. When you use electrical lock for door opening then you have to use PSU for powering door electrical lock (in relays contacts circuit only), or use low consumption electrical lock and for electrical lock powering use output screw “12V output”...

  • Page 7: Physical Installation

    2.3 Physical installation Wall mounting installation Installation place To reach good video quality the camera must not point directly to: Sun lighting Strong light sources Light or strongly reflective walls Installation height Installation height of outdoor video station should be selected according camera scan range (via picture).

  • Page 8: Micro Sd Card

    3. Services 3.1 Signaling The door entry SLIM IP CAM V2 signals acoustically the different stages which occurs during operation. Signaling uses 2 LED colors . Acoustical signaling, for each status mentioned in the table below, might be switched off or might use default tones or “beeping” recorded by the user.
  • Page 9 The calling plan is followed according to the selected option, the default call numbers in order (1- 2 - 3), otherwise you can make calls on several numbers simultaneously and whoever wins the first to provides call management. Both versions of dialing can be combined. For example it is possible to call number 1. and number 2 simultaneously.

  • Page 10: Code Lock

    4. Parameters programming 4.1 After login Before first start of SLIM IP CAM V2 door entry firstly check positions of DIP switch. Each switch should be in positions as shown in the picture below. 1 – On 2 –...
  • Page 11 4.3 Current status 11/80 The display of the device status is in the "Current Status" tab. You will find: - The name of the door phone - The firmware version - The number of buttons - Options (camera, keyboard) - The SD card - The MAC address - The IP address - SIP Mode or P2P...

  • Page 12: Language Settings

    4.4 Language settings 12/80 On the upper right corner is displayed the flag of the language used in the web interface. By clicking on the flag available languages are displayed. After selecting the language, click "Save" so that the language selection be effective. 12/40...
  • Page 13 4.5 IP network setting Network settings you find in menu “Network setting”. Click on Network, then you can select the use of a fix IP address or a dynamically assigned IP address (DHCP mode). 13/80 After performing the required changes please don’t forget to click on “Save and restart”. DHCP : Enable / Disable DHCP configuration In manual configuration, configure : IP adress, Network mask: IP adress setting, mask.

  • Page 14: Sip Setting

    Slim IP Cam V2 input with a fixed IP address. 4.5.1 SIP setting The Door Phone IP Cam Slim V2 operates in two basic modes. In SIP server mode : Recording the gate input is made to the SIP server, and then you call the telephone numbers assigned by the SIP server;...
  • Page 15 Account / Auth.ID: name for SIP server registration. assword: password for SIP server registration. Send registration: when registration is necessary (this will be the case most of the time) then this parameter must be used. Registration server: IP address or server name of registration server (in most systems and installations is enough to insert IP address).

  • Page 16: Web Server

    4.5.2 WEB server 16/80 WEB interface TCP port: possibility to change usual TCP port 80 to other (security reasons). Service password / Retype password: insert of new access password (default password is 1234) – length max.40 characters. Video on start page: Video ON/OFF on home page of WEB interface (mainly from security reasons. When video is OFF it is accessible after login with password only).

  • Page 17: Basic Settings

    4.6 Basic settings 4.6.1 Phonebook 17/80 Title: This text has informative character only. In case help displayed, will be shown in the selection list name. Email: to this email will be sent Info about missed calls with picture or video or with records (in case recorder is activated).

  • Page 18: Relays

    Calling: allows creation of groups. 2. Phone number: is phone number which is dialledl as second (when progressive dial mode is used). 2nd phone number will be dialed with compliance to selected time plan and when is filled only. Timetable: when is not selected, then 2 numbers are always active. Usage of 2nd phone number might be limited by time plan Calling: allows create groups 3.
  • Page 19 19/80 In relays setting are accessible 4 relays. Enable: relay function might be eliminated. Due this will be eliminated synchronization signal for other relays. Meaning is for example when you want temporarily prevent certain door opening. Then instead of all codes cancellation and their repeated programming simply prohibit this relay. After time out you can easily return relay with all codes to original function.
  • Page 20 Delay time: is time, between closing code evaluation and relay closing. It has no influence for open code which is performed immediately. Closing time is calculated from real relay closing. Source relay 1 – 4 : relay closing starts closing of the same or other relay. Synchronization delay: time between synchronization start and its evaluation.

  • Page 21: Sensors

    4.6.3 Sensors 21/80 21/40...

  • Page 22: Snmp

    4.6.4 SNMP SNMP (Simple Network Management Protocol) 22/80 Community: here is necessary to select exact user of SNMP Admin address: setup IP address or domain name of client where are sent information according defined setting Variable MIB: is designed for identification of none sense numeral chain OID is numeral identification which definitely identify every value in SNMP communication.

  • Page 23: Timetable

    4.6.5 Timetable 23/80 Timetable name: for easy orientation you can named every profile. Period setting table: profile is active when current time match with setup periods. Every day might have up to 3 active periods. Further is possible deactivate whole day (first item on the row select “Active”...

  • Page 24: Date And Time Setting

    Network time server: IP address or domain name of NTP server. When you don’t know then by inserting * Slim IP Cam V2 find NTP server automatically according own selection. Condition is setup in network setting start gate and DNS.

  • Page 25: E-Mail

    4.6.8 E-mail When you want to inform subscriber about missed calls from door entry you can setup Slim IP Cam V2 to send out email after every missed call. You can setup own subject and text of email. When you have door entry with camera you can automatically add to email one or more pictures from camera.
  • Page 26 SMTP password: password for registration to SMTP server. Message from: sender e-mail mentioned in sent email. Default message to: door entry send emails to address mentioned in phone book at appropriate subscriber. When you let this field empty then email is sent to default email which you setup in this field.

  • Page 27: Extended Settings

    4.7 Extended settings 4.7.1 DoorPhone 27/80 Ringing timeout: time ringing. Maximum call duration: when call is picked up timer for call duration limit is activated. When you insert empty, then there is no limit. The 10sec before call end you hear tone after which you can dial character for call prolongation and by this prolong the call about same time period.
  • Page 28 Ringing cycles count: this option enable call repeating (or progressive call). In phone book is for example filled first and second phone number and not create group. When come condition for first number… ringing time is out phone number is busy Subscriber is not reachable / registrated in network (then second number is dialed.

  • Page 29: Audio And Codecs Settings

    4.7.2 Audio and codecs settings 29/80 The default values for the adjustment of the echo are usually sufficient for most cases. 29/40...
  • Page 30 30/80 Codec Audio: Select the priority of audio codecs for SIP calls, the codecs available are: G.711u G.711a G.722 G.726-32bit 30/40...

  • Page 31: Video And Video Codecs Settings

    4.7.3 Video and video codecs settings 31/80 Image size: image size selection Image number per second: this setting concern mainly image transmission to WEB browser. Further setting: is standard image parameters setting and reset is immediately visible in Windows screen. 31/40...
  • Page 32 32/80 Priority: setting of codecs priority for usage. Compatibility: With some of VOIP phones manufactures you have to use in certain cases extra setting: Yealink – phones Yealink SNOM – it is script sending for showing JPEG video. It is unique for SNOM phones 32/40...

  • Page 33: Streaming

    4.7.4 Streaming 33/80 Enable / disable to provide video (in H264) by the doorphone with protocol RTSP on port 554. To receive such video you need some standard stream video players (IP TV or for example Grandstream, MPlayer, VLC, etc…). This video running permanently. It’s not depending on calls. Permitted IP address: when is not filled up then video might be watch by anybody.

  • Page 34: Service

    Multicast address: by inserting IP address you allow sending RTP packets to selected multicasting address. JPEG image quality: you insert percentage of video coding quality 4.8 Service 4.8.1 Restart 34/80 34/40...

  • Page 35: Configuration

    4.8.2 Configuration 35/80 Save configuration: after click on “Make” button will be offered the place you can save the file Load configuration: by click to empty button will allow to restore a saved configuration. Further is necessary select if phone book, network setting, SIP and other parameters have to be loaded. By clicking on “Make”...

  • Page 36: Style And Language

    Default others: all remaining parameters set to factory By click on “Make” required settings will be done /erasing door entry parameters. 4.8.3 Style and language 36/80 Load Style file: by click to empty button select the file and by click on “Make” style file (symbols and colors setting) is loaded.

  • Page 37: Firmware Upgrade

    Load language file: by clicking on empty button select the file and by click on “Make” new language file is loaded. Save language file: after click on “Make” button will be performed language file export of just selected language 4.8.4 Firmware upgrade 37/80 Choose firmware file: Select the firmware version and "Save".

  • Page 38: Logfile

    4.8.5 Logfile 38/80 Start enhanced log: used to start or stop logs. Download log file: Download debug log. Show call log: Displays real-time recordings of SIP logs. Show call log: Displays in real time all VoIP logs. 38/40...

  • Page 39: License

    4.8.6 License 39/80 This page allows extend door entry features regarding payable functions via licenses. For example for audio codec G729. After payment you’ll receive license number by email License validity shows if license is working correctly. The license code is connected to serial number of door entry.

  • Page 40: User Acoustic Tones

    4.8.7 User acoustic tones This page is designed for recording own (user) sounds signaling. By clicking on “Play“ will be played currently active sound file (selection is performed on page “Audio setting“ sound of relay closing on page “Relays“). Audio files: WAV – 8Kbit – mono – 16bit PCM 40/80 40/40...
