Fig. 2 Examples of Relay connections

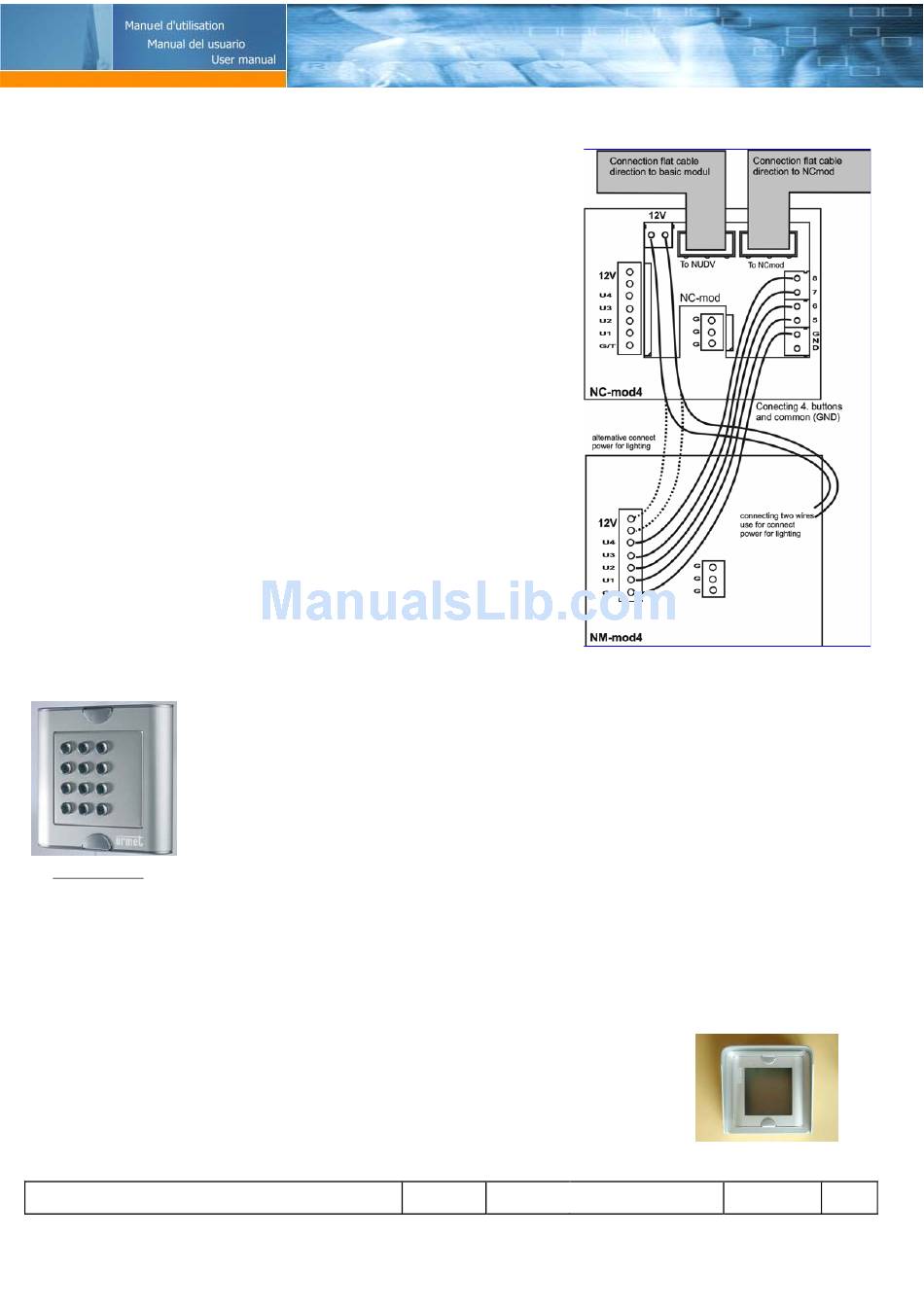

1.1.1 Extending Module with C4N(master), M4N(slave) Buttons
This module is supplied in two designs. The C4N (Master) module
has four buttons and includes the electronics to be connected to the Main
module or to previous M4N (Slave) module.
This module is only connected by flat cable – buttons and lighting
through is already interconnected.
M4N (Slave) module is alwaise connected behing C4N (Master)
module. The connection is not prepared and should be done by conductors
see on figure 3.
M4N (Slave) module made of mechanical part and LEDs
C4N (Master) module insure to M4N (Slave) module the electrical
and commandes features

1.1.2 UCKN Keypad Module

difference is that keypad module is always the last in row (no other module can be connected
behind it) and it can be only linked to the first (directly to the Main module) or the second (to output
of the first C4N) positions. It means that 0 to 10 buttons with direct dialing can be used instead of
keypad (per assembly). The most frequent used assemblies are:
Pay attention when programming – the position of keypad connected must be correctly specified (parameter 48).
The choice is entered by gradual pressing of buttons with digits. Firstly the key symbol must be pressed to enter
a password. When pressing X, the Doorphone will hang up.
1.1.3 Other modules
Other modules extending the Doorphone assembly are available as Camera IP or IP WiFi.

1.2 Doorphone Assembly

1.2.1 Surface mounting :
By installation on plaster only the surface mount
box , with a rain protective cover SMBxN is used, which will include all mechanical
parts (MKxx, Canopy xx and Fixing Frame xx). The installation is made by screwing
to the wall by means of dowels. See SMB1N on figure.
All rights are reserved to Linkcom
The keypad module is only connected by flat cable as well as C4N module. The only
UCxN + UCKN
UCxN + C4N + UCKN
UCxN + C4N + M4N + UCKN
classe
classement
LinkDoor
DR
Number
date
15/04/05
001
page
7/31
