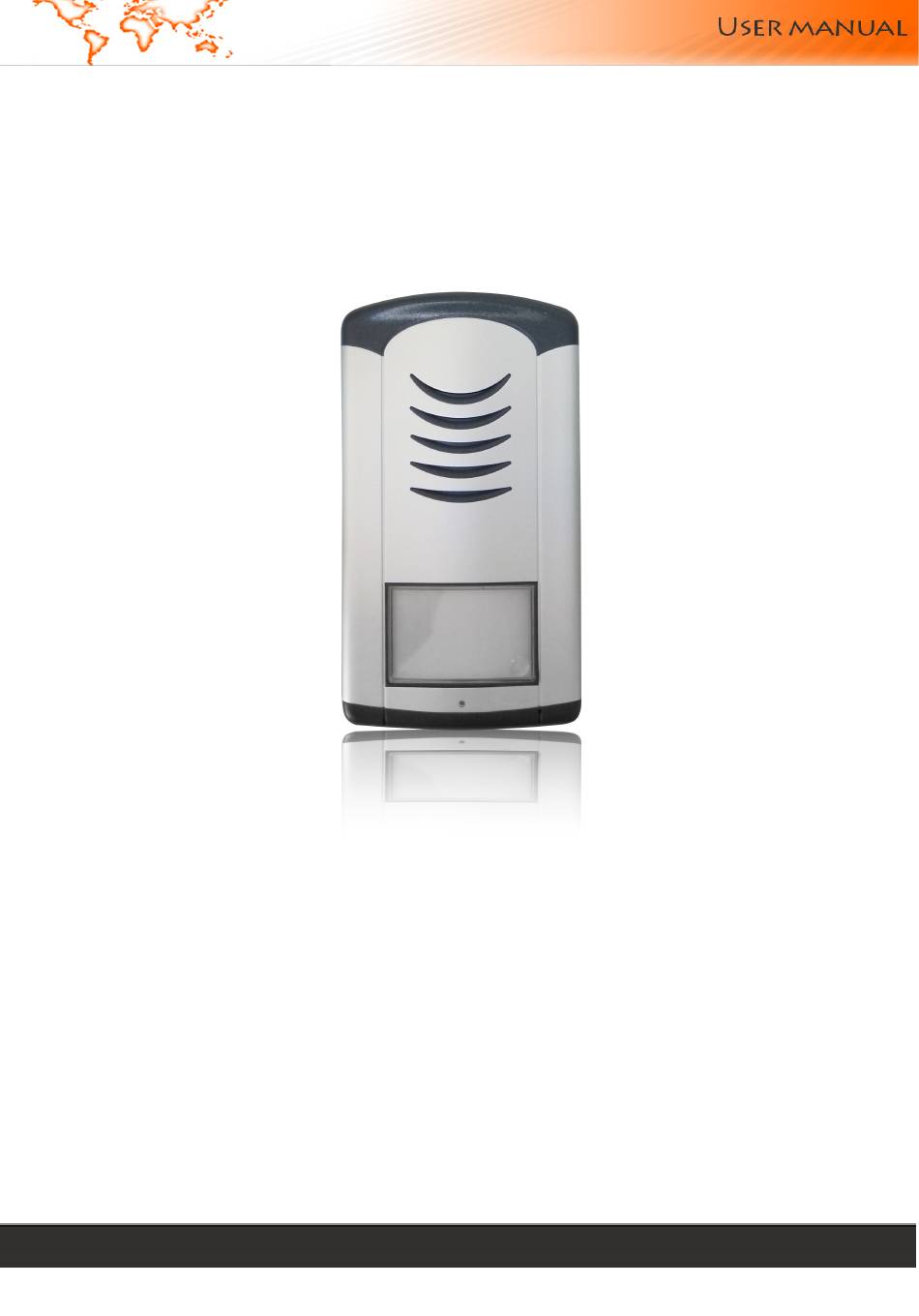

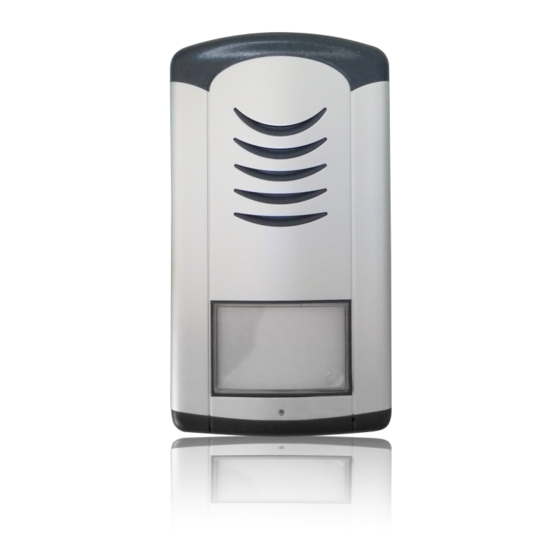

Link GSM Door Phone
Manual
v1.0
Please find the latest version of the manual and firmware at www.linkcom.fr
1
WebHill.fi
Linkcom France
11 rue du Soleil Levant 92140 CLAMART
Copyright © 2009 – Linkcom – All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorPhone and is the answer not in the manual?

Questions and answers

Related Manuals for Linkcom DoorPhone

Summary of Contents for Linkcom DoorPhone

  • Page 1 Link GSM Door Phone Manual v1.0 Please find the latest version of the manual and firmware at www.linkcom.fr WebHill.fi Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2009 – Linkcom – All rights reserved...

  • Page 2: Table Of Contents

    7.   L ED   s ignaling   ................................   24   8.   E lectrical   p arameters   ............................   24   WebHill.fi Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2009 – Linkcom – All rights reserved...

  • Page 3: Basic Features

    SMS. The authorized number must be registered on the SIM card. 4. Camera mode – The selected relay is ON when the GSM DoorPhone picking up the call and it is OFF by hang up up the call.

  • Page 4: Installation

    Voice signaling of different status. The different status is signaled by voice message. (Language adjustable). When the voice is presented during a call, it is hearable on DoorPhone and called part. 2. Installation 2.1. Assembly of front panel Open and close the cover: Dismounting lighting of nameplate: 2.2.
  • Page 5 Return lighting nameplate after mounting on the wall. Each button has its separate nameplate hold by means of plastic flag (see figure). Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 6: Schema And Connection

    For operation put to the SIM position ON Setting of speaker loudness Speaker screw terminal input Relay 2 Relay 1 Power supply Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 7: Relays Connection

    Basic connection – 2 electrical locks and possibility control 2 doors. 2x PSU – possibility to use 2x independent power supply. One for GSM DoorPhone and second for electrical locks. The electrical lock 2 is connected inversely (fire emergency doors).
  • Page 8 Note: All programmed parameters are saved on the SIM card. The SIM you can insert into GSM DoorPhone already preprogrammed or setup GSM DoorPhone after switching ON (bellow). When you want use calls rejection ( ringing), ask your GSM provider to switch OFF voice mail at used SIM card.

  • Page 9: Sim Preprogramming

    The red LED lights on and after a while yellow LED start flashing. The GSM DoorPhone informed by tones or by voice SIM reading, GSM network registration and ready for operation. Now you can put on front panel of GSM DoorPhone but don’t screw it.

  • Page 10: Setting By Pc Through Usb Via Link Gsmdoormanager (Optional)

    If the SIM card already contents even one number under name “ADMINx”, the command is ignored. 2. If you need to control the GSM DoorPhone with a next ADMIN numbers: from mobile phone with “ADMINx” number, send the SMS to the GSM DoorPhone with numbers of next “ADMINx” in SMS format: WRITE ADMIN2 +33xxxxxxxxx (WRITE ADMIN3…...

  • Page 11: Monitor Mode

    DoorPhone operation (when operation is not stopped by button STOP) Record savings from monitor to file (for service purposes – record sending) Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 12: Programming Mode

    4.2.2. Programming mode After press the “Stop” button, The program sends the command to GSM DoorPhone and wait for the DoorPhone response. Waiting for GSM DoorPhone response Item Buttons It is designed for programming phone numbers under each buttons Item for 1 button...
  • Page 13 - pick up all calls Signalization - Informing by tones - Ringing during incoming call - Voice signalling Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...
  • Page 14 - sending SMS Sending SMS to ADMIN1 with list of numbers which activated relay by ringing. Activation of time settings from GSM network Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...
  • Page 15 This Item is designed to upgrade the firmware version or change the voice message on the GSM DoorPhone. CAUTION: Unauthorized manipulation can blocked the unit List of files to record to GSM DoorPhone Loading of list from PC List erasing Start of files saving on GSM DoorPhone.

  • Page 16: Table Of Sms Commands

    Program detects the GSM DoorPhone runs the same way like stop: When you click on Run button, the behavior of GSM DoorPhone is the same like during power supply connection (tones, eventually voice messages). 5. Table of SMS commands...
  • Page 17 Relay2 activation time after ringing in or by code yy seconds yy=00-99 WRITE PAR RL2RING:x Relay2 activation by ringing in x=0 : OFF Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 18: Command Types

    CAL – after command CAL, you can put any « AT command » used by the GSM module (for example: module reset, time setting etc.). Those commands please use with appropriate knowledge only! It can cause blocking of whole unit! Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 19: Names Function Saved In Phone Book

    BBUTTON3 is busy, unreachable, or not picked up. - Relay1 or relay2 are activated by ringing in - Calls are automatically received from this number Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...
  • Page 20 ADMIN2 to ADMIN7 - Relay1 or relay2 are activated by ringing in. - Relay1 or relay2 are by SMS - Read the GSM DoorPhone status and numbers in phone book by SMS - Edit name and numbers on SIM card by SMS...
  • Page 21 Names ABUTONx, BBUTONx, ADMINx, ALARMON, ALARMOFF, PARGDI, PARRL1, PARRL2 must be written by big letters. Between names and numbers is not a space. Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...

  • Page 22: Example Of Sms Exchange

    5.3. Example of SMS exchange : GSM DoorPhone response for SMS « READ STAT » : READ STATUS: VER: 101 BATTERY:4030mV TIME: "00/01/01,00:01:55" OPER: T-Mobile CZ INP:1 RL1:0 RL1:0 GSM DoorPhone for SMS « READ PAR » : READ PAR:...

  • Page 23: Gsm Doorphone Tones

    High tone follow by medium level High tone follow by medium level tones in period tones in period cca 5 sec. cca 5 sec. start a initialization of doorphone ƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒƒ start a initialization of GDI (registration to network, SIM re (registration to network, SIM reading, etc..)

  • Page 24: Led Signaling

    1 to 99 sec Activation time by SMS 1 to 99 min Input: 0/5V GSM: networks 850/900/1800/1900 MHz 3V, 1.8V WebHill.fi -Verkkokauppa Linkcom France 11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved...
