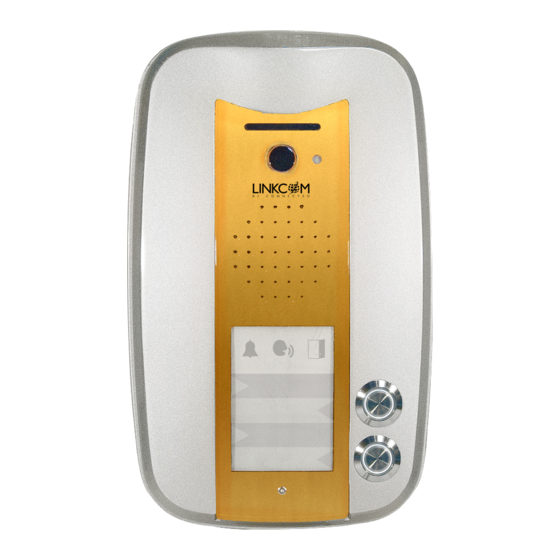

- Page 1 Link Ana iDP Manual v1.0 Please find the latest version of the manual and firmware at www.linkcom.fr...
-
Page 2: Table Of Contents
3.1. Dimension ....................................4 3.2. Surface mounting ................................. 5 3.3. Flush mounting ..................................5 3.4 Connection ....................................6 4. Link Ana iDP Service ............................... 7 4.1. Signaling overview ................................7 4.2. Visitor at the door ................................8 4.3. Relays mode control ................................8 4.4. -
Page 3: Pcb Schematics
1. Basic Description 1.1. PCB Schematics USB cable connector Analog line Speaker Relay 1 Relay 2 12V Power supply Out button Handicapped norm LED Mini Dip Switch Button 2 Button 4 backlight label LED Button1 Button 3 DIP switch description Service, usage –... -
Page 4: Physical Install
Handicapped norm LED : indicate the status of doorphone : Green LED : Ringing. • • Blue LED : In call Red LED : Door opening • 2. Physical install 2.1. Opening the door phone Using the tool provided, unscrew the screw, as shown below and remove the cover: 2.2. -
Page 5: Surface Mounting
3.2. Surface mounting Using 3 screws and plugs, fix the doorphone to the wall: 3.3. Flush mounting The dimensions of the flush part are: Height: 182mm • Width: 104mm • Depth: 22mm • Using 3 screws and plugs, fix the doorphone to the wall: p.5 | 23... -
Page 6: Connection
Link Ana iDP is set in several codes to activate the relay code. Relay can be activated codes for one or two impulses can differentiate activated from the phone (DTMF) or from keys (keyboard). The last option is the activation code in another mode switch than the lock. -
Page 7: Link Ana Idp Service
4. Link Ana iDP Service 4.1. Signaling overview The Link Ana iDP signaling acoustically stages which are happening during operation. Samples of acoustical sounds you can play in Link Ana Manager. Tone Stage Tones frequency Line pick up (OFF HOOK) type 1 980-1333-1650 –▄■▄■▀–... -
Page 8: Visitor At The Door
4.2. Visitor at the door When the visitor finds the desired name and push it, the Link Ana iDP pick up the line and play the tone line pick up (when is not switch off by parameter 62) and calls the phone number saved under the button (parameter 1). - Page 9 mode m = 1 (Parameter 3111 and 3121) Action Note Parameter Relay Evaluation of correct 3211-3215 external code from According settings 3311-3315 buttons DAY/NIGHT 3411-3415 3221-3225 According settings 3321-3325 DAY/NIGHT 3421-3425 321* According settings 331* DAY/NIGHT 341* 322* According settings 332* DAY/NIGHT 342*...
-
Page 10: Telephone Caller
– time between pulses 1 of relay (Parameter 302) 4.4. Telephone Caller A Telephone Caller is a person that is in phone connection with Link Ana iDP. 4.4.1. Outgoing call An “outgoing” call is a call from the unit (i.e. when a visitor presses a button). Once the visitor has pressed a button a telephone will ring. -
Page 11: Pc Programming - "Link Analog Manager" Software
To setup the unit from a PC you will require a special USB tool cable, available separately, and must first install the USB driver and software. Refer to the www.linkcom.fr for more details. The unit must also be connected to the telephone line. -
Page 12: Parameter Description
Default settings doesn’t erase as same as changed those saved numbers. Note: The switchover to Day/Night mode remains set in the unit even after line disconnection. For the Link Ana iDP, tt is always 01 6.2. Relay Parameter Value Description... - Page 13 DAY/NIGHT mode settings - if switching (DIP 3,4)+par.64. Version allows copying manual DAY/NIGHT switching only. The Link Ana iDP allows copying setting from week table switching time (when is activated - Parameter 084) and then you can use for example for heating control etc…...
- Page 14 – turns on transmission serial code to activate the first switch. CAUTION - at activation this function never connects to the circuit electric lock without board COSW - code relay - threatens to destroy the relay in Link Ana iDP communicator! p.14 | 23...
-
Page 15: Basic Parameters
Description Default Activation code 1 pulse from buttons abcd 0000 (0000-1111) abcd – Link Ana iDP sends a serial code for the code relay (COSW) after evaluation code from keys (keyboard) namely for 1 pulse Parameter Value Description Default Activation code 1 pulse from phone... -
Page 16: Time Parameters
Description Default g bb End call (00-99,*0-*9) g – command order [1-2] (they are two to be possibility hang up the Link Ana iDP when each relay is used) bb – command to and call by phone [2 digits] It is profitable setup the same command to hang up the Link Ana iDP as same as activate relay (Parameter 35) Note: The command has always 2 digits but if you want use 1 digit then you have possibility insert "*a"... - Page 17 D – Maximum time in minutes for which a call may last. This time can be extended during a call by dialing Prolong Call digit from telephone (∗ or #). Time setting is per table. Parameter Value Description Default Time between button push (1-9) w –...
- Page 18 Parameter Value Description Default Time of tone duration DTMF (tone) dial 10 (100ms) (04-16) Time of space duration between DTMF 10 (100ms) tone (04-16) Time of Flash duration (1-6) 1 (100ms) Time of pause duration / pause between 4 (800ms) numbers (1-0) tt –...
-
Page 19: System Parameters
6.5. System parameters Parameter Value Description Default Acoustic signaling (confirmation, error, empty (0/1) memory, call termination...) In default the stages of door intercom are acoustically signalling. z=0 – signaling is off z=1 – signaling is on Parameter Value Description Default Acoustic signaling off hook/on hook (0/1) In default is signaling pick up and hang up of the line. -
Page 20: Handsfree Parameteres Setting
Parameter Value Description Default BabyCall – call without necessity program phone number (0/1) By activation this feature (b=1) is cancelled acoustic signaling of empty memory. After pushing of button with empty memory you get just beep (confirmation) and call is established as normal dialed number Caution: first 10sec of call is not active tone detector (it waits on reaction of PBX and number dialing by PBX) Paramet... - Page 21 (0/1/2) The Link Ana iDP includes circuit for long distance installations (100m and more from PBX) that can compensate losses on wiring. You can setup in two levels depending on line current of PBX (short circuit current I...
-
Page 22: Time Programm - Automatic Day/Night Switching
(0/1/#) When door intercom Link Ana iDP includes RTC circuit. You can activate automatically switching from real time a=1. The condition is correct time settings. You can verify it easily by dialing a=# and door intercom reply either by confirmation tone (all is correct) or error tone (you have to setup the time). -
Page 23: Default Setting And Erasing
6.8. Default setting and erasing Parameter Value Description Default Default setting This setting does not influence 1 and 2 (numbers stored in memory) Parameter Value Description Default Deletes all numbers in group 1 (Day mode) Deletes all numbers in group 2 (Night mode) Default settings only for parameters 3x Default settings only for parameters 4x... -
Page 24: Technical Parameters
7. Technical parameters Parameters Value Conditions Minimal line current 18mA Line OFF HOOK Minimal line voltage Line ON HOOK Line voltage during OFF < 8V I = 20mA HOOK (VA characteristic) < 12V I = 60 mA Downlead during ON HOOK <...
