WIRELESS:
The gateway LINK GATE A allow connecting the Door Phone to a GSM operator.
The LINK BOX/GAP module allow connecting the Door Phone wirelessly to PBX Extension or PSTN line.
LINK GATE A
Technical caracteristic of Main Module

UCxN Main Module

The LINK Door Phone Main Module is supplied in three variants – with two buttons UC2N, one button UC1N
and without buttons UC0N.

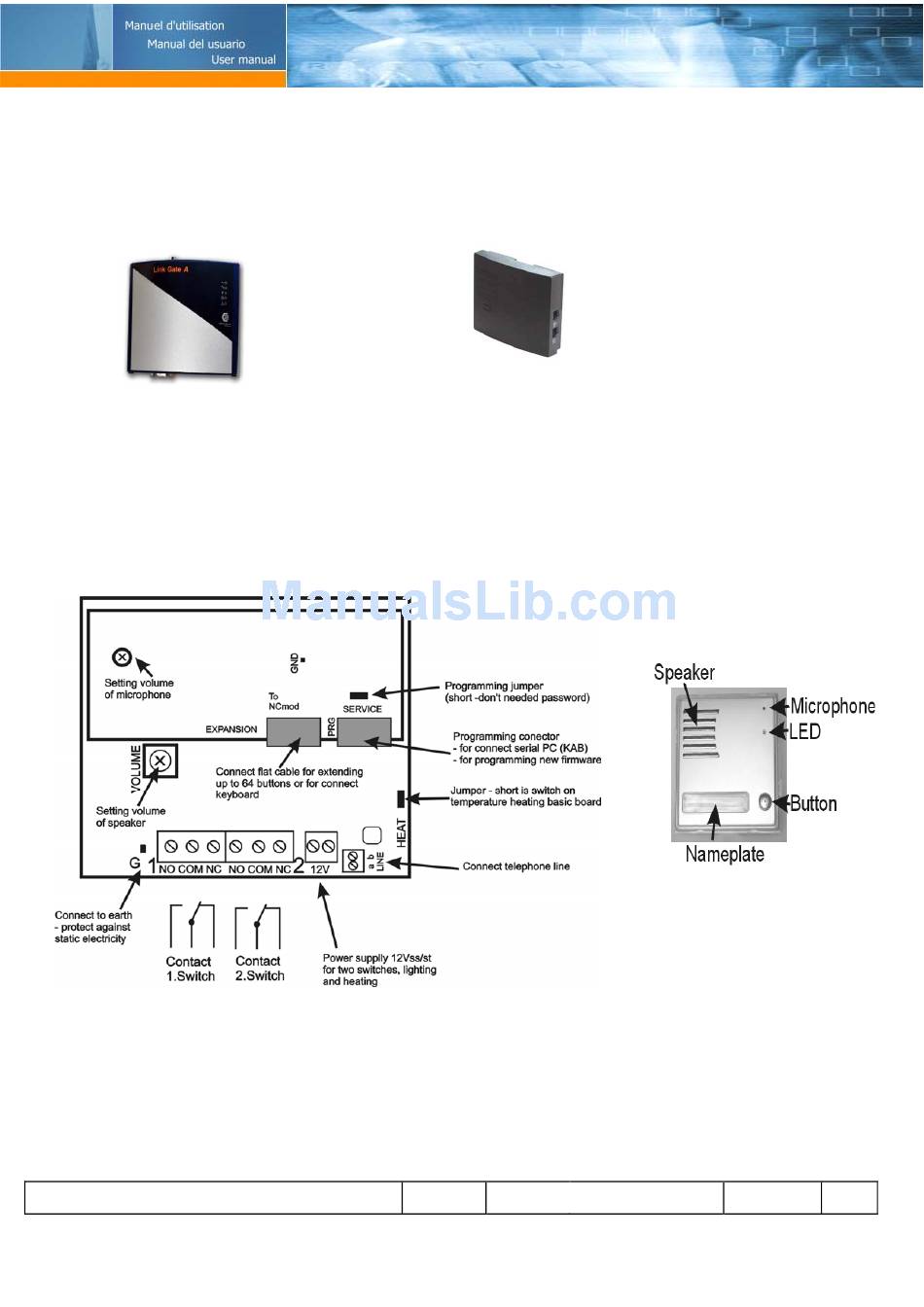

Fig. 1 Rear view of Main module
Connection
1- << LINE a b >> Allow the Main module connection to PABX Extention through wired link or through
DECT link by using the LINK BOX/GAP module.
It is also possible to connect the Main module to PSTN or GSM gateway line
2- << 12 V >> The LINK DOOR PHONE is powered in 12V AC or DC (no polarity required) to insure the
following commands
- Lighting and powering all connected modules
As : IP / IP Wifi Camera / Keypad UCKN / Direct call buttons U4N and M4N
All rights are reserved to Linkcom
LINK BOX GAP
classe
classement
LinkDoor
DR
Fig. 2 Front view of Main module
Number
date
15/04/05
001
page
5/31
