Fuel Injection
CAUTION-
Be sure ignition is OFF before disconnecting or reconnecting
DME system components.

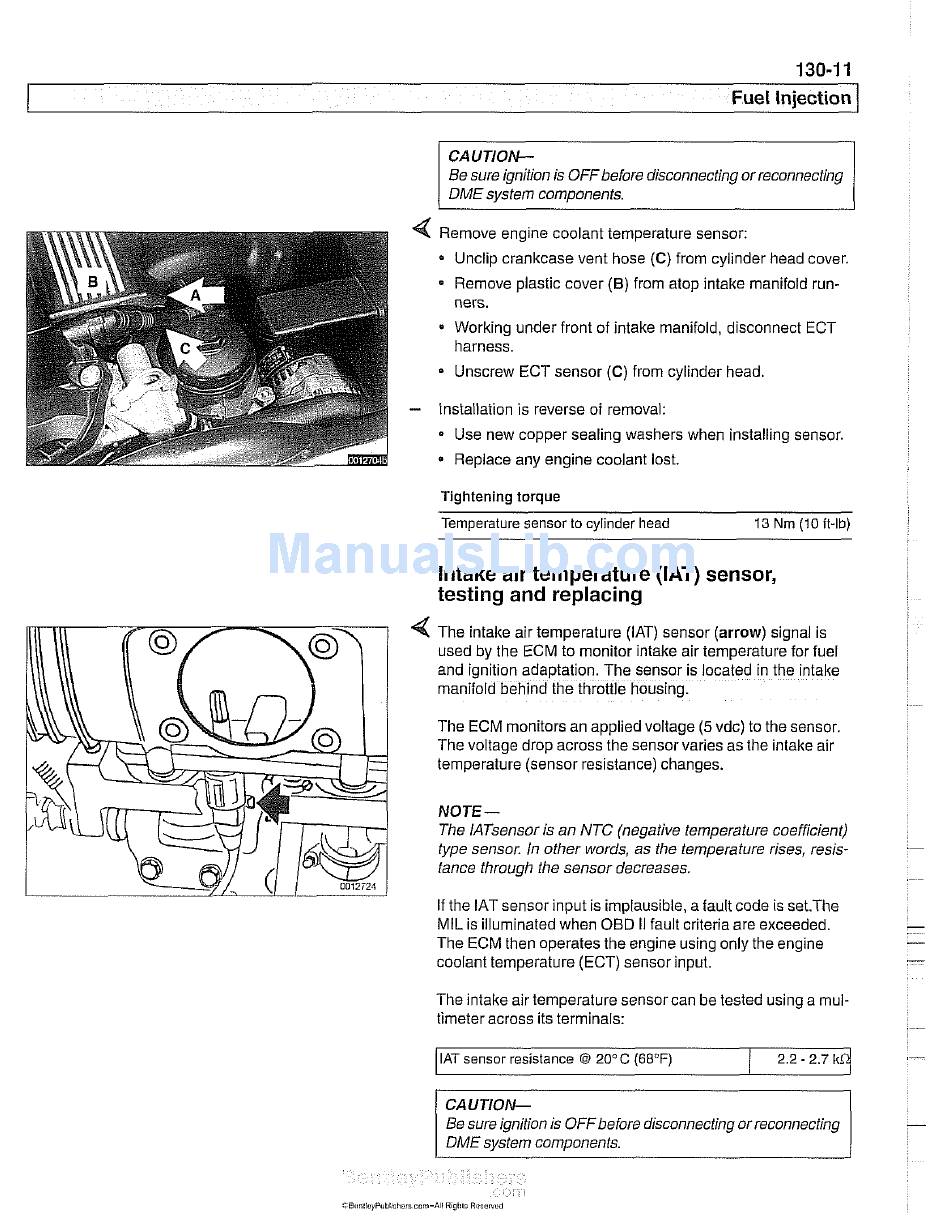

Remove engine coolant temperature sensor:
Unclip crankcase vent hose ( C ) from cylinder head cover.
Remove plastic cover (6) from atop intake manifold run-
ners.
Working under front of intake manifold, disconnect ECT
harness.
Unscrew ECT sensor (C) from cylinder head.
Installation is reverse of removal:
Use new copper sealing washers when installing sensor.
Replace any engine coolant lost.
Tightening torque
Temperature sensor to cylinder head
13
Nm
(10
it-lb)
Intake air temperature
([AT)
sensor,
testing and replacing
4
The intake air temperature (IAT) sensor (arrow) signal is
used by the ECM to monitor intake air temperature for fuel
and igntion adaptation. The sensor is .ocared in rne 'ntane
man:lold behind the throttle housng.
The ECM monitors an applied voltage (5 vdc) to the sensor
The voltage drop across the sensor varies as the intake air
temperature (sensor resistance) changes.
NOJE-
The IATsensor is an NTC (negative temperature coefficient)
type sensor. In other words, as the temperature rises, resis-
tance through the sensor decreases.
If the IAT sensor input is implausible, a fault code is set.The
MIL is illuminated when OED II fault criteria are exceeded.
The ECM then operates the engine using only the engine
coolant temperature (ECT) sensor input.
The intake air temperature sensor can be tested using a mul-
timeter across its terminals:
/
IAT sensor resistance
@
20"
C (68°F)
/
2.2
-
2.7 l k Ck
~
--
~~
-
CAUTION--
Be sure ignition is OFFbefore disconnecting or reconnecting
DME system components.
