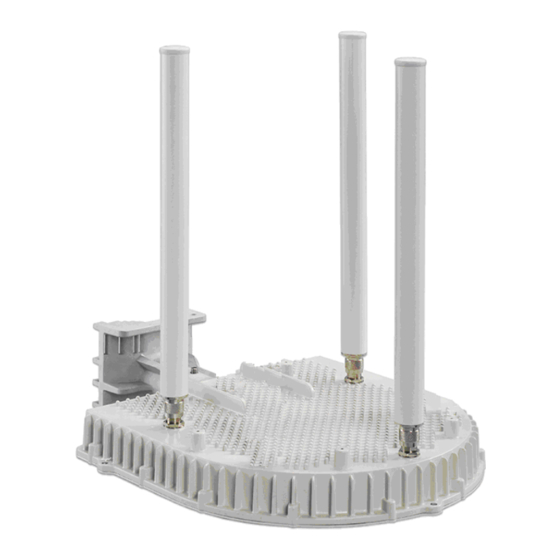

Wavion WBS-2400 User Manual
  1. Manuals
  2. Brands
  3. Wavion Manuals
  4. Network Router
  5. WBS-2400 SCT 120
  6. User manual

Wavion WBS-2400 User Manual

Wireless networks
Hide thumbs Also See for WBS-2400:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
WBS-2400 and WBS-2400-SCT
User Manual
SW version 4.0
March 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBS-2400 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavion WBS-2400

Summary of Contents for Wavion WBS-2400

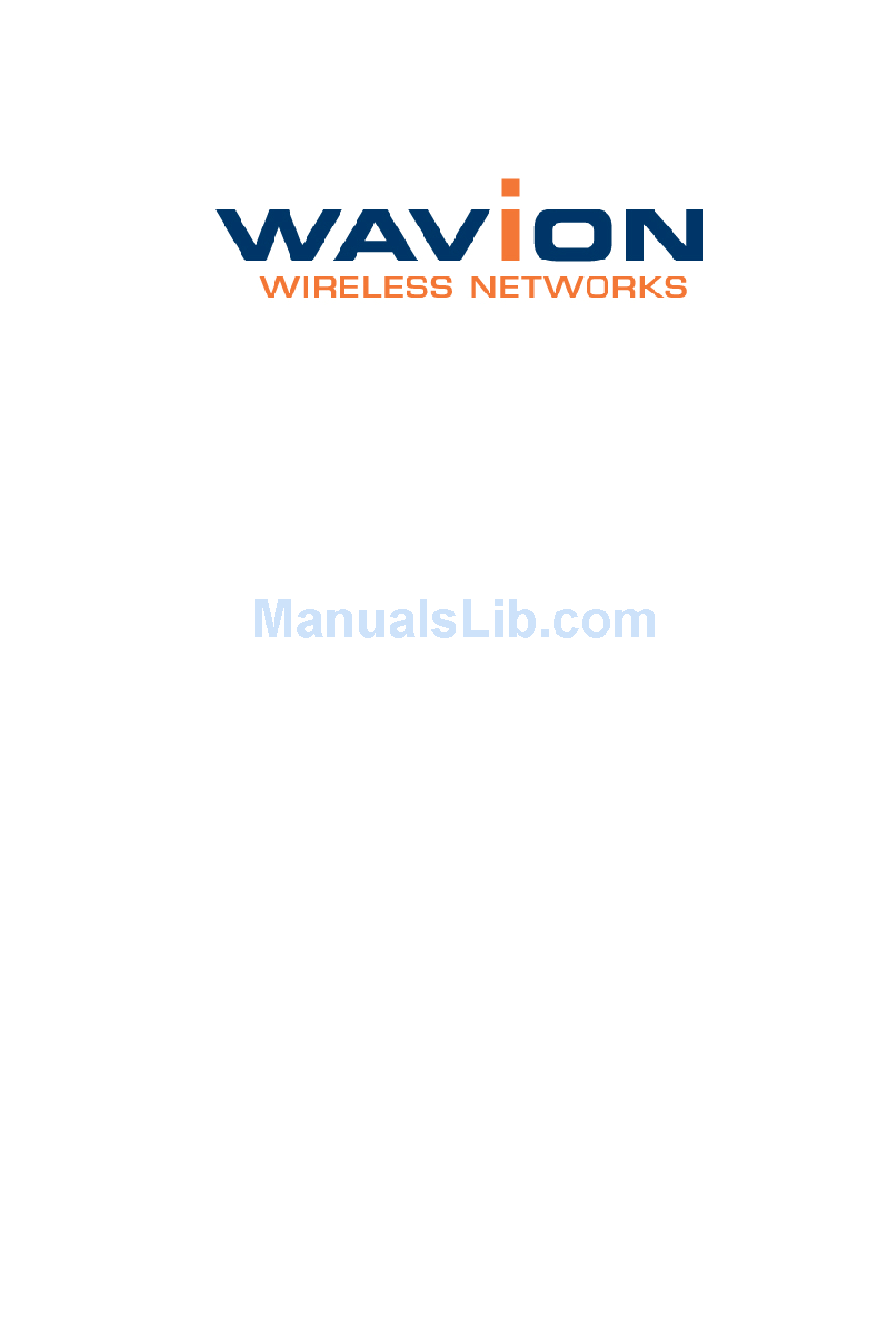

  • Page 1 WBS-2400 and WBS-2400-SCT User Manual SW version 4.0 March 2010...

  • Page 2: Copyright Notice

    Copyright Notice ©2006, 2007, 2008, 2009 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the United States and certain other jurisdictions. Specifications are subject to change without notice. FCC Notice to Users and Operators This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Important Safety Instructions

    ARNING There is a risk of personal injury or death if the WBS-2400 antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments and high voltage.
  • Page 4 AUTION The RJ45 connectors of your Wavion WBS-2400 may source DC power on pins 4,5 and 7,8. The IEEE 802.3 standards allow for pins 4,5 and 7,8 to be used for Power Over Ethernet. Some products may be incompatible with the Wavion Power Over Ethernet capability.

  • Page 5: Chapter

    About This Manual The following describes configuration of the WBS-2400 and WBS-2400-SCT. It is intended for use by network engineers and administrators charged with setting up and administering Wavion wireless networks. This manual contains the following: : Explains the Home page with its summary of the •...

  • Page 6: Table Of Contents

    ................. 42 Backhaul ..........................45 Bridge..........................57 SSID and VLAN configuration..............61 C h a p t e r 4 IEEE 802.11 and WBS-2400 Security Concepts ............61 Security Modes: Authentication and Encryption Methods ......... 61 Authentication Combinations ................. 62 Encryption Methods....................

  • Page 7: Viewing Stations

    Firmware Upgrade Procedure ................106 Roll back procedure ....................111 To return to the system default software version ........... 111 Appendix: Troubleshooting................ 113 C h a p t e r 9 Basic Troubleshooting ..................113 LED Description ..................... 114 7 Wavion...
  • Page 8 Introduction Wavion is glad to have the opportunity to offer the WBS2400 family of products as the best wireless coverage solution for your project requirements. Wavion’s next-generation base stations, referred to as spatially adaptive WiFi Base Stations, are designed specifically to address shortcomings in current outdoor access points for rural and metro WiFi applications.
  • Page 9 CPU – Control and synchronize the whole system performance • Wavion ASIC - Smart RF technology resides in the ASIC and software WBS-2400- Six RF modules and Antennas - Standard off-the-shelf components and antennas • • WBS-2400-SCT -Three RF modules and Antennas- Standard off-the-shelf components Wired Data –...

  • Page 10: Viewing The System Status

    Viewing the System Status Chapter 1 Viewing the System Status The Home page shows a summary of status data of the system. From within this page, you can quickly link from fields to other related pages for more information. Logging in The default IP address of the unit is IP: 192.168.1.1 and mask: 255.255.255.0.
  • Page 11 Viewing the System Status Figure 1.2 Quick Installation Guide Figure 1.3 IP Address Configuration You can skip the Wizard in this page by pressing the “Skip Wizard” button. 11 Wavion...
  • Page 12 Viewing the System Status Figure 1.4 Automatic Channel Selection After pressing “Start” a channel scanning will be performed. The last page of the wizard is the ACS results. From this page starts the normal functionality of the GUI. Figure 1.5 Automatic Channel Selection Rev 4.0 User Manual...

  • Page 13: Viewing The Home Page

    Home: Summary Status Page The following fields appear on the Summary Status page: Table 1.1 Home: Summary Status Page Field Description BST Status Associated Stations Links to Associated Stations page Active SSID Service Set Identifier; links to Editing SSID page 13 Wavion...
  • Page 14 Viewing the System Status Table 1.1 Home: Summary Status Page Field Description System Identity Links to System Configuration page System Description Description of the device as written in MIB-II SysDescr System Up Time Total time since system was switched on or last re- initialized System Contact Administratively-assigned email address of system...

  • Page 15: Managing The System Configuration

    Managing the System Configuration Chapter 2 Managing the System Configuration The System Configuration page displays system identification parameters like, IP information, system location servers etc. The other system pages allow updating of the software version and system configuration, and a view of the system components. Viewing the System Configuration To view the System Configuration page •...
  • Page 16 Managing the System Configuration The following fields appear on the System Configuration page: Table- 2.1 System Configuration Field Description System Identity System Description Description of the device as written in MIB-II SysDescr OID System Up Time Total time since system was switched on or last re-initialized System Contact, Name, These parameters are for the user convenience while Location, Time Zone,...
  • Page 17 It also provides an option for customers to keep an Open SSID for public traffic and simultaneously manage the WBS-2400 traffic over a separate VLAN (that may be linked to a secured SSID). The management VLAN can be selected out of the enabled VLAN list.
  • Page 18 Managing the System Configuration 1. Applying the VLAN parameters (external VLAN ID and tagging mode) using the existing management traffic, and selecting the desired VLAN to be the Management VLAN on the Administration page. After this stage the current wire-line connection to the system GUI will drop.

  • Page 19: Saving Changes

    Figure 2.2 Software Upgrade Tab Returning to the Default Software Version You can reinstall the default software version, using one of two options: 19 Wavion...
  • Page 20 Managing the System Configuration 1. Default Except IP – In this case, the unit will lose its current setting without changing the IP address. This option is convenient when choosing to return to default from a remote location. 2. Default – In this case, the unit will lose its current setting and gets system defaults of IP: 192.168.1.1 and mask: 255.255.255.0 To return to the system default software version 1.

  • Page 21: Managing The System Configuration

    You can also restore the factory default configuration file, export the current system configuration file, or import a new system configuration file. Figure 2.4 System Configuration Tab The following fields appear on the System Configuration tab: 21 Wavion...

  • Page 22: Exporting The Current Startup Configuration File

    Managing the System Configuration Table- 2.2 System Configuration tab Field Description Current Configuration File Current Startup File currently used to configure system on startup. This field is Configuration File also used to export the current configuration file. Right- clicking on the file name allows you to save the current Startup Configuration File on you local disk.

  • Page 23: Importing A New System Configuration File

    This license is issued on a unit by unit basis. That means that a license issued will work only with the unit the license was issued for. In order to get a license, please send the Tech Support Report and your company details to: support@wavionnetworks.com 23 Wavion...

  • Page 24: Installing The Sdma Feature

    Managing the System Configuration For help creating the Tech Support Report, please refer to Debug Interface section. Please send one Tech Support Report per each WBS-2400 where you want to enable the SDMA feature. Figure 2.5 Features Licensing Tab Installing the SDMA feature Upon reception of the license key, type it in the “Key”...
  • Page 25 Managing the System Configuration Figure 2.8 SDMA Installed and Active Note: Although the feature is installed, you can enable and disable it through the Wireless tab in Network-> Wireless menu. 25 Wavion...

  • Page 26: Viewing The System Hardware Components

    Managing the System Configuration Viewing the System Hardware Components The System Hardware page lists the components of the system. Figure 2.9 System Hardware Page-WBS-2400 Figure 2.10 System Hardware Page-WBS-2400-SCT The following information is displayed on the System Hardware page for each component.

  • Page 27: Debug Interface

    Software and Hardware. In case of faulty system behavior you may be asked by a Wavion technical support member to save the file listed in the Debug Interface page, or to enter a code that will generate special file for engineer's inspection.
  • Page 28 Debug Interface Page Table- 2.4 Debug Interface page Field Description Common Debug In rare cases you will be asked by Wavion technical person to upload Interface File Upload a file into the system to help critical issue debugging. Module Control ID/Args These codes will be given by Wavion Technical support person to load to the system in order to get help with critical debugging.
  • Page 29 Managing the System Configuration VLAN Select the VLAN (broadcast domain) where the IP addresses should be valid Optional Parameters Leave it blank for a repetition of 5 PING. Select “–t” for a non-stop PING stream. 29 Wavion...

  • Page 30: Managing Network Interfaces

    Managing Network Interfaces Chapter 3 Managing Network Interfaces You can view the status of the network interfaces. There is a summary page and a separate page where each interface can be managed. Viewing the Network Interfaces Summary To view the Network Interfaces Summary page •...
  • Page 31 Apply Click to have your changes take effect temporarily Save Click to have your changes remain in effect after a reboot Click to clear your changes; this is only possible if Apply or Cancel Save were not clicked 31 Wavion...

  • Page 32: Managing The Ethernet Interface

    Managing Network Interfaces Managing the Ethernet Interface The Ethernet page displays status and configuration parameters, and statistics information for the Ethernet interface. To view the Ethernet interface parameters and statistics. • Click Ethernet either from the Network Interfaces Summary or as a sub-item of the Network Interfaces menu item.

  • Page 33: Managing The Wireless Interface

    Status of the link (Up or Down) Rx (packets) Total number of received packets from Ethernet Tx (packets) Total number of transmitted packets towards Ethernet Managing the Wireless Interface The Wireless menu displays three pages and one sub-menu: 33 Wavion...
  • Page 34 Managing Network Interfaces Wireless pages: • o Wireless (configurable): Status and Configuration details, Interference Handling Mode, Frequency Planning Consideration, Traffic Optimization. o Wireless Activity: Statistics, RF Channel Parameters, SDMA parameters. o ACS (Automatic Channel Selection) SSID-VLAN submenu: For details on this sub-menu please refer to Managing SSID •...
  • Page 35 The recommended mode is Interferences mode Standard: System works in standard (20MHz) channel • separation Overlapping: System is optimized for 15MHz channel • Frequency Planning separation Consideration Note: Enabling the Overlapping mode will decrease the Tx power by about 3dB. Traffic Optimization 35 Wavion...

  • Page 36: Setting The Operational Channel

    High numbers in “Other WiFi activity” means interference from a co-located channel system. “Interferences” activity represents adjacent channel systems. Note: Measurements made to select a channel are best performed when there is limited or no traffic to WBS-2400. Rev 4.0 User Manual...

  • Page 37: Setting The Transmission Power

    802.11 CPE will be able to work with the WBS without throughput degradation. The WBS-2400 also reduces the Tx power automatically when in Overlapping mode to allow better signal quality in sites where several base-stations are co-located. However, a slightly larger BST separation of 2 meters between units must be kept.
  • Page 38 Managing Network Interfaces Selecting the Traffic Optimization The WBS-2400 and WBS-2400-SCT is set by default to “Capacity optimization”. This mode supports only CPE that can work in 802.11g protocol. This mode is optimized to achieve a higher capacity when compared to 802.11b systems.

  • Page 39: Saving Changes

    Managing Network Interfaces SDMA mode Wavion’s SDMA technology sends two concurrent data streams from the base station to two different users. This doubles the downlink capacity of each base station The feature must be installed prior to enabling it. Please refer to Installing the SDMA Feature.
  • Page 40 Managing Network Interfaces The following fields appear on the Wireless Activity page: Table- 3.5 Wireless Activity page Field Description Channel Parameters The level of the system noise power in dBm. Nominal noise level without interference is -97 dBm. Higher values indicate higher noise levels due to interference presence.
  • Page 41 Click to have your changes take effect temporarily Save (from the menu Click to have your changes remain in effect after a reboot bar) Click to clear your changes; this is only possible if Apply or Save Cancel were not clicked 41 Wavion...

  • Page 42: Automatic Channel Selection

    Managing Network Interfaces Automatic Channel Selection Figure 3.7 Automatic Channel Selection Page in Standalone Mode The Automatic Channel Selection (ACS) is a tool for automatic scanning the frequency channels, and selecting the best channel based on the activity and the interference level of each channel. It is useful for both standalone deployment and in assisting tool for multi-BST deployment.
  • Page 43 • Disabled - The user has to choose a channel from Channel Selection and reboot to return unit in Operation. Scan results 43 Wavion...
  • Page 44 Managing Network Interfaces Table- 3.6 Automatic Channel Selection page Field Description Scan Status Status of the system mode. • Not in ACS mode - is shown during operational mode • Scanning - is shown during scan Recommended channel The best channel that was chosen based on scan results. It selects the best channel from channels selected in the "available channel"...

  • Page 45: Backhaul

    Managing Network Interfaces Backhaul The WBS-2400 and WBS-2400-SCT have two important features to help the operator to deploy the systems more efficiently. Those features are: Backhaul CPE ◊ Self-Backhaul (SBH) ◊ Figure 3.8 Connected Backhauls page Table- 3.7 Connected Backhauls...
  • Page 46 Managing Network Interfaces Field Description Operational Rate The rate of the data transmitted to Peer BST on the SBH link. Rx Rate The rate of the data received from Peer BST on the SBH link. Tx Bytes Amount of bytes transmitted Rx Bytes Amount of bytes received RSSI...
  • Page 47 The steps in order to set the SSID as backhaul are identical whether you are in SSID-VLAN mode or in BSSID mode. These steps are shown below in SSID-VLAN mode. In BSSID mode, only some names are different. 47 Wavion...
  • Page 48 Managing Network Interfaces 1. Select an SSID 2. Set the SSID as Backhaul SSID by checking the “Backhaul SSID” checkbox. Please pay attention that the Authentication settings will change automatically to WPA2 PSK and the Encryption to AES. Please choose a pass phrase for authentication. QoS priority will be performed only according to 802.1p, so all the other QoS types (TOS, DSCP, Custom) are not shown.

  • Page 49: Viewing Associated

    The Backhaul CPE status can be checked through the “Connected Backhauls” page. Detailed information is displayed when the underlined values are selected. The details are identical as an associated CPE. Please refer to Viewing Associated Stations section for more information 49 Wavion...
  • Page 50 Managing Network Interfaces Self-Backhaul (SBH) To reduce backhaul cost, Wavion's software feature allows operating a radio link between WBS- 2400 units with up to 3 units per cluster: one central and up to 2 remote. This feature is based on in-band wireless backhaul connectivity with the link gain of 156dB for 6Mbps and 136dB for 54Mbps allowing to create links of up to 20Km distance in Line of Sight (LOS).
  • Page 51 • Remote - The satellite BST that connects wirelessly to the central. Beamforming Backhaul configuration The Wavion Self backhaul: Support for up to 2 Self Backhaul links between 2 Remote BST and central BST. Deployment support tools for minimal field configuration of Self backhaul links through wireless media "scan"...
  • Page 52 Managing Network Interfaces Remote and Central Scan feature To supports deployment of Remote BST. WBS-2400 have a tool that enables scanning for presence of BST in all the channels by the Remote (Remote-scan) and in the operative channel by the central BST (Central-scan). It gives the user the ability to select one of the BST as peer BST for Self Backhaul link and automatically adopt its configuration for establishment of Backhaul link.
  • Page 53 3. Configure the Network parameters 4. Logical network ID 5. Cluster ID 6. Configure the Remote base stations 7. Enter passphrase. 8. Set the Operational channel 9. Set the Range between BST or between the farthest client and the BST. 53 Wavion...
  • Page 54 The default mode is Auto Normal mode is to fine-tuning Point-to-Point Backhaul Aggressive mode is to fine-tuning Point-to-MultiPoint Backhaul After you perform all of the above steps the BST should be connected wirelessly via the Wavion Self-Backhaul link. Rev 4.0...
  • Page 55 3.2. Automatically - run the Remote-Scan Figure 3.13 Self Backhaul Configuration page - Remote To verify the connection qualities go to page: Network Interfaces Self Backhaul Connected BST The connection between the BST should be good or better. 55 Wavion...
  • Page 56 Managing Network Interfaces Figure 3.14 Backhaul BST Link Information page Note: To avoid Network loops, make sure there is no wired Ethernet connectivity to the remote BST that closes a loop with the Ethernet connectivity to the Central BST. Note: All BST in the same cluster must be configured to the same channel.

  • Page 57: Bridge

    “Rate” Peer Traffic Policing Allow: peer-to-peer traffic is enable • Peer to peer communication Block excluding Management VLAN: peer-to-peer • data traffic is blocked on all VLAN but the 57 Wavion...
  • Page 58 Managing Network Interfaces Field Description Management VLAN (active when more than one VLAN is configured). When only a single VLAN is configured Peer-to- Peer traffic is allowed. Allow: multicast/broadcast peer-to-peer traffic is • enable Multicast peer to peer communication Block: multicast/broadcast peer-to-peer traffic is •...
  • Page 59 Duplicate IP. Figure 3.17 Blocking peer-to-peer traffic LLC Encapsulation All frames transmitted through the 802.11 interface must have an LLC header. For frames received at the WBS side of the link without an LLC header (mainly frames with EtherTypes 59 Wavion...
  • Page 60 Managing Network Interfaces >1563) a substitute header should be added. This substitute header is set using an LLC header described in RFC 1042 (default option). This option can be overridden by using the header used in 802.1H protocol. The list of EtherTypes which are going to use the 802.1H header should be set in the LLC Encapsulation page.

  • Page 61: Ssid And Vlan Configuration

    SSID and VLAN configuration Chapter 4 SSID and VLAN configuration IEEE 802.11 and WBS-2400 Security Concepts IEEE 802.11 security is supported by the WBS-2400. Security Modes: Authentication and Encryption Methods The following are the different combinations of security modes. Table- 4.1...

  • Page 62: Authentication Combinations

    Capture Portal. There may be legacy clients that try to authenticate with Shared Key while others try to authenticate with Open. It is assumed that the encryption in this case is WEP but the WBS-2400 does not force this.

  • Page 63: Qos Packets Priority

    It is suitable for applications that require QoS over WiFi, such as Voice over IP (VoIP) In order to allow QoS through the WBS-2400, both ends of the network (CPE on the wireless side and the switch/router on the Ethernet side) should support priority tagging. This permits the marking of a specific packet with a specific priority.
  • Page 64 SSID and VLAN configuration Figure 3.19 VLAN Tag (802.1p) Priority Marking Table Note: WBS should be set to work with tagged VLAN in order to support 802.1p QoS. Figure 3.20 DSCP (RFC4594) Priority Marking Table Rev 4.0 User Manual...
  • Page 65 Select two values (the range is 0 to 63) for each one of the AC. When getting DSCP equals to value1 or to value2, the map to the specified Access Category applies. Remaining values will be mapped to “Best Effort” AC. 65 Wavion...
  • Page 66 SSID and VLAN configuration The SSID-VLAN pages SSID-VLAN is a sub-menu under the Wireless page in Network menu. This page allows management of the security configuration. It is recommended to rename the SSID. The SSID is case sensitive and shorter than 32 characters. There are two operation modes: •...
  • Page 67 The full SSID string Security Parameters Authentication The specific Authentication method as defined for the SSID Encryption The specific Encryption method as defined for the SSID. Number of Related The number of VLAN that are related to the specific SSID. VLAN 67 Wavion...
  • Page 68 SSID and VLAN configuration Figure 4.2 SSID Table Page-BSSID mode The following information is displayed on the BSSID Table. Table- 4.3 BSSID Table Field Description SSID index number Enabled Indicates whether the SSID is enabled or not SSID Name The full SSID string MAC Address The address to fill the BSSID field in the beacon of the specific broadcasted SSID...
  • Page 69 SSID and VLAN configuration Note: Each enabled BSSID causes more beacons to be broadcasted over the air. This may cause degradation of the system’s capacity. Editing SSID/BSSID Figure 4.3 Editing SSID Page- default mode 69 Wavion...
  • Page 70 SSID and VLAN configuration Figure 4.4 Editing BSSID Page- BSSID mode The following fields appear on the Editing SSID/BSSID page. For more information about Security and QoS Configurations, see also Security Modes: Authentication and Encryption Methods and QoS packets priority Rev 4.0 User Manual...
  • Page 71 Editing SSID Page Field Description Identity Rename SSID/BSSID 'Wavion' is the default SSID. Set new name for the SSID; the SSID is case-sensitive, and shorter than 32 characters SSID/BSSID Index It's a chronological numbering for the SSID Table BSSID MAC address attached to the SSID (only in BSSID mode) SSID/BSSID Enabled SSID #1 is always Enabled.

  • Page 72: Configuring Wep Security

    SSID and VLAN configuration Table- 4.4 Editing SSID Page Field Description DSCP: Uses RFC4594 • TOS: Uses IP precedence • Custom: User configuration of the DSCP field Related VLAN VLAN: VLAN- Default VLAN name 0_Name_External-ID-1 Rename VLAN Option to rename VLAN name for identification. VLAN External ID Configured VLAN number as configured on the backhaul LAN switch...
  • Page 73 Click to have changes take effect temporarily Save (from the Menu) Click to have changes remain in effect after a reboot Cancel Click to clear your changes; this is only possible if Apply or Save were not clicked 73 Wavion...

  • Page 74: Configuring Wpa Security

    SSID and VLAN configuration Configuring WPA Security To configure WPA Security • From the Authentication drop down menu, select either WPA PSK or WPA RADIUS. • Select TKIP, TKIP + WEP/40 or TKIP + WEP/104 from the Encryption choice. • For the Security Keys, select either by Value or by Pass Phrase and enter the appropriate value Figure 4.6 WPA Security Mode...

  • Page 75: Configuring Wpa2 Security

    WPA2 Security Mode Configuring RADIUS Server Parameters • In case RADIUS Authentication is required choose WPA2 Radius from the Authentication drop down menu to open the Radius Servers configuration. • Each SSID can be configured with its own RADIUS server 75 Wavion...

  • Page 76: Vlan Configuration

    VLAN Configuration Tagging VLAN It is possible to create several networks working in parallel on the same WBS-2400. This is performed creating several SSID mapped to several VLAN. Each SSID will represent a different broadcast domain, isolated from other SSID using different broadcast keys. On the Ethernet side the broadcast domains are separated by VLAN.

  • Page 77: Configuring Vlan

    The default VLAN has the VLAN ID equal to 1, but by default the tagging is disabled leaving the data untagged. By default, all management traffic to and from WBS-2400 is on VLAN ID 1. It is a good practice to create a VLAN dedicated to the management of the unit. See Management VLAN section for more information.
  • Page 78 SSID and VLAN configuration In the Rename SSID field, enter an SSID Name to be used. Check the SSID Enabled checkbox. This enables the SSID. Check whether this SSID is a Backhaul SSID ( See Backhaul CPE) Configure all security parameters: Authentication, and Encryption as required (See Security Configurations).

  • Page 79: Configuring Multiple Vlans Per Ssid

    RADIUS authentication. In this case, there is an option to edit multiple VLAN, one after the other. You can add VLAN by pressing the “Add VLAN” button. There can be up to 16 VLAN in the overall system in SSID-VLAN, and up to 6 in BSSID mode. 79 Wavion...
  • Page 80 Figure 4.11 Editing SSID with RADIUS -- Multiple VLAN Only one VLAN has the Default for SSID checkbox marked. This indicates to the WBS-2400 which is the default VLAN when authentication on the SSID is performed and the RADIUS does not provide the assignment to VLAN (this is to avoid possible configuration problems in the RADIUS).

  • Page 81: Management Vlan

    It also provides an option for customers to keep an Open SSID for public traffic and simultaneously manage the WBS-2400 traffic over a separate VLAN (that may be linked to a secured SSID). The management VLAN can be selected out of the enabled VLAN list.

  • Page 82: Viewing Associated Stations

    Viewing Associated Stations Chapter 5 Viewing Associated Stations The Association menu item allows you to view parameters of stations associated to the system. Viewing Stations To view a summary of associated stations • Click the Association menu item. The following summary chart appears if there are associated stations in the system. Figure 5.1 Association Statistics The following fields appear on the Association Statistics page:...

  • Page 83: Viewing Associated Stations

    QoS please refer to “QoS Packet Priority” WDS enables preserving MAC addresses of client packets across the wireless links. Value of ‘yes’ in this field means the CPE supports WDS protocol. The supported CPE are Ubiquity NS2/PS2/NS5/PS5 running 83 Wavion...

  • Page 84: Viewing Specific Stations

    Viewing Associated Stations version 3.2.2, and Ruckus running version 4.4.2.0.28. Tx Rate [Mbps] PHY Rate (modulation) at which the base station currently transmits to the associated station Rx Rate [Mbps] PHY Rate (modulation) at which the associated station currently transmits to the base station SSID SSID to which the associated station is associated VLAN...

  • Page 85: Viewing Associated

    Value of 'yes' in this field indicates that the associated station supports the WMM protocol- . For more information about working with QoS please refer to “QoS in WBS-2400” Value of ‘yes’ in this field means the CPE supports WDS protocol. The supported CPE are Ubiquity NS2/PS2/NS5/PS5 running version 3.2.2, and Ruckus running version 4.4.2.0.28.

  • Page 86: Viewing Associated

    Viewing Associated Stations Figure 5.4 Station Detailed Information tab part 1 In the above screen, the top of the tab is shown. RF Switching Related Information page is shown when the plus [+] sign is clicked. The Rx Rates are shown in the same way: Rev 4.0 User Manual...

  • Page 87: Viewing Associated

    Viewing Associated Stations Figure 5.5 Station Detailed Information tab part 2 And the RF Switching Related Statistics: Figure 5.6 Station Detailed Information tab part 3 The following information is displayed in the Station Detailed Information tab. 87 Wavion...
  • Page 88 Viewing Associated Stations Table- 5.4 Station Detailed Information tab Field Description Station Identity The Association ID (AID) that the client got when its association to Station Association ID the BST was completed. Station MAC Address MAC (Media Access Control) address of the associated station. Station's Detailed Information This counter increment every time the Retry Counter (below)

  • Page 89: Viewing Associated

    • Total successful transmissions delivered to the client [packets] Total Successful Transmissions • Total successful transmissions delivered to the client [bytes] • Total successful transmissions received from the client [packets] Total Successful Receptions • Total successful transmissions received from the client [bytes] 89 Wavion...

  • Page 90: Mac Filtering

    MAC filtering is a feature that enables the user to limit the maximal number of stations to be associated to the WBS-2400. It also allows the creation of “white” or “black” lists to control the identity of the stations to be associated.
  • Page 91 After all the entries are created, press “Apply” and “Save” Maintenance buttons The list can be exported to a .CSV file named Export List “mac_filtering.csv” for backup. Selects/deselects all the entries in the list for easy Check/Uncheck all deletion Apply Applies the changes 91 Wavion...

  • Page 92: Managing System And Station Security

    Managing System and Station Security Chapter 6 Managing System and Station Security You can manage system users and their passwords, as well as system security parameters. This chapter covers the following main areas: • Administration • Authentication Viewing the Security Page The Security page displays a summary of the different types of security information: administration, authentication, and SSID/VLAN data.

  • Page 93: Viewing The Management Configuration Page

    • Click Administration, either from the Security page, or from the menu bar, as a sub-menu under the Security item. The Management Configuration page displays. Figure 6.2 Management Configuration Page The following fields appear on the Management Configuration page: 93 Wavion...
  • Page 94 Managing System and Station Security Table- 6.2 Management Configuration page Field Description Use to change password or add new users to manage the unit; see HTTP/CLI Users below When registering a new user, enter user name; user name is case User Name sensitive User type is selected when registering a new user...
  • Page 95 Click Save for the password change to remain after a reboot. To add a new user to the system In the HTTP/CLI Users section, select (new) from the User Name dropdown list. A New User field appears. Enter a new user name in the field. 95 Wavion...

  • Page 96: Http Configuration

    Managing System and Station Security Select a user type from the user type dropdown list, either Administrator or Viewer. Enter a password in the Password field. A password must contain at least 6 characters. Re-enter the password in the Confirm Password field. Click Apply.
  • Page 97 The pairwise master key lifetime indicates the time in seconds Lifetime that the pairwise key (the key used for encrypting unicast traffic) is valid in the WBS-2400 cache. PML default value is 43200 seconds or 12 hours. Re-Authentication Enable Re-Authentication Indicates whether periodic EAP re-authentication process occurs.
  • Page 98 Managing System and Station Security Table- 6.3 Authentication tab Field Description • Disabled - no re-keying • Time Based - re-keying after a certain time • Packet Counter Based - re-keying when group (broadcast) packet counter reaches a certain level (modifiable field) Timeout (seconds) After this timeout, re-keying occurs if re-keying method is 'Time...

  • Page 99: Viewing Events

    Table- 7.1 Event Log page Field Description Time Since Uptime The time the event occurred. The time of 0 is the time the system was last rebooted. This time will be synchronized with the NTP server data . 99 Wavion...

  • Page 100: Viewing The Full Event Log

    Viewing Events Table- 7.1 Event Log page Field Description Severity The severity of the event showing how serious event is: Information, Connection Flow, Warning, Critical, or the event type (e.g. Connection Flow) Source System module reporting the event Description Complete description of circumstances of event Viewing the Full Event Log Clicking the Full Event Log menu item displays the Full Event Log page.

  • Page 101: Navigating The Event Log

    The number of events shown on a page. The user my Events per page change this value and hit the Arrow-in-a-square to activate the change. By default, there are 15 events per 101 Wavion...

  • Page 102: Configuring Event Logs

    Viewing Events Table- 7.3 Viewing the Full Event Log page Description page. Configuring Event Logs You can configure what appears in the event log, and what is sent to the external logs, such as SYSLOG and SNMP Trap Manager, through the Event Log Control page. On this page, you can control parameters relating to the event log, such as what types of events included in the log, and what method is used to collect the events.
  • Page 103 Click to clear your changes; this is only possible if Apply or Save were not clicked You can modify selections on this page. Click Apply to save changes temporarily. Click Apply and Save to have changes remain in effect after a reboot. 103 Wavion...
  • Page 104 Viewing Events Rev 4.0 User Manual...

  • Page 105: Upgrading The System Software

    Wavion facility is User: Pass: 3. IP address of unit. Default address of each unit leaving Wavion facility is 192.168.1.1/24 (or mask 255.255.255.0) 4. Firmware files: See table 8.1 for details 5. Unit to be upgraded 105 Wavion...

  • Page 106: Firmware Upgrade Procedure

    Upgrading the System Software Firmware Upgrade Procedure Note: To better reflect the value of Wavion products we are changing the name of our product family from Access Points (AP) to Wireless Base Stations (WBS), consequently the existing WS-410 product name will be changed to Wavion WBS-2400.
  • Page 107 Change the IP address of the PC to be in the same subnet as the unit. For example if the • units IP address is 192.168.1.1 the IP address of the PC may be 192.168.1.10 Connect the PC Ethernet port to the WBS-2400 Unit Ethernet port using a straight or • cross Ethernet cable).
  • Page 108 Upgrading the System Software The system software tabs display, consisting of the Software Upgrade tab for managing • the system software version, and the System Configuration tab for managing the system configuration. Figure 8.1 System Software page Performing Software Upgrades using HTTP The Software Upgrade option shows details about the current software version, and allows you to set properties required to install a new software version.
  • Page 109 When the upload has completed successfully and after the Reboot complete, the WEB GUI automatically refreshes the page back to SW Upgrade. Figure 8.3 The new software version is shown Note: When using Microsoft Explorer browser, restart the browser in order to clear the program’s cache. 109 Wavion...
  • Page 110 Wait for Web page to change to "Reboot the system" Note: It is mandatory to have a TFTP server available on the same subnet with the WBS-2400. Step 3: Reboot the system The system will come up with the new SW version.

  • Page 111: Roll Back Procedure

    Note: You can roll back to Backup version only if you saved a backup version before To return to the system default software version 1. Click Default or Default except IP. A warning popup displays will show up. 111 Wavion...
  • Page 112 Upgrading the System Software Figure 8.6 Default Popup 2. Click OK, the system returns to the default software version, and default IP and mask settings (which are: 192.168.1.1 255.255.255.0). Backing Up the Current Software Version You can backup the software version currently installed on the system. The backup version is kept on a separate flash area on the unit itself.

  • Page 113: Appendix: Troubleshooting

    Appendix: Troubleshooting Chapter 9 Appendix: Troubleshooting We hope your experience with the WBS-2400 is as smooth as possible. In this section we provide tips to solve some common problems. Basic Troubleshooting Problem Solution Default user and password User: admin Password: admin Unable to Ping or HTTP the New Unit •...

  • Page 114: Led Description

    Appendix: Troubleshooting Problem Solution • Check for Line of Sight Link is Good but no data traffic • Check that Passphrase is the same for both BST in case of problems raising cluster Try to set a different channel of the Central-BST links due to low SNR of the SBH links (from the sub-scan) LED Description...
  • Page 115 Initialization state RED,STEADY Critical alert GREEN, SLOW_BLINK Operational without connected stations GREEN, STEADY Operational with connected stations AMBER, FAST_BLINK Operational GENERAL_WARNING AMBER, SLOW_BLINK Software RESET AMBER,STEADY Hardware RESET RED, SLOW_BLINK Factory default but IP RED, FAST_BLINK Factory default 115 Wavion...
  • Page 116 Appendix: Troubleshooting LED name Status Description RADIO- (R) GREEN, SLOW_BLINK Initialization state RED, STEADY Critical alert GREEN, SLOW_BLINK Operational without connected stations GREEN, STEADY Operational with connected stations AMBER, FAST_BLINK Operational GENERAL_WARNING Rev 4.0 User Manual...
