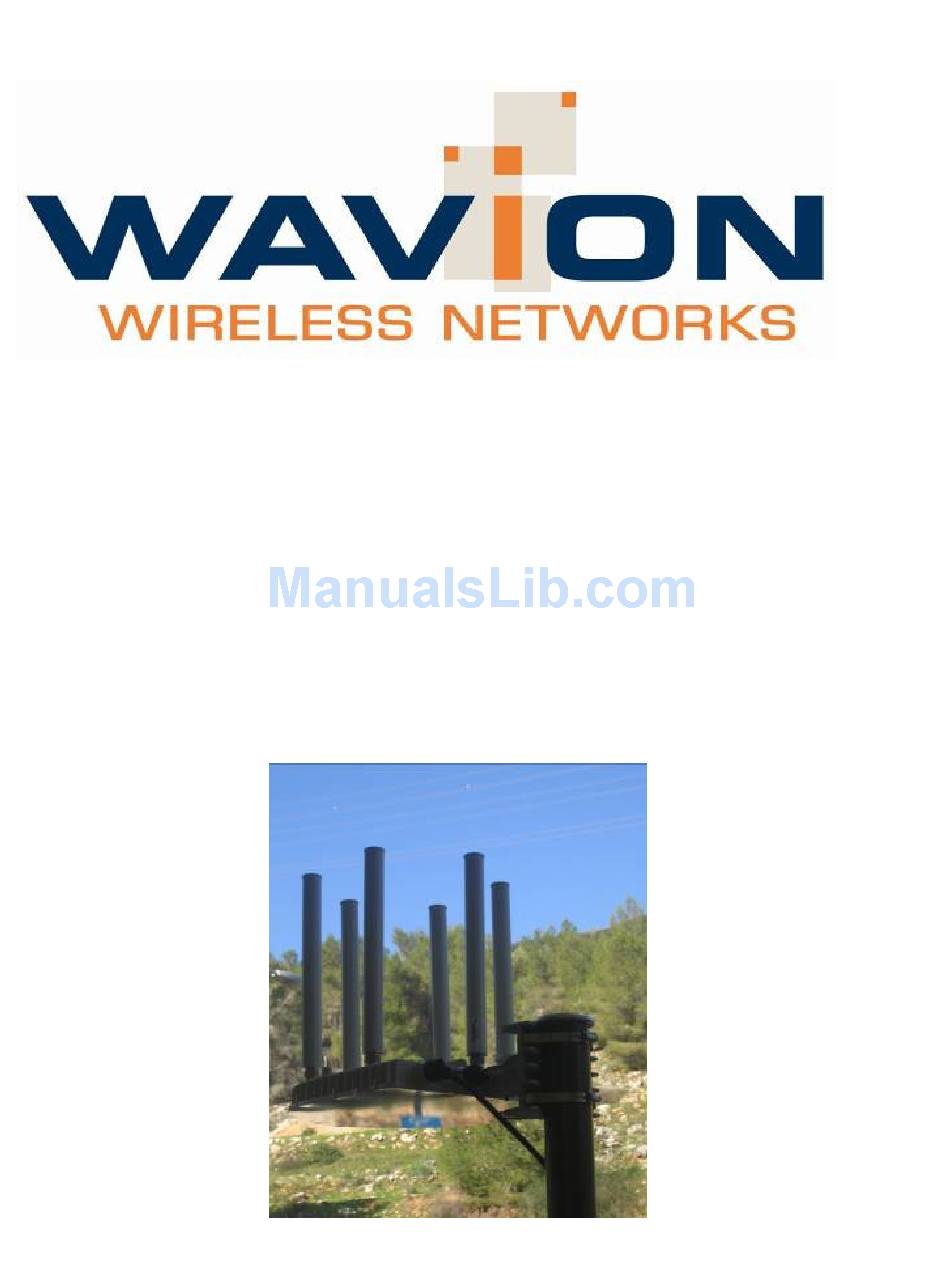

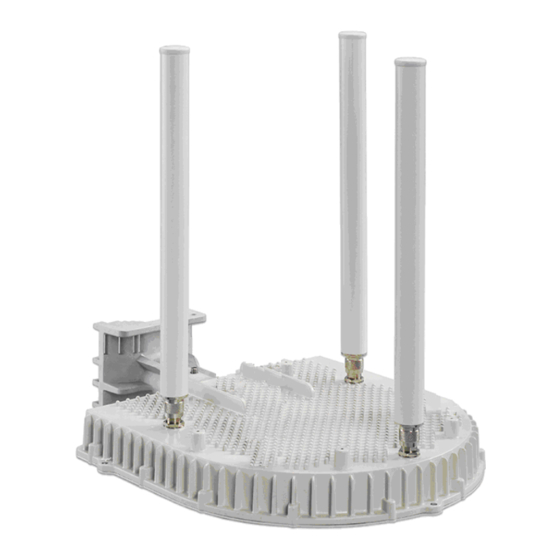

- Page 1 WBS-2400/5800 Outdoor Wi-Fi Base Station Installation Guide Rev. 9 November 2008...
- Page 2 Note: To better reflect the value of Wavion products we are changing the name of our product family from Access Points (AP) to Wireless Base Stations (WBS), consequently the existing WS-410 product name will be changed to Wavion WBS-2400. The new product name emphasizes the difference in architecture (Multiple Radio system)
- Page 3 R&TTE Compliance Statement This equipment (ETSI-models only) complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) Installation Guide...
-
Page 4: Table Of Contents
C h a p t e r 2 Package Content ................ 8 C h a p t e r 3 Installing the Wavion WBS-2400/5800 Metro Base Station..9 C h a p t e r 4 Important Safety Instructions ................10 Preparing for Installation................. -
Page 5: About This Guide
Chapter 1 About This Guide Preface This guide details the Wavion WBS-2400/5800 installation procedures. The intended audience of this document is trained technical professionals. Conventions The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. -
Page 6: Contacting Technical Support
About This Guide Contacting Technical Support For technical support, contact Wavion using these methods: Wavion Technical Support Wavion 6 Hayetzira Street, Address: PO BOX 580 Yoqneam Illit, 20692 Israel Telephone: +972-52-6097343 Fax: +972-4-9097322 support@wavionnetworks.com Email: www.wavionnetworks.com Web: Wavion Networks... -
Page 7: Introduction
A system can include any number of cells, each containing several base station access units for better coverage of densely populated areas. It is based on six antennas and radios and custom-built ASICs, utilizes Wavion's powerful multi- antenna signal processing technologies, and provides significant performance gains to off-the- shelf 802.11 standards-based... -
Page 8: Package Content
Failure to do so may void the WBS-2400/5800 product warranty and may expose the end user or Service Provider to legal and financial liabilities. Wavion and its resellers or distributors are not liable for injury, damage or regulation violations associated with the installation of Outdoor Units or antennas. -
Page 9: Installing The Wavion Wbs-2400/5800 Metro Base Station
Chapter 4 Installing the Wavion WBS-2400/5800 Metro Base Station This guide explains how to safely install the Wavion WBS-2400/5800 Metro Base Station. The following topics are covered in this chapter: Important Safety Instructions on page • Preparing for Installation on page •... -
Page 10: Important Safety Instructions
Warning: Risk of personal injury or death when installing this device! There is a risk of personal injury or death if the WBS-2400/5800antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments and high voltage. -
Page 11: Preparing For Installation
Caution The WBS-2400/5800must be installed only with the equipped antennas. Caution A minimum distance of 40cm from the WBS-2400/5800X's antenna should be kept when the system is operated. Caution Read and save these instructions. Heed all warnings. Follow all instructions... -
Page 12: Choosing A Location
100 meters. 4. An appropriate ground cable should be available. Connect a grounding cable between the Ground terminal of the outdoor unit and a good ground connection. Please refer to standards for building entrance protection. Wavion Networks... -
Page 13: Sun Shield
The sun shield plate is installed with 6 screws (supplied with the sun shield) attaching it from the top at the special threaded screw holes. Power Source Options The WBS-2400/5800 is powered by a Wavion POE Injector connected ETH port of the unit. See Installation Accessories on page for details. -
Page 14: Mounting Strategies
It is recommended to attach ground and data cables to the WBS-2400/5800 prior to mounting. Before mounting the WBS-2400/5800, read the wiring instructions in... -
Page 15: Using Hose Clamps
Example Mounting Locations on a Streetlight Using Hose Clamps Special hose clamps that include threaded holes are used by the mounting assembly to secure the WBS-2400/5800 to the mounting structure. Figure 4.3 demonstrate how to correctly use the hose clamps. The bands must be threaded through holes in the pole bracket, and then attached to either a vertical or a horizontal pole and tightened. -
Page 16: Mounting On A Pole/Streetlight
Figure 4.3 Using Special Hose Clamps & Screwing the Clamps Mounting on a Pole/Streetlight WBS-2400/5800 can be mounted on a pole, tower, or streetlight. It is recommended to mount the WBS-2400/5800 on aluminum or galvanized steel structures. Note The Wavion WBS-2400/5800 must be mounted with the top of the unit parallel with the ground and with the antennas pointing upward. - Page 17 To mount the Wavion WBS-2400/5800 on a metal/wood/streetlight pole: 1. Choose a mounting location. You can attach the WBS-2400/5800 outdoor unit to any pole or pipe with diameter of 3-10 inches. Wooden poles of larger diameter require different types of clamps (any streetlight arm with diameter of 3 to 10 inches will fit for this installation).
-
Page 18: Grounding Wbs-2400/5800
Figure 4.5 Attaching the WBS-2400/5800 to the pole bracket Note : The WBS-2400/5800 unit must be parallel to the ground. The unit can be rotated to obtain the correct position. Note Installations on large wooden poles require band clamps such as those supplied by Panduit, www.panduit.com. -
Page 19: Grounding The Data Protection Device
: Transient or electrostatic discharges that may occur at the WBS- 2400/5800, for example a lightning strike, may damage your network equipment connected to the WBS-2400/5800 and cause personnel injury or death of persons touching the exposed metal connectors of the equipment. - Page 20 2. Attach a length of #10 AWG bare copper wires to the ground post on the data protection device. 3. Attach the other end of the grounding wire to the ground connection of an electrical outlet or a grounded water pipe. Figure 4.8 Grounding indoor injector by Network Protection Unit Wavion Networks...
-
Page 21: Connecting Antennas
Figure 4.9 Grounding injector that located outdoor by Network Protection Unit Connecting Antennas This section explains how to connect the six antennas to the WBS-2400/5800X. In order for the WBS-2400/5800 to work properly, six antennas must be connected. Screw each of the 6 antennas into the N-Type connectors on the WBS-2400/5800. -
Page 22: Connecting Power And Data
You will most likely damage the antenna. The successful insertion of six antennas should look as follows. Connecting Power and DATA The following describes how to apply power and data to the WBS-2400/5800X Caution : You must always install an external grounding wire. Perform a simple continuity check between the WBS-2400/5800and the ground termination point to confirm. - Page 23 The Wavion WBS-2400/5800 is equipped with two RJ45 connectors. The right hand port named "TEST" is for engineering use only (!) and has to be sealed with the sealing rubber. Use the ETH port to connect data and power cable.
- Page 24 Wavion WBS-2400/5800 through the lightning protection device. See "Grounding the Data protection device" section for connection diagram. 3. Connect one end of the Category 5 cable to the "RADIO" port of the Wavion POE injector. 4. Connect the other cable end to ETH port on the WBS-2400/5800. Use a shielded RJ45 8-pin modular plug to terminate the cables at the desired lengths.
- Page 25 5. Place the sealing rubber on the cable and push it towards RJ45 connector on WBS-2400/5800 Figure 4.12 Sealing rubber 6. Tighten the band on sealing rubber for better sealing or using plastic clips. Installation Guide...
-
Page 26: Safety Information For The Wavion Wbs-2400/5800
Figure 4.13 plastic clips 7. Connect the data cable from the network to "Ethernet" port of POE injector. 8. Connect POE injector to AC power source to power WBS-2400/5800unit. POE port RJ45 Pin Descriptions Signal Color Description TXD+ Orange-White TX Data 10/100BaseT... -
Page 27: Service Instructions
• The use of wireless devices in hospitals is restricted to the limits set forth by each hospital. • Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment. • The Wavion WBS-2400/5800must be used only with Wavion approved components and antennas. • Service Instructions The Wavion WBS-2400/5800 contains no user serviceable parts inside. -
Page 28: Product Specification
Chapter 5 Product Specification The tables in this chapter contain specifications for the Wavion WBS-2400/5800X. Wireless Specifications IEEE 802.11b/g compliant Frequency band 2.4 - 2.483 GHz or TBD • 802.11b: DSSS (DBPSK, DQPSK, CCK) Modulation • 802.11g: OFDM (64QAM, 16QAM, QPSK,... - Page 29 -105.5 dBm @ Mbps -103 dBm @ Mbps -100.5 dBm @ Mbps 96 dBm Mbps -102.5 dBm @ Mbps -100.5 dBm @ Mbps -99.5 dBm @ Mbps dBm @ Mbps dBm @ Mbps dBm @ Mbps dBm @ Mbps dBm @ Mbps Security Specifications Packet filtering via layer 2 &...
- Page 30 Weight: Power Specifications • 55VDC, supplied over Ethernet from Wavion Power Input injector. • Power from Wavion Injector max.0.8A @ 55VDC Input Power • Power consumption may vary for the different Consumption part numbers – maximum will be 44W. Wavion Networks...
- Page 31 Environmental Specifications -40°C to +55°C (without Sun Shield) Operating Temperature Range -40°C to +60°C (with Sun Shield) Storage Temperature Range -45°C to +85°C Weather Rating IP65 Wind Survivability 165 mph Salt and Fog Rust Resistance MIL-STD-810F 509.4 Shock and Vibration ESTI 300-192-4 spec T41.E Transportation ISTA2A...
-
Page 32: Installation Accessories
Chapter 6 Installation Accessories This chapter describes the accessories available for the WBS-2400 and ordering information. The following topics are covered in this chapter: Ethernet Cables on page • Sun Protection on page • Lightning Protection on page • Power Over Ethernet on page •... -
Page 33: Ethernet Cables
4-pair data cable Taiwan, R.O.C bay.com.tw Attn: Eva Lin Sun Protection Product Part Description Name Number Sun Shield for WBS-2400/5800X, extends upper operation WA-SUN- 27009023 temperature range to +60°C Lightning Protection Part Description Manufacturer Contact Information Number Data protection... -
Page 34: Power Over Ethernet
Power Over Ethernet Product Part Description Name Number Wavion Injector for powering the WBS-2400/5800over an WPI-AC- 27002213 Ethernet cable. Output 55VDC, 1A. Wavion Networks... -
Page 35: Wind Loading Considerations
The Wavion WBS-2400/5800weighs approximately 16 lbs, including all mounting hardware. When the Wavion WBS-2400/5800is mounted on a pole, the sail area of the WBS-2400/5800is approximately 1 square foot. The Wavion WBS-2400/5800can load a pole with a maximum load of 3400 Newton in wind conditions of 165mph. -
Page 36: Acronyms
DSSS Direct-Sequence Spread Spectrum Electromagnetic Compatibility IEC standard Electrostatic Discharge Federal Communications Commission Hertz HPoE High Power over Ethernet Institute of Electrical and Electronics IEEE Engineers IP67 Ingress Protection Standard ISTA International Safe Transit Association Local Area Network Wavion Networks... - Page 37 Mbps Megabits Per Second Megahertz MIL-STD Military Standard Neutral National Electrical Codes National Electrical Manufacturers NEMA Association Orthogonal Frequency Division OFDM Multiplexing Phase Protective Earth Power over Ethernet RJ45 Registered Jack 45 Received Signal Strength Receive Receive Data Technical Inspection Association Transmit Transmit Data Underwriters Laboratories...
-
Page 38: Appendix A: Wbs-2400/5800Product List
Chapter 9 Appendix A: WBS-2400/5800Product list Part Product namer Product description Number Spatially adaptive, multi radio 2.4GHz WiFi base station, 12406101 WBS-2400-FCC 6 antenna FCC/TUV compliant Spatially adaptive, multi radio 2.4GHz WiFi base station, 12406102 WBS-2400-EU 6 antenna ETSI / CE compliant Spatially adaptive, multi radio 2.4GHz WiFi base... - Page 39 Installation Guide...
