2.3.3 Connect to the Power Source

To use PoE, plug a Cat 5 Ethernet cable from the V3 Paging Server Ethernet port to your network.
As an alternative to PoE, you can plug one end of a +48V DC power supply into the Paging Server,
and plug the other end into a receptacle. If required, connect the earth grounding wire to the chassis
ground on the back of the unit. See

PoE

Non PoE (with 48 VDC power supply)

Chassis Ground

Chassis Ground
CyberData Corporation

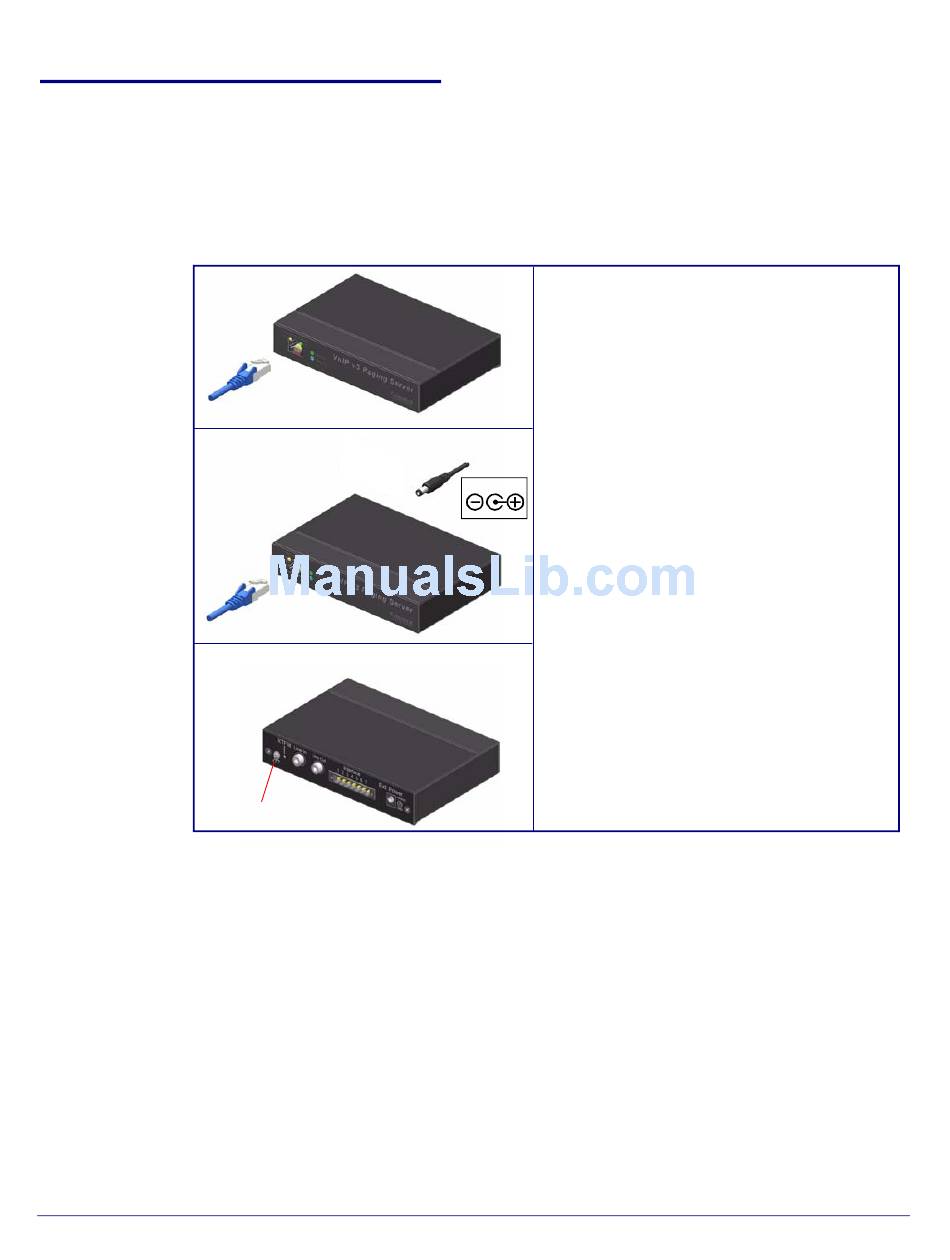

Figure 2-5.
Figure 2-5. Connecting to the Power Source
To set up the V3 Paging Server, connect the
device to your network:
Poe
●
48VDC

Non-Poe

●
Chassis Ground
●
930427B
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
For PoE, plug one end of an 802.3af Ethernet
cable into the V3 Paging Server Ethernet
port. Plug the other end of the Ethernet cable
into your network. See the figure on the left.
For Non-PoE, connect the V3 Paging Server
to a 48VDC power supply. See the figure on
the left.
If required, connect the earth grounding wire
to the Chassis Ground. See the figure on the
left.
