2.3.6 Connect to the Power Source

To use PoE, plug a Cat 5 Ethernet cable from the Paging Server Ethernet port to your network. As
an alternative to PoE, you can plug one end of a +48V DC power supply into the Paging Server, and
plug the other end into a receptacle. If required, connect the earth grounding wire to the chassis
ground on the back of the unit. See

PoE

Non PoE (with 48 VDC power supply)

Chassis Ground

Chassis Ground
CyberData Corporation

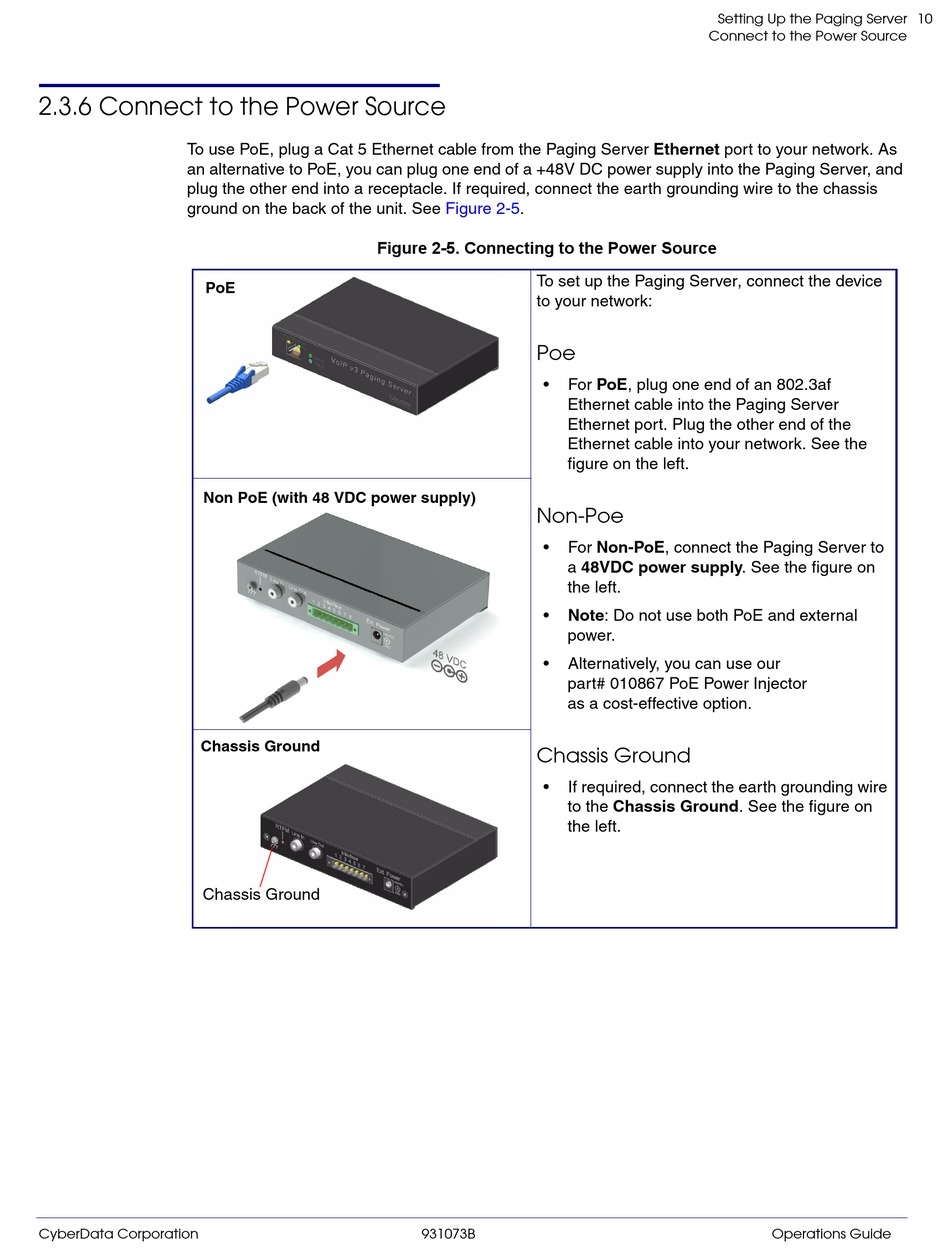

Figure 2-5.
Figure 2-5. Connecting to the Power Source
To set up the Paging Server, connect the device
to your network:
Poe
•

Non-Poe

•
•
•
Chassis Ground
•
931073B
Setting Up the Paging Server
Connect to the Power Source
For PoE, plug one end of an 802.3af
Ethernet cable into the Paging Server
Ethernet port. Plug the other end of the
Ethernet cable into your network. See the
figure on the left.
For Non-PoE, connect the Paging Server to
a 48VDC power supply. See the figure on
the left.
Note: Do not use both PoE and external
power.
Alternatively, you can use our 
part# 010867 PoE Power Injector 
as a cost-effective option.
If required, connect the earth grounding wire
to the Chassis Ground. See the figure on
the left.
