CyberData V3 Keypad Quick Start Manual
Outdoor intercom
Hide thumbs
Also See for V3 Keypad:
- Operation manual (65 pages) ,
- Installation quick reference (2 pages) ,
- Configuration manual (33 pages)
Advertisement
The IP Endpoint Company

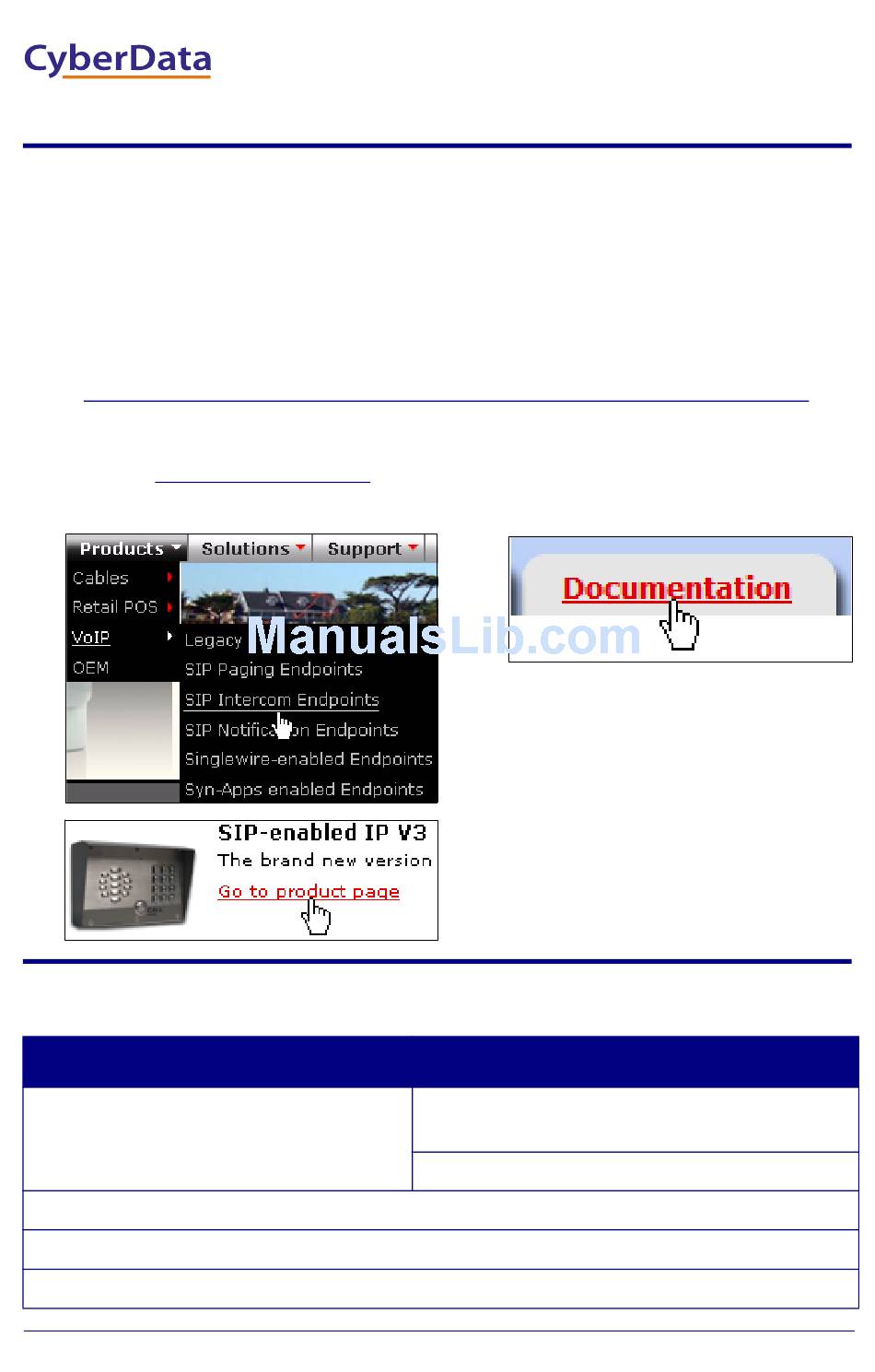

1.0 Out-of-Box and Prior to Final Installation
1.1. Verify that you have received all of the parts listed on the Installation Quick
Reference placemat.
1.2. Download the current manual, otherwise known as an Operation Guide,
which is available on the Documentation page at the following website
address:
http://www.cyberdata.net/products/voip/digitalanalog/intercomkeypadv3/docs.html
Note
You can also navigate to the Documentation page by going to
www.CyberData.net
the following figures:
1
2
2.0 Select Power Source
PoE Switch
Set PoE power type to Class 0 = 15.4W
Spanning Tree Protocol (STP) must be disabled or Portfast enabled
Quick Start Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

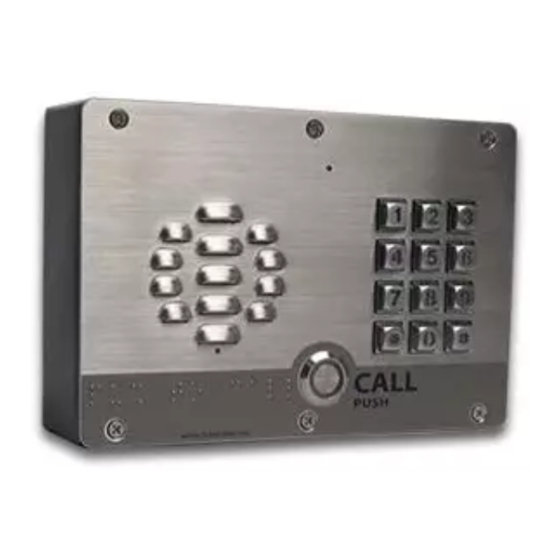

V3 Keypad Outdoor Intercom
Quick Start Guide
and following the steps that are indicated by
Make sure port is not in trunk mode
Set port to full duplex/ 100mbps
3
PoE Injector
CAT6 cable recommended—
for longer distances
Be sure you are using a non-PoE switch or port
930521A
