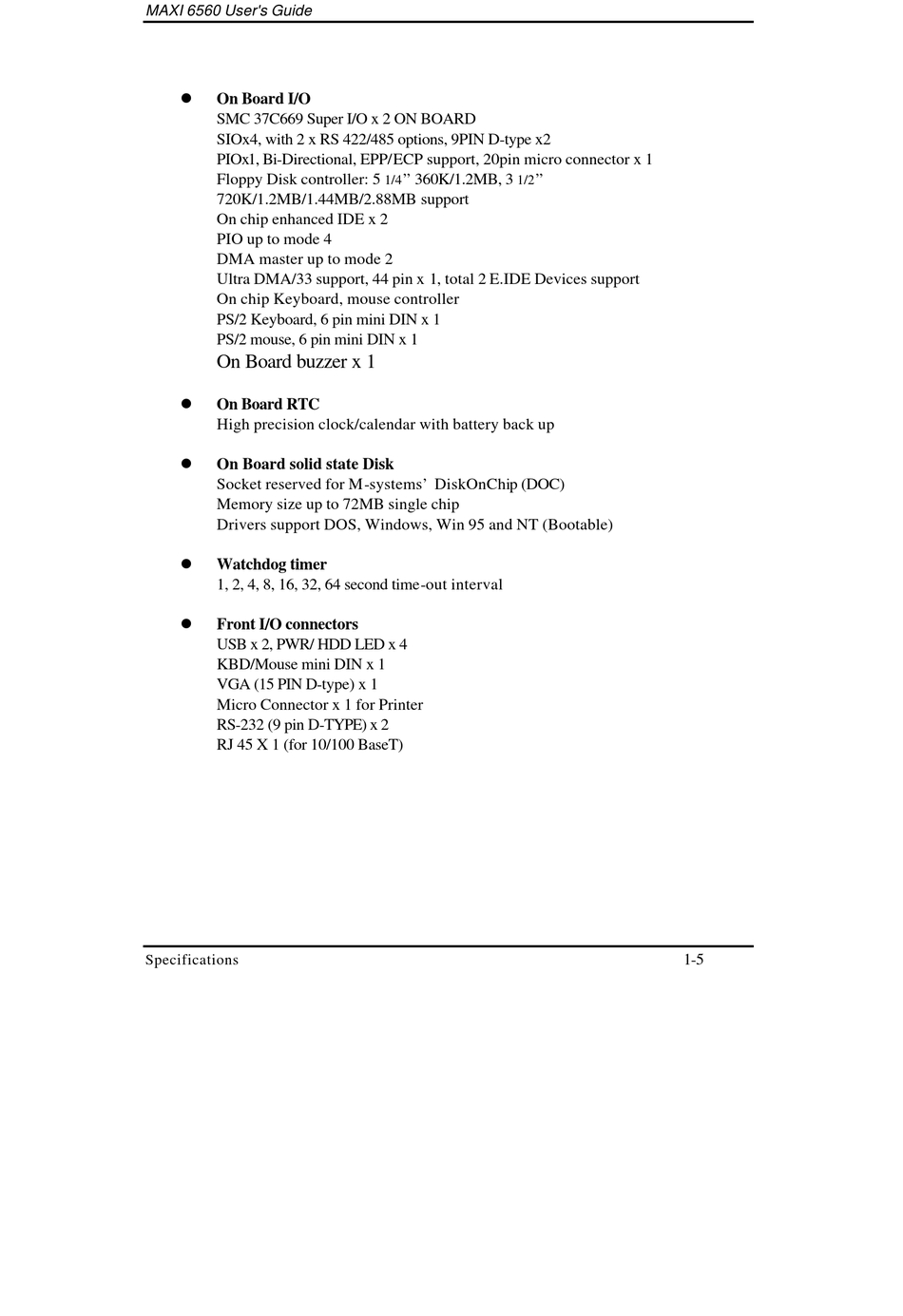

MAXI 6560 User's Guide
l
On Board I/O
SMC 37C669 Super I/O x 2 ON BOARD
SIOx4, with 2 x RS 422/485 options, 9PIN D-type x2
PIOx1, Bi-Directional, EPP/ECP support, 20pin micro connector x 1
Floppy Disk controller: 5
720K/1.2MB/1.44MB/2.88MB support
On chip enhanced IDE x 2
PIO up to mode 4
DMA master up to mode 2
Ultra DMA/33 support, 44 pin x 1, total 2 E.IDE Devices support
On chip Keyboard, mouse controller
PS/2 Keyboard, 6 pin mini DIN x 1
PS/2 mouse, 6 pin mini DIN x 1
On Board buzzer x 1
l
On Board RTC
High precision clock/calendar with battery back up
l
On Board solid state Disk
Socket reserved for M-systems' DiskOnChip (DOC)
Memory size up to 72MB single chip
Drivers support DOS, Windows, Win 95 and NT (Bootable)
l
Watchdog timer
1, 2, 4, 8, 16, 32, 64 second time-out interval
l
Front I/O connectors
USB x 2, PWR/ HDD LED x 4
KBD/Mouse mini DIN x 1
VGA (15 PIN D-type) x 1
Micro Connector x 1 for Printer
RS-232 (9 pin D-TYPE) x 2
RJ 45 X 1 (for 10/100 BaseT)
Specifications
" 360K/1.2MB, 3 "
1/4 1/2
1-5
