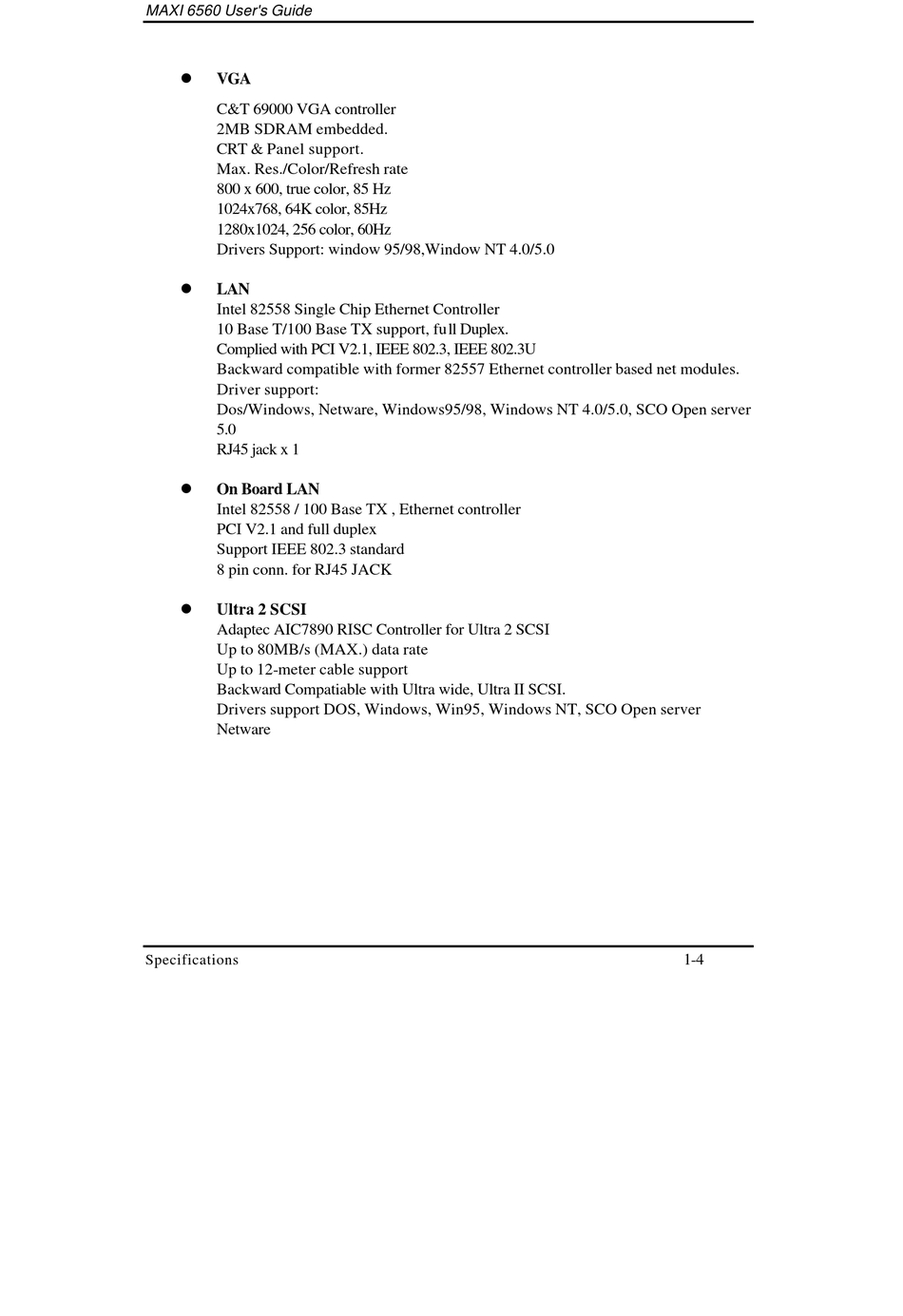

MAXI 6560 User's Guide
l
VGA
C&T 69000 VGA controller
2MB SDRAM embedded.
CRT & Panel support.
Max. Res./Color/Refresh rate
800 x 600, true color, 85 Hz
1024x768, 64K color, 85Hz
1280x1024, 256 color, 60Hz
Drivers Support: window 95/98,Window NT 4.0/5.0
l
LAN
Intel 82558 Single Chip Ethernet Controller
10 Base T/100 Base TX support, full Duplex.
Complied with PCI V2.1, IEEE 802.3, IEEE 802.3U
Backward compatible with former 82557 Ethernet controller based net modules.
Driver support:
Dos/Windows, Netware, Windows95/98, Windows NT 4.0/5.0, SCO Open server
5.0
RJ45 jack x 1
l
On Board LAN
Intel 82558 / 100 Base TX , Ethernet controller
PCI V2.1 and full duplex
Support IEEE 802.3 standard
8 pin conn. for RJ45 JACK
l
Ultra 2 SCSI
Adaptec AIC7890 RISC Controller for Ultra 2 SCSI
Up to 80MB/s (MAX.) data rate
Up to 12-meter cable support
Backward Compatiable with Ultra wide, Ultra II SCSI.
Drivers support DOS, Windows, Win95, Windows NT, SCO Open server
Netware
Specifications
1-4
