Installing SO-DIMM
Besides the on-board 64MB or ever 128MB SDRAM, the user could install
another SDRAM based SO-DIMM onto the on board socket
To install SO-DIMM, you have to press SO-DIMM module gently but firmly into
the SO-DIMM socket, with roughly 30-degree angle to the socket. Please note
that the dented portion should coincide with the protruding spot of the socket.
When the gold finger of the memory module is completely slid into the socket,
push the memory module onto the clip of the socket. With two clicks, the

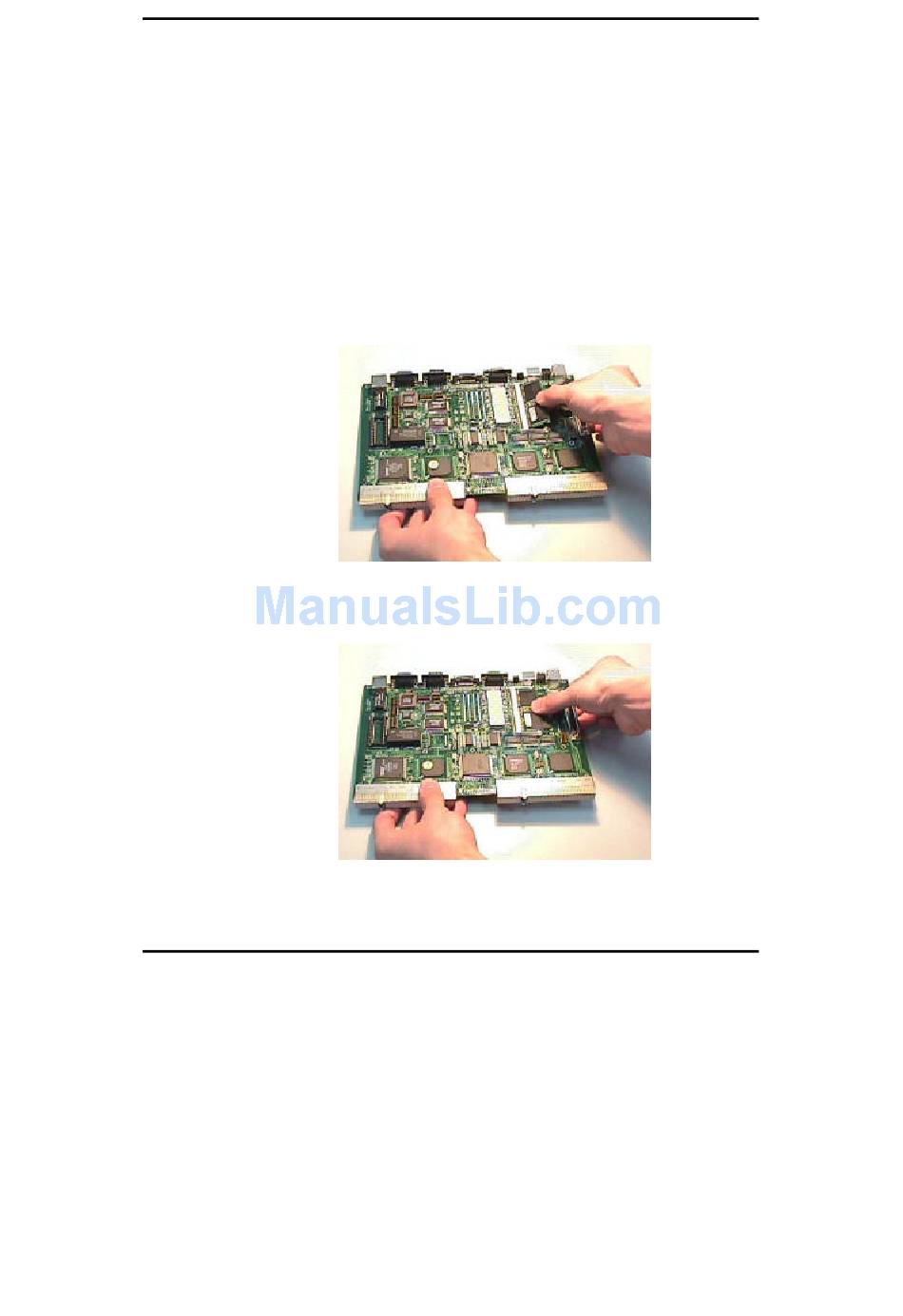

memory module is firmly held by SO-DIMM socket. (See figure 3-1 & 3-2)
Capability Expanding
Figure 3-1
Figure 3-2
