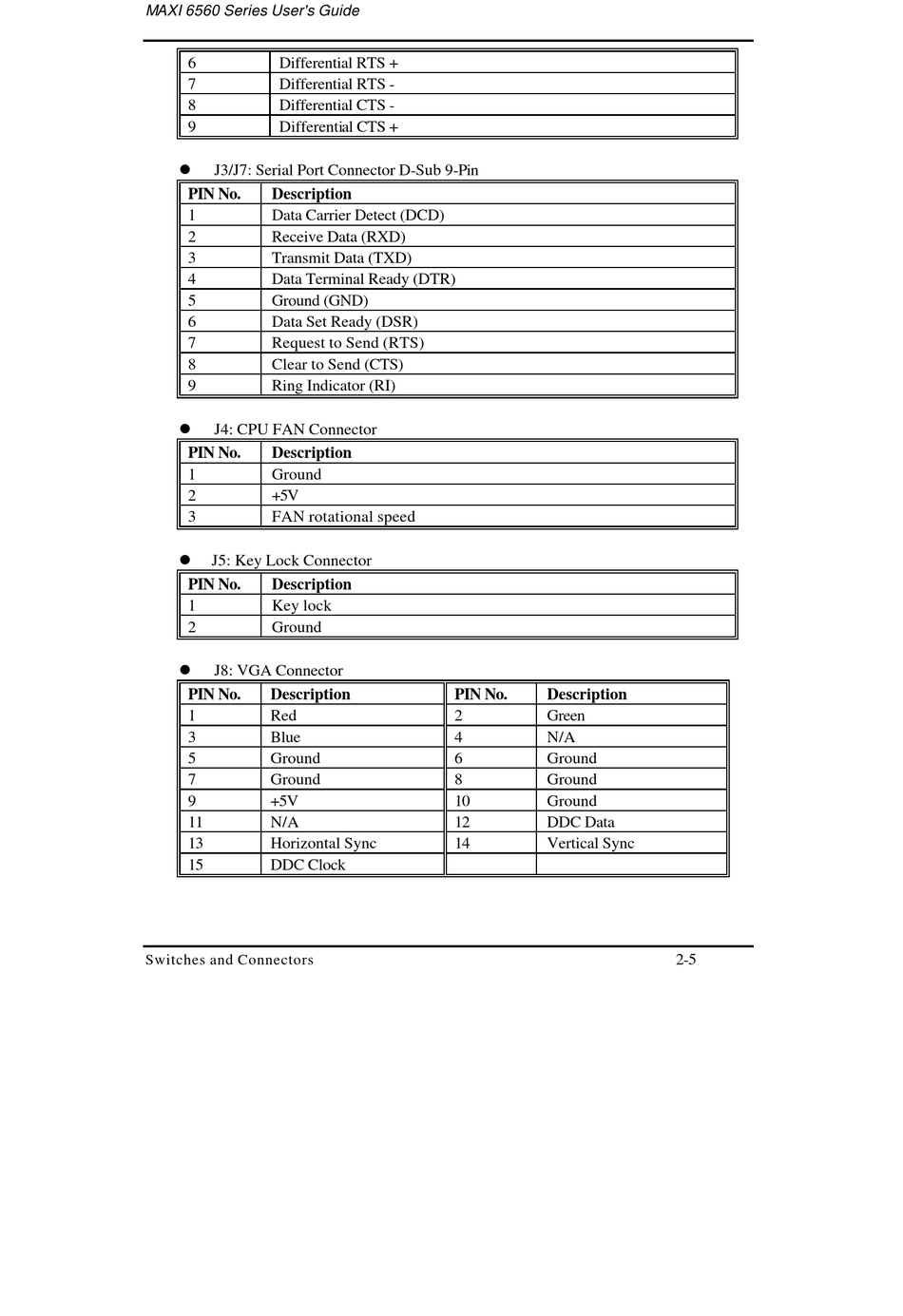

MAXI 6560 Series User's Guide
6 Differential RTS +
7 Differential RTS -
8 Differential CTS -
9 Differential CTS +
l
J3/J7: Serial Port Connector D-Sub 9-Pin
PIN No. Description
1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (RI)
l
J4: CPU FAN Connector
PIN No. Description
1 Ground
2 +5V
3 FAN rotational speed
l
J5: Key Lock Connector
PIN No. Description
1 Key lock
2 Ground
l
J8: VGA Connector
PIN No. Description
1 Red
3 Blue
5 Ground
7 Ground
9 +5V
11 N/A
13 Horizontal Sync
15 DDC Clock
Switches and Connectors
PIN No. Description
2 Green
4 N/A
6 Ground
8 Ground
10 Ground
12 DDC Data
14 Vertical Sync
2-5
