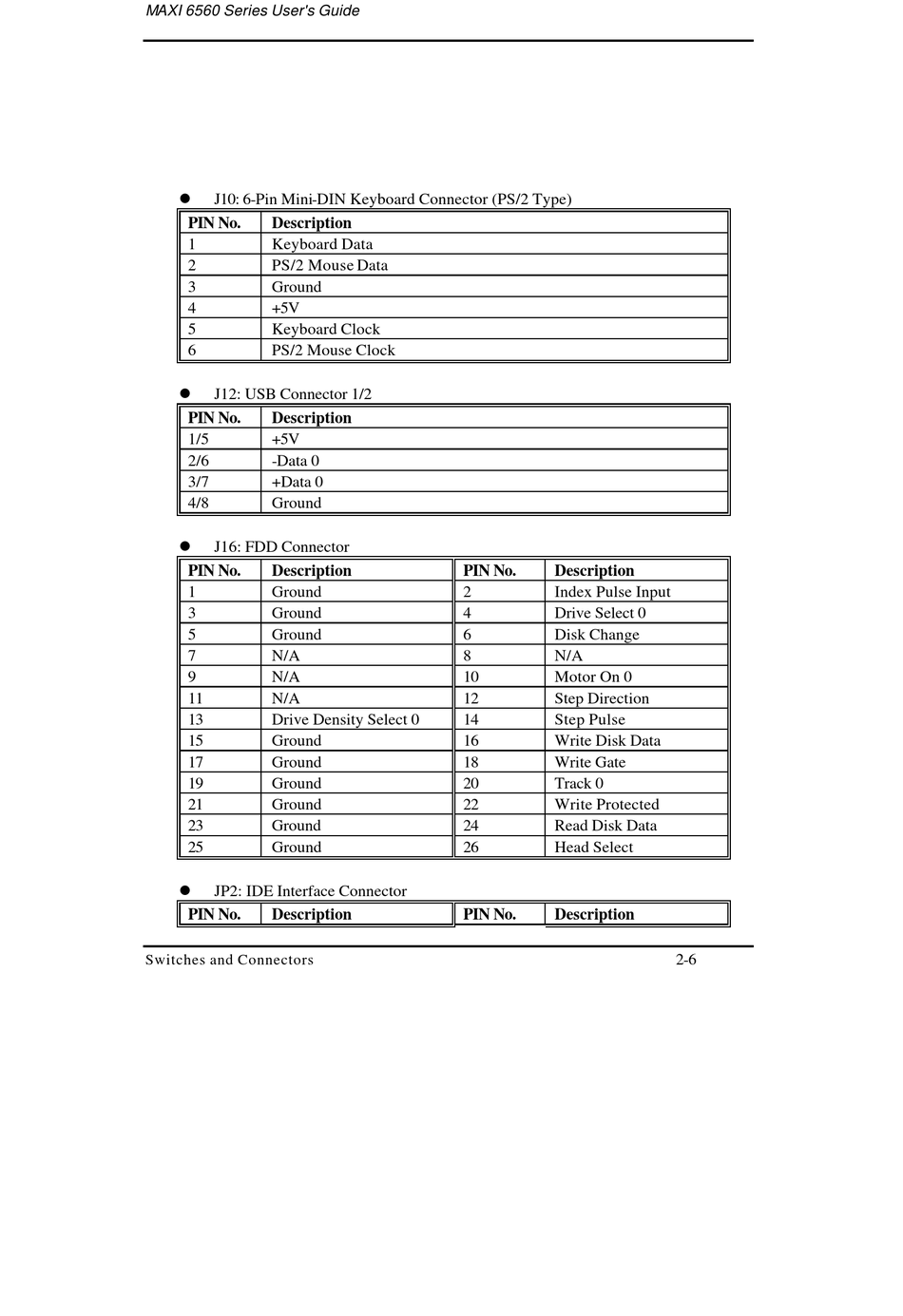

MAXI 6560 Series User's Guide
l
J10: 6-Pin Mini-DIN Keyboard Connector (PS/2 Type)
PIN No. Description
1 Keyboard Data
2 PS/2 Mouse Data
3 Ground
4 +5V
5 Keyboard Clock
6 PS/2 Mouse Clock
l
J12: USB Connector 1/2
PIN No. Description
1/5 +5V
2/6 -Data 0
3/7 +Data 0
4/8 Ground
l
J16: FDD Connector
PIN No. Description
1 Ground
3 Ground
5 Ground
7 N/A
9 N/A
11 N/A
13 Drive Density Select 0
15 Ground
17 Ground
19 Ground
21 Ground
23 Ground
25 Ground
l
JP2: IDE Interface Connector
PIN No. Description
Switches and Connectors
PIN No. Description
2 Index Pulse Input
4 Drive Select 0
6 Disk Change
8 N/A
10 Motor On 0
12 Step Direction
14 Step Pulse
16 Write Disk Data
18 Write Gate
20 Track 0
22 Write Protected
24 Read Disk Data
26 Head Select
PIN No. Description
2-6
