MAXI 6560 User's Guide

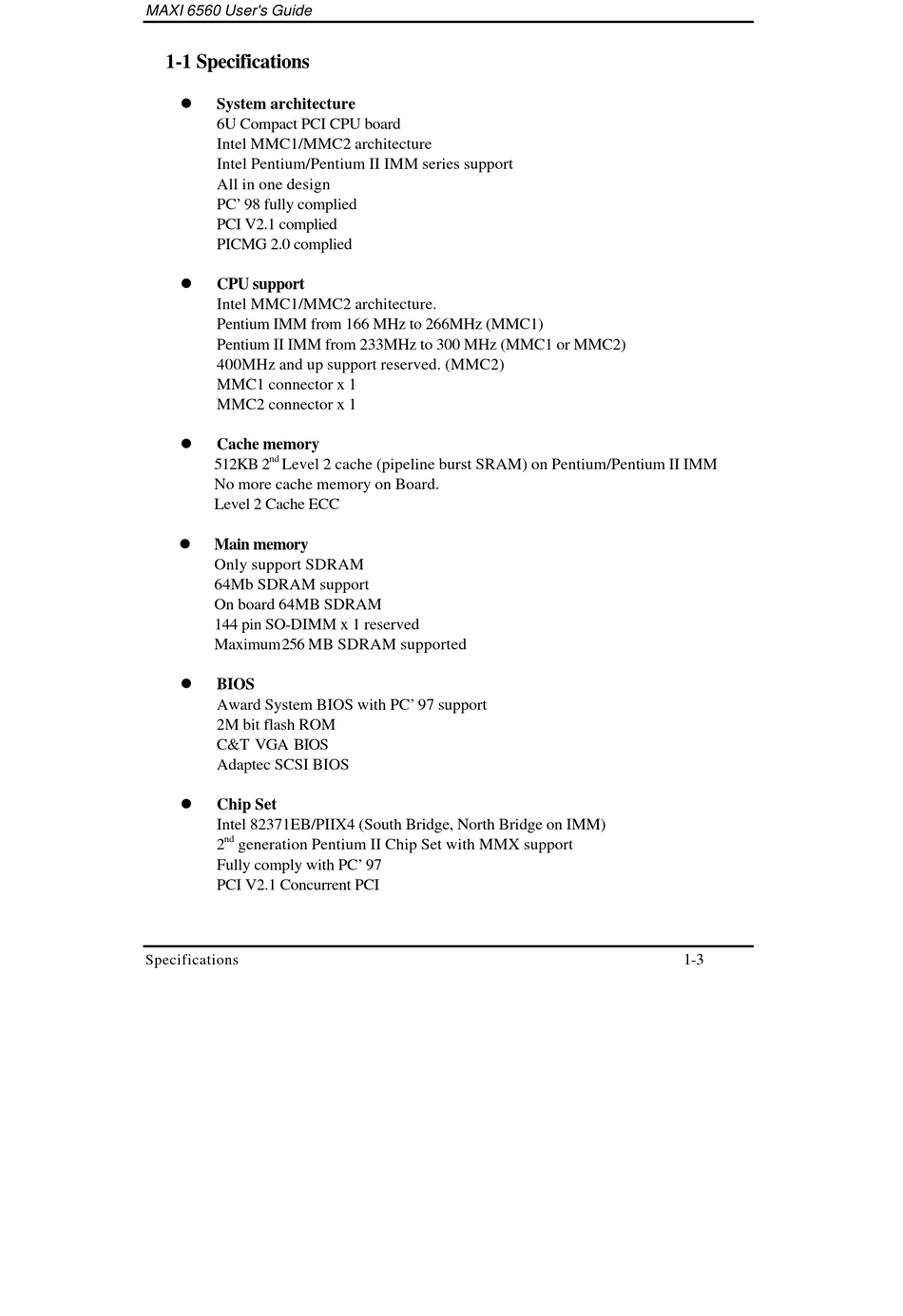

1-1 Specifications
l
System architecture
6U Compact PCI CPU board
Intel MMC1/MMC2 architecture
Intel Pentium/Pentium II IMM series support
All in one design
PC'98 fully complied
PCI V2.1 complied
PICMG 2.0 complied
l
CPU support
Intel MMC1/MMC2 architecture.
Pentium IMM from 166 MHz to 266MHz (MMC1)
Pentium II IMM from 233MHz to 300 MHz (MMC1 or MMC2)
400MHz and up support reserved. (MMC2)
MMC1 connector x 1
MMC2 connector x 1
l
Cache memory
nd
512KB 2 Level 2 cache (pipeline burst SRAM) on Pentium/Pentium II IMM
No more cache memory on Board.
Level 2 Cache ECC
l
Main memory
Only support SDRAM
64Mb SDRAM support
On board 64MB SDRAM
144 pin SO-DIMM x 1 reserved
Maximum 256 MB SDRAM supported
l
BIOS
Award System BIOS with PC'97 support
2M bit flash ROM
C&T VGA BIOS
Adaptec SCSI BIOS
l
Chip Set
Intel 82371EB/PIIX4 (South Bridge, North Bridge on IMM)
nd
2 generation Pentium II Chip Set with MMX support
Fully comply with PC'97
PCI V2.1 Concurrent PCI
Specifications
1-3
