MAXI 6560 Series User's Guide

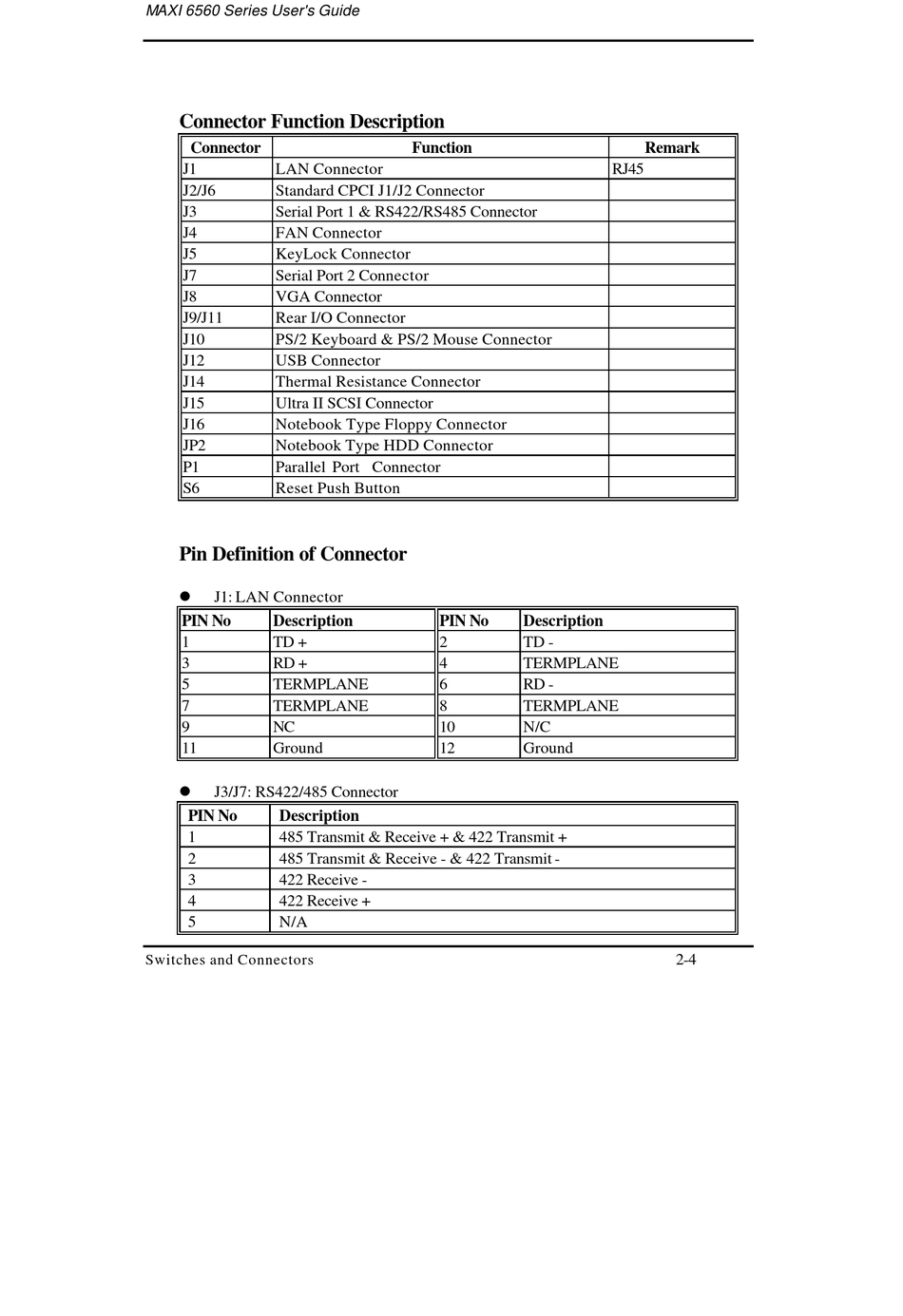

Connector Function Description
Connector
J1 LAN Connector
J2/J6 Standard CPCI J1/J2 Connector
J3 Serial Port 1 & RS422/RS485 Connector
J4 FAN Connector
J5 KeyLock Connector
J7 Serial Port 2 Connector
J8 VGA Connector
J9/J11 Rear I/O Connector
J10 PS/2 Keyboard & PS/2 Mouse Connector
J12 USB Connector
J14 Thermal Resistance Connector
J15 Ultra II SCSI Connector
J16 Notebook Type Floppy Connector
JP2 Notebook Type HDD Connector
P1 Parallel Port Connector
S6 Reset Push Button
Pin Definition of Connector
l
J1: LAN Connector
PIN No Description
1 TD +
3 RD +
5 TERMPLANE
7 TERMPLANE
9 NC
11 Ground
l
J3/J7: RS422/485 Connector
PIN No Description
1 485 Transmit & Receive + & 422 Transmit +
2 485 Transmit & Receive - & 422 Transmit -
3 422 Receive -
4 422 Receive +
5 N/A
Switches and Connectors
Function
PIN No Description
2 TD -
4 TERMPLANE
6 RD -
8 TERMPLANE
10 N/C
12 Ground
Remark
RJ45
2-4
