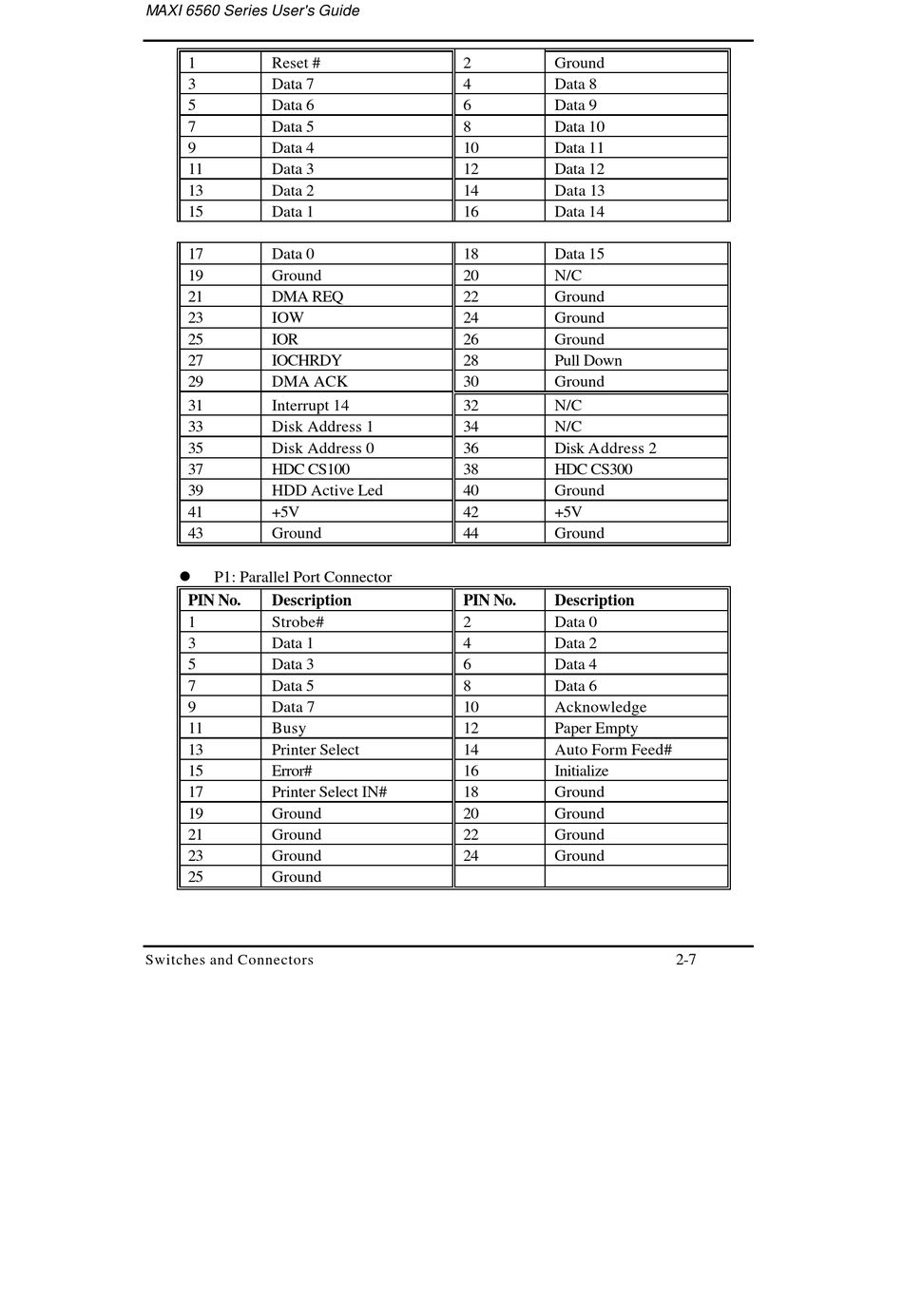

MAXI 6560 Series User's Guide
1 Reset #
3 Data 7
5 Data 6
7 Data 5
9 Data 4
11 Data 3
13 Data 2
15 Data 1
17 Data 0
19 Ground
21 DMA REQ
23 IOW
25 IOR
27 IOCHRDY
29 DMA ACK
31 Interrupt 14
33 Disk Address 1
35 Disk Address 0
37 HDC CS100
39 HDD Active Led
41 +5V
43 Ground
l
P1: Parallel Port Connector
PIN No. Description
1 Strobe#
3 Data 1
5 Data 3
7 Data 5
9 Data 7
11 Busy
13 Printer Select
15 Error#
17 Printer Select IN#
19 Ground
21 Ground
23 Ground
25 Ground
Switches and Connectors
2 Ground
4 Data 8
6 Data 9
8 Data 10
10 Data 11
12 Data 12
14 Data 13
16 Data 14
18 Data 15
20 N/C
22 Ground
24 Ground
26 Ground
28 Pull Down
30 Ground
32 N/C
34 N/C
36 Disk Address 2
38 HDC CS300
40 Ground
42 +5V
44 Ground
PIN No. Description
2 Data 0
4 Data 2
6 Data 4
8 Data 6
10 Acknowledge
12 Paper Empty
14 Auto Form Feed#
16 Initialize
18 Ground
20 Ground
22 Ground
24 Ground
2-7
