5) Repeat the steps 3) and 4) to remove the toner cartridges for each color.

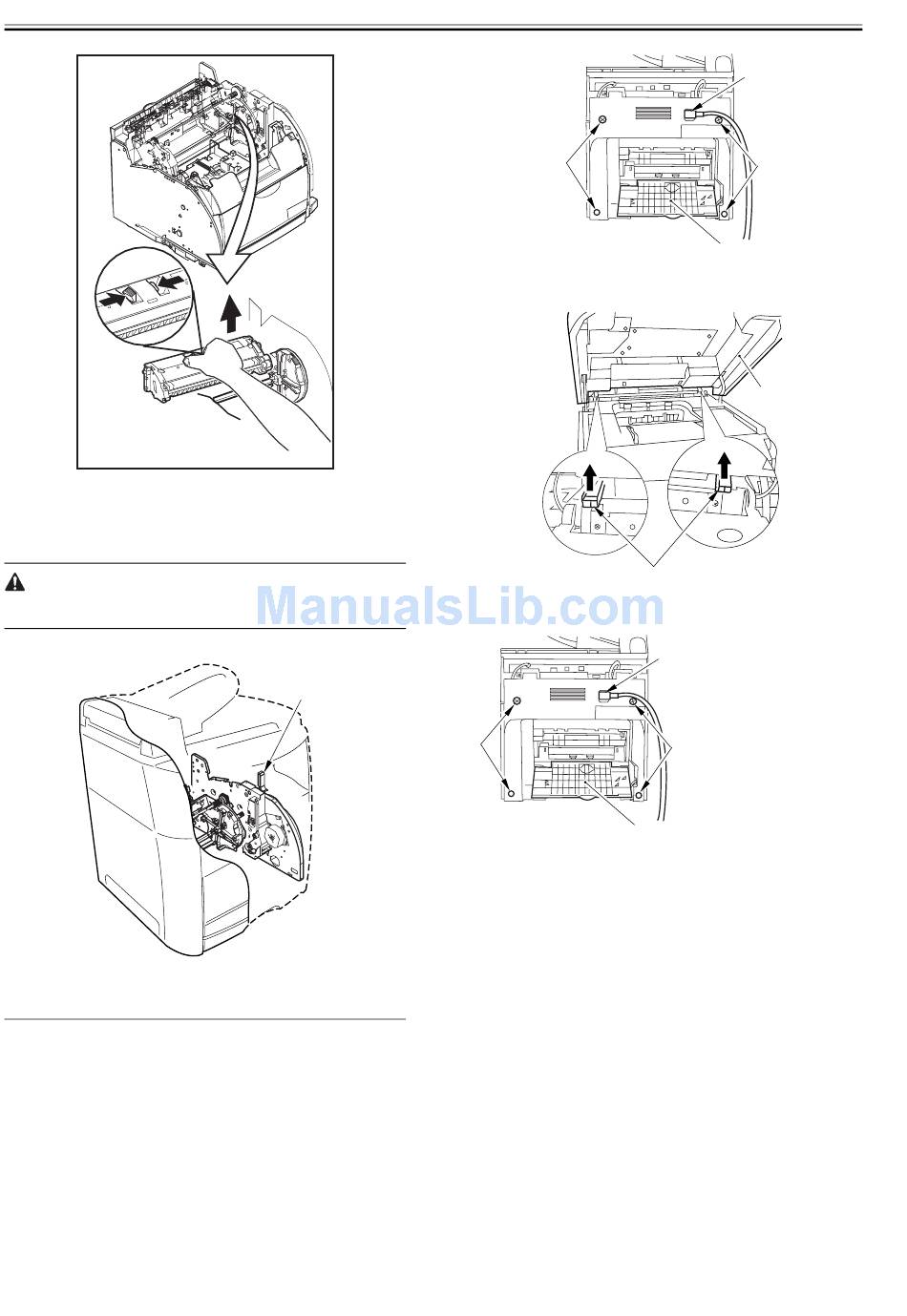

3.1.3 Drum cartridge removal

1) Open the top cover unit and remove the drum cartridge.
When removing the drum cartridge with the top cover unit detached, be
sure to pull up the drive release lever [1]. The drum cartridge cannot be re-
moved otherwise.
2) Remove the drum cartridge from the printer.

3.2 EXTERNAL AND CONTROLS SYSTEM

3.2.1 Front Cover

3.2.1.1 Removing the Cassettes

1) Hold the grip, and take out the cassette.

3.2.1.2 Removing the Rear Cover

1) Disconnect the cable [1] of the power supply assembly.
2) Open the face-up cover [2], and remove the 4 screws [3] of the rear cover.
3-2
F-3-3
[1]
F-3-4
[3]
3) Open the reader assembly [4], and lift to free the 2 claws [5].
0007-8338
4) Close the reader assembly; then, detach the rear cover[1].
[3]
F-3-7
3.2.1.3 Removing the Right Cover (with the reader
assembly intact)
1) Free the cable [1] of the reader assembly.
0007-6971
0007-6981
[1]
[3]
[2]
F-3-5
[4]
[5]
F-3-6
[1]
[3]
[2]
0007-6982
