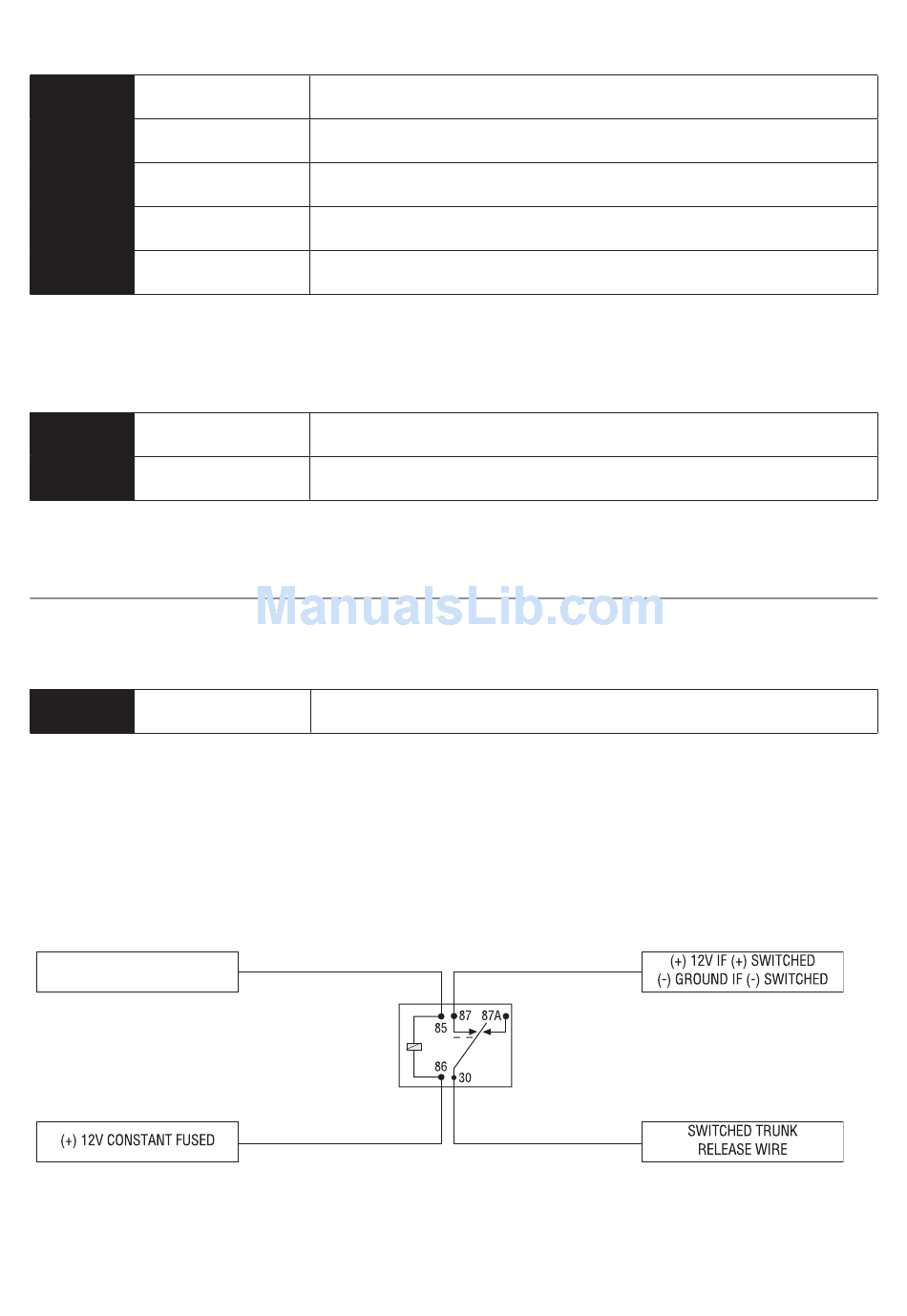

➤ Remote start harness, (H3) 5-pin connector

H3/1 BLACK/WHITE
H3/2 VIOLET/WHITE
H3/3 BROWN
H3/4 GRAY
H3/5 BLUE/WHITE

➤ AUX 4, Horn (H4), 2-pin connector

H4/1 ORANGE/BLACK
H4/2 BROWN

Wire connection guides

➤ Primary harness (H1), 12-pin connector

H1/1 RED/WHITE
When the system receives the code controlling trunk release output for longer
than 1.5 seconds, the red/white wire will supply output as long as the transmis-
sion continues. This is typically used to operate a trunk/hatch release or other
relay-driven function.
H1/1 RED/WHITE
© 2009 Directed Electronics. All rights reserved.
(-) NEUTRAL SAFETY SWITCH INPUT
TACHOMETER INPUT WIRE
(+) BRAKE SHUTDOWN INPUT WIRE
(-) HOOD PINSWITCH INPUT, ZONE 6
(-) 200 mA 2ND STATUS/REAR DEFOGGER - Latched Pulsed
(-) 200mA AUX 4 OUTPUT
(-) 200 mA HORN HONK OUTPUT
(-) 200mA AUX TRUNK RELEASE OUTPUT
15
