Remote Start, (H3) Secondary Harness - Python 513 Installation Manual

➤ Remote start, (H3) secondary harness

H3/1 BLACK/WHITE (-) NEUTRAL SAFETY SWITCH INPUT
Connect this wire to the provided toggle (override) switch as shown in figure
A. Connect the other wire from the toggle switch to the park/neutral switch in
the vehicle. This wire will test with ground with the gear selector either in PARK
or NEUTRAL. This will prevent the vehicle from accidentally being started while
in a drive gear. This input MUST rest at ground in order for the remote start
system to operate. Connected properly the vehicle will only start while in PARK
or NEUTRAL.
In some vehicles, the park/neutral position switch activates a factory starter lock
out that will not allow the starter to operate in a drive gear. In these vehicles,
connect this wire to the toggle switch as shown in figure B. Connect the other
wire from the toggle switch to chassis ground.
Important: Always perform the Safety Check section of this installation guide to
verify that the vehicle cannot be started in ANY drive gear and that the override
switch is functioning properly.

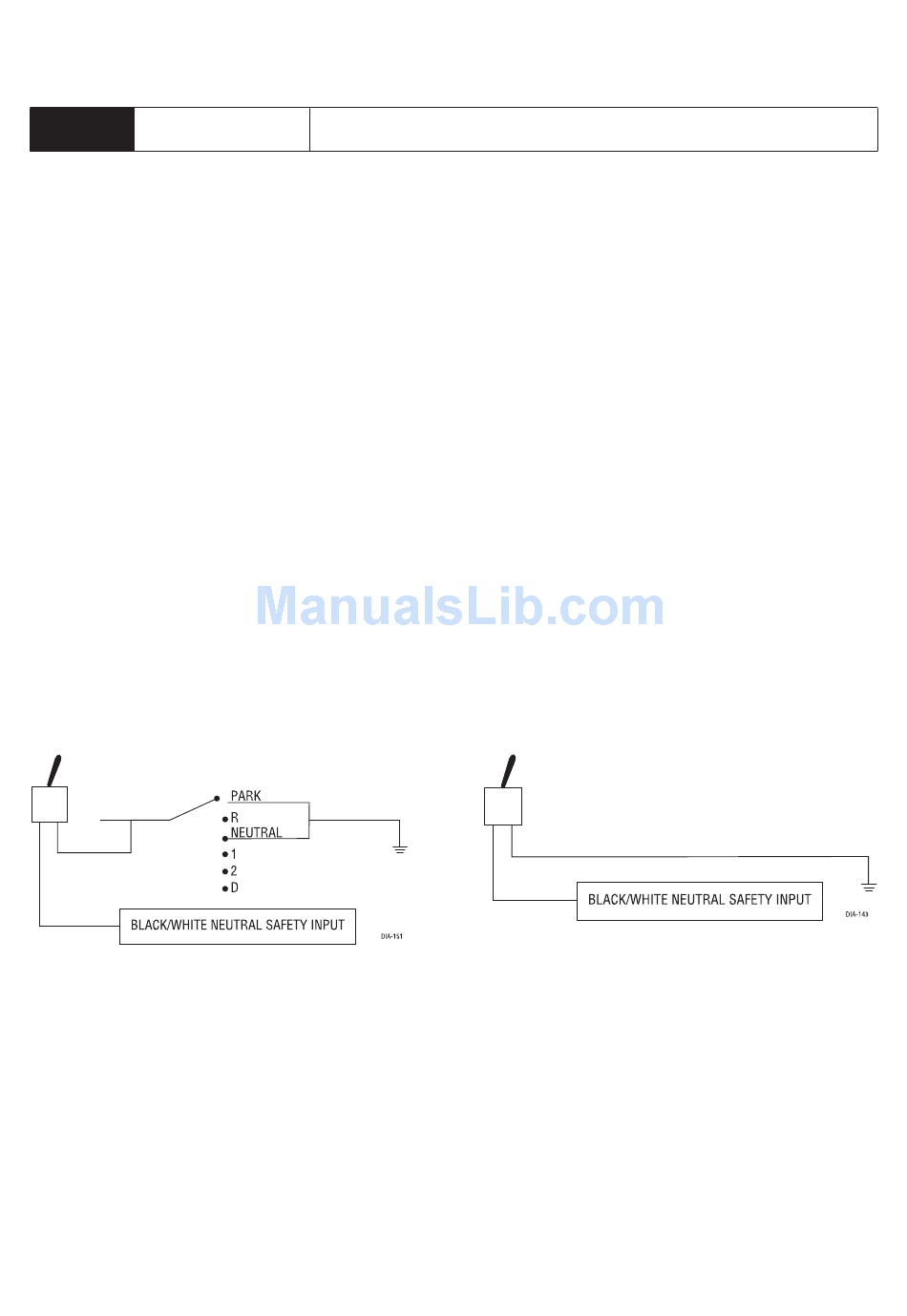

Figure A Figure B
