Python 513 Installation Manual page 18

H1/7 BLUE
This input responds to negative input with an instant trigger, it is ideal for a trunk
pin. It can also be used with Directed single-stage sensors. This wire will report
Zone 1.
H1/8 GREEN

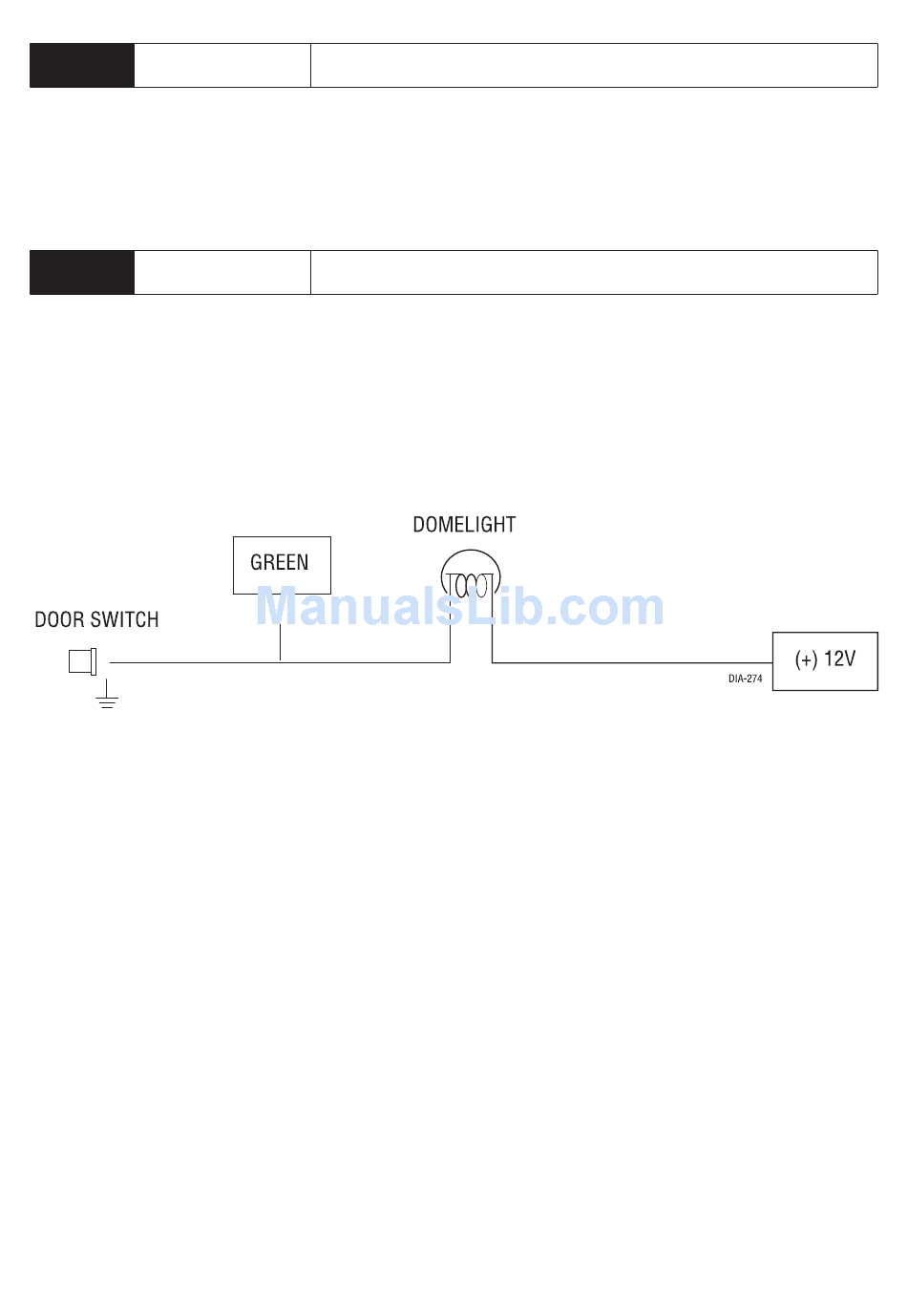

Most vehicles use negative door trigger circuits. Connect the green wire to a
wire which shows ground when any door is opened. In vehicles with factory
delays on the dome light circuit, there is usually a wire that is unaffected by the
delay circuitry. This wire reports Zone 3.
18
(-) INSTANT TRIGGER , ZONE 1
(-) DOOR TRIGGER INPUT, ZONE 3
