Transmitter/Receiver Learn Routine - Python 513 Installation Manual

Transmitter/receiver Learn Routine™

The system comes with transmitters that have been taught to the receiv-
er. The receiver can store up to 4 different transmitter codes in memory.
If the learn routines have been programmed previously using the Bit-
writer, the routines may be locked. Before proceeding with reprogram-
ming the learn routines, they must be unlocked with the Bitwriter. This
cannot be done manually with the Valet switch.
Bitwriters require software v2.7. Bitwriters with date code of 6A or older require
an IC upgrade (p/n 998M). Some Bitwriters with a date code of 6B do not
require the IC upgrade, refer to Tech Tip # 1112 for more information.
Use the following learn routine to add transmitters to the system:
The Valet/Program switch, plugged into the blue port, is used for programming.
There is a basic sequence to remember whenever programming this unit: Door,
Key, Choose, Transmit and Release.
once more and hold it. The LED flashes and the siren chirps to confirm the se-
lected functional step. Do not release the Program switch.
36

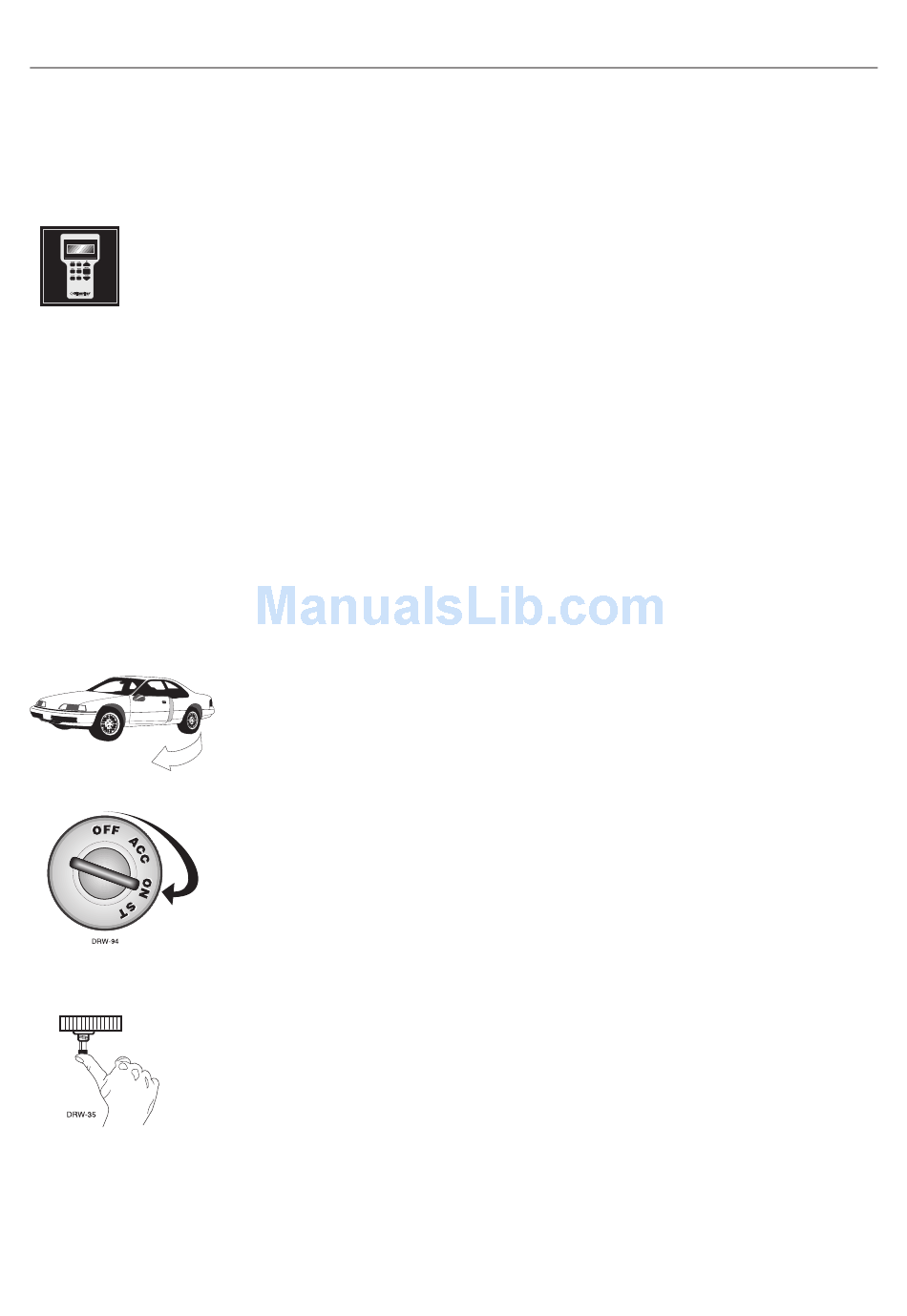

1. Open a door. (The GREEN wire, h1/8, or the
VIOLET, H1/6 must be connected.)
2. Insert the key. Turn the ignition to the ON
position. The heavy gauge pink wire must be con-
nected.
3. Choose. Within 10 seconds, press and release the
Program switch corresponding to the number of
the desired function step listed in the following table.
Once you have selected the function step, press the switch
© 2009 Directed Electronics. All rights reserved.
