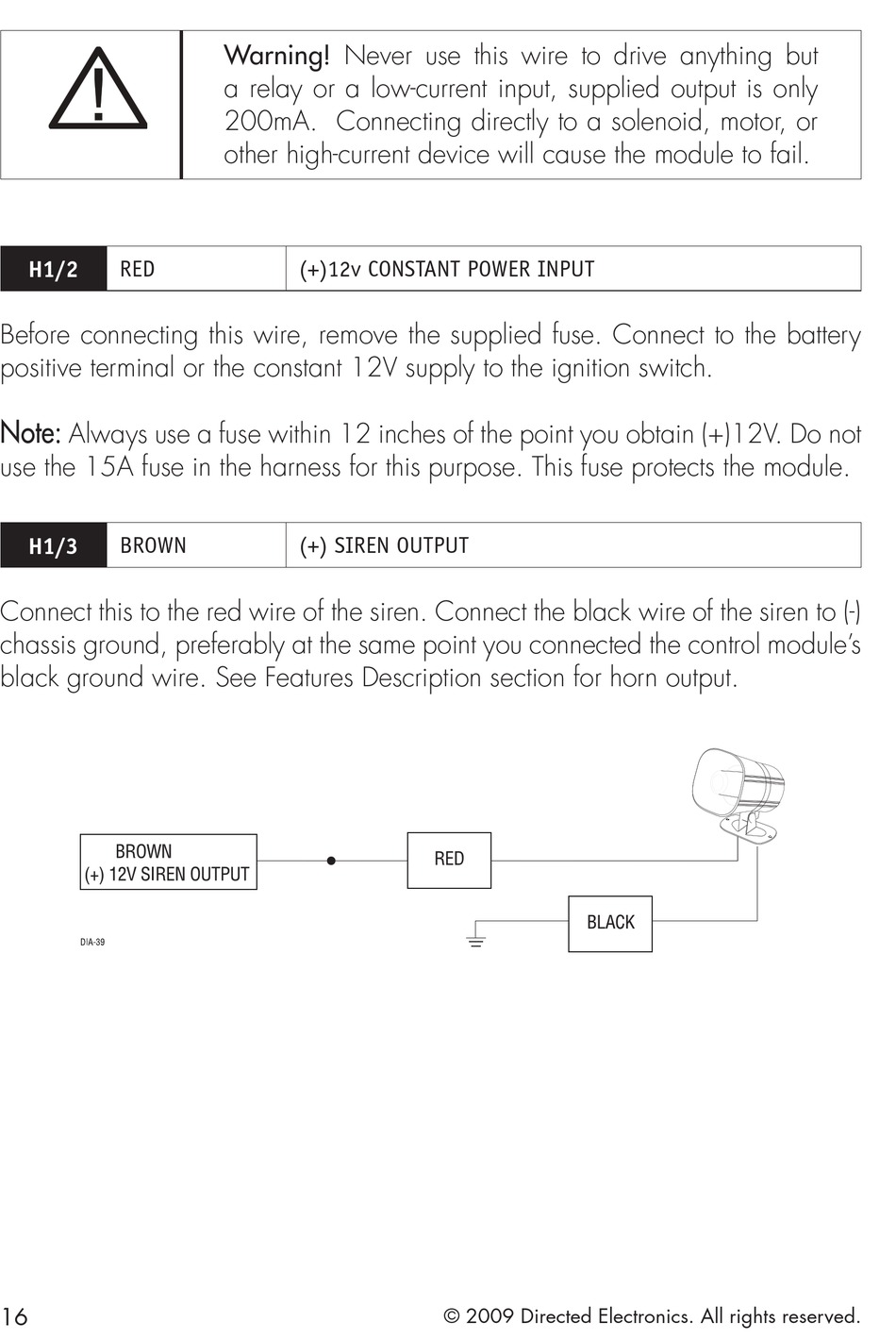

Python 513 Installation Manual page 16

H1/2 RED
Before connecting this wire, remove the supplied fuse. Connect to the battery
positive terminal or the constant 12V supply to the ignition switch.
Note:
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not
use the 15A fuse in the harness for this purpose. This fuse protects the module.
H1/3 BROWN
Connect this to the red wire of the siren. Connect the black wire of the siren to (-)
chassis ground, preferably at the same point you connected the control module's
black ground wire. See Features Description section for horn output.
Sat mode,
bank selector
Category
Control
Toggles
Scan mode
16
Warning! Never use this wire to drive anything but
a relay or a low-current input, supplied output is only
200mA. Connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.
(+)12v CONSTANT POWER INPUT
(+) SIREN OUTPUT
Bank and
Tune mode
present
indicator
indicator
REW
1
11:53
CATEGORY CH
XM1-1 CH-001
FF PLAY/PROG
2 3
SCAN
VOL
AUDIO
PWR
© 2009 Directed Electronics. All rights reserved.
