Connecting a VGA-type Monitor
To enable the use of a VGA-type monitor with the HD3000 for the first
time, you must first connect the HD3000 to a TV monitor and change the
Monitor settings.

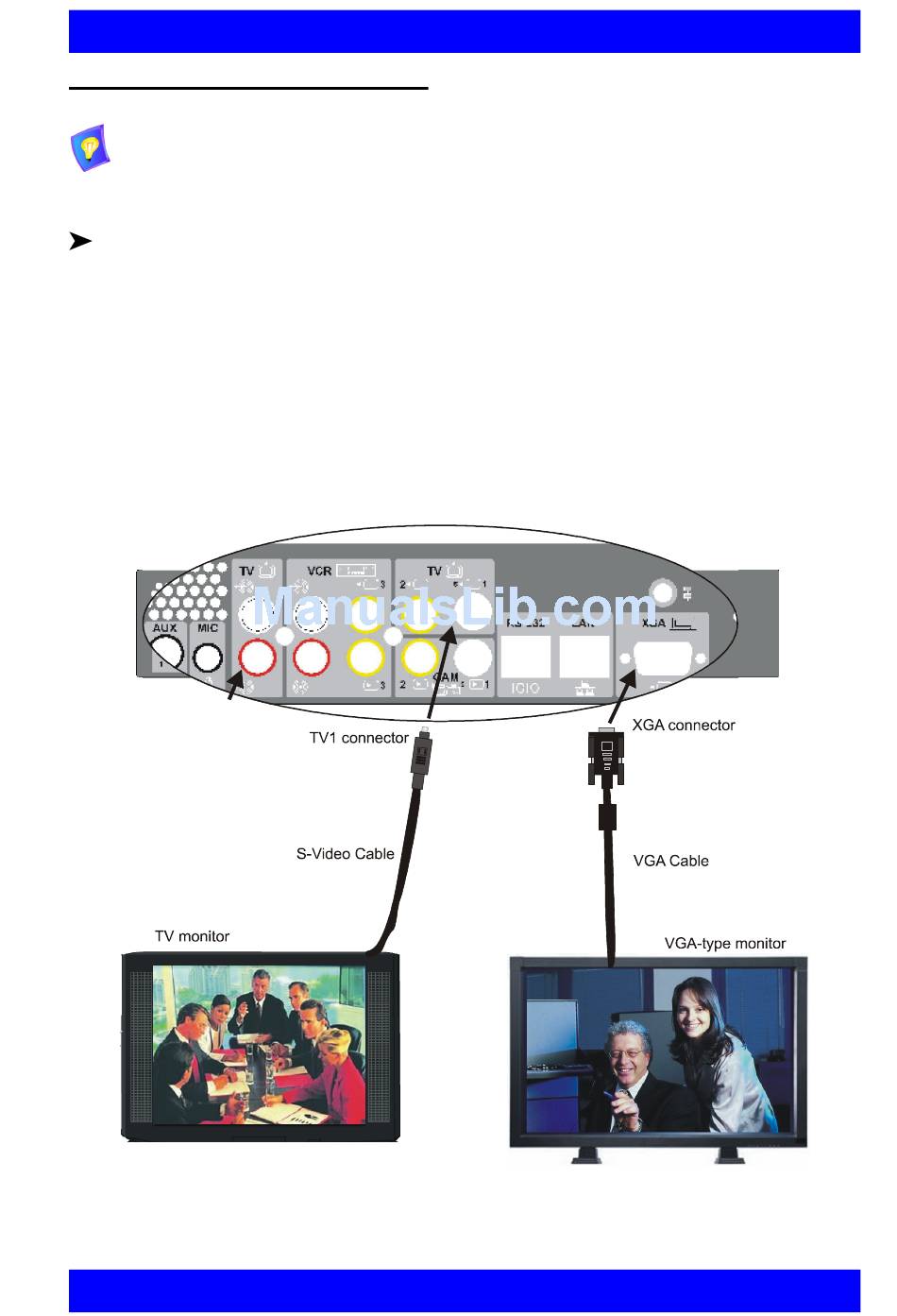

To connect a VGA-type monitor to the HD3000
1. Place the unplugged VGA-type monitor on the cart, if provided, or on a
sturdy surface near the HD3000 main unit. Then place the unplugged TV
monitor near the first monitor.
2. Connect the VGA-type monitor's VGA cable (15-pin) to the HD3000's
XGA connector.
3. Connect the S-Video cable (CAB90051) between the TV monitor's Video
In connector and the HD3000's TV1 connector.
Emblaze VCON HD3000 User's Guide
Connecting VGA-type and TV Monitors
Chapter 2 Setting Up HD3000
13
