Enabling H.239 Dual Streaming - Emblaze-VCON HD3000 User Manual

Enabling H.239 Dual Streaming

The H.239 standard enables the HD3000 to convert PC application graphics into a
separate media stream and transmit it parallel to the video stream. Video systems
supporting H.239 display shared data and remote video in separate windows.
Systems not supporting H.239 display only the shared data in a single window.

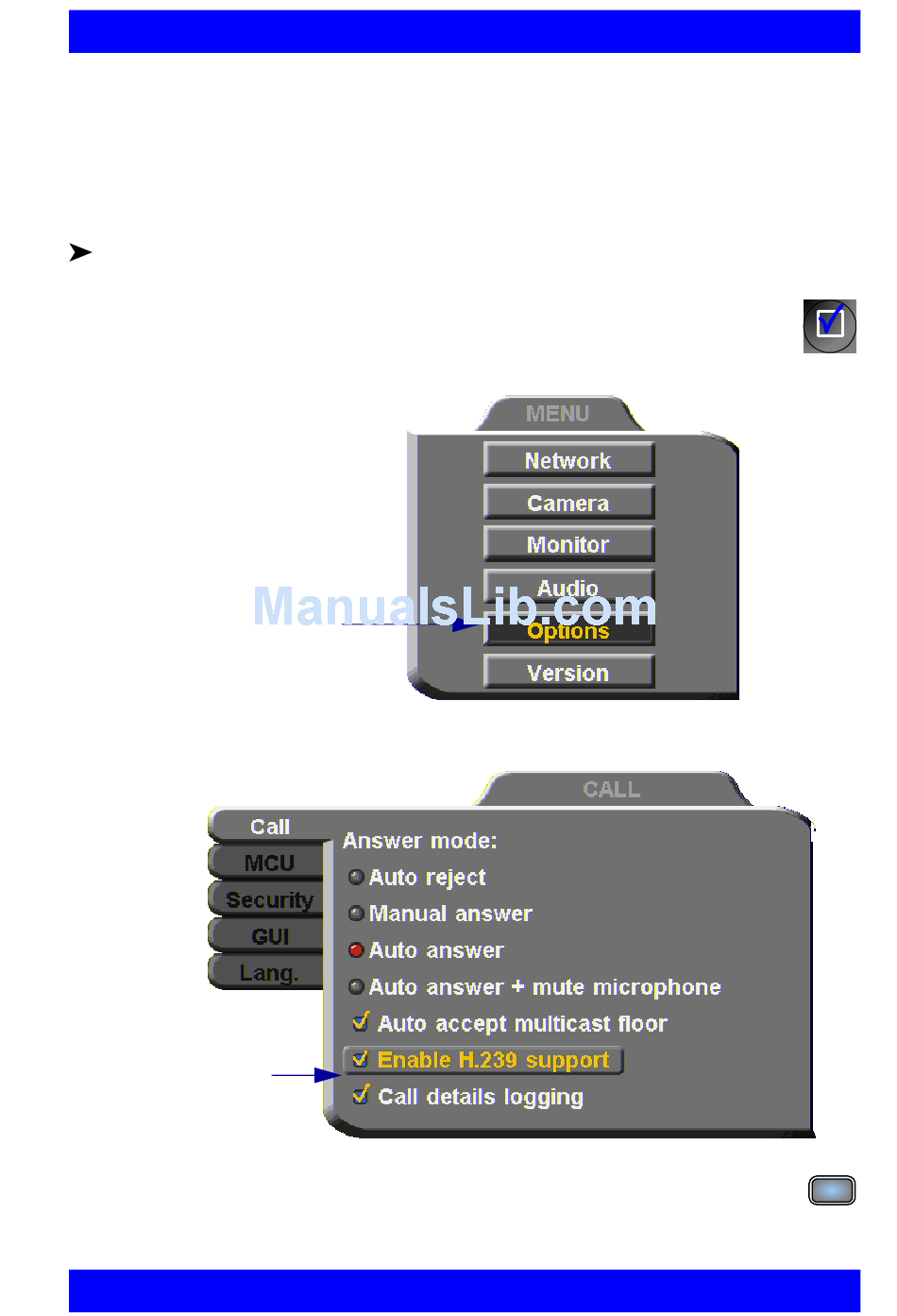

To enable H.239 streaming
1. Press <Menu>. The main Menu opens. Select Options.
Select Options.
2. Select Enable H.239 Support.
Select Enable
H.239 Support.
3. Press <OK> to apply changes and close the dialog box.
Emblaze VCON HD3000 User's Guide
Chapter 9 Data and Application Sharing
Menu
OK
123
