1.1 Power Supply

STM3220F-EVAL evaluation board is designed to be powered by 5V DC power supply and to
be protected by PolyZen from wrong power plug-in event. It's possible to configure the
evaluation board to use any of following Four sources for the power supply.
■
5V DC power adapter connected to CN18, the Power Jack on the board (PSU on silk
screen for Power Supply Unit).
■
5V DC power with 500mA limitation from CN8, the USB OTG FS Micro-AB connector
(FS on silkscreen).
■
5V DC power with 500mA limitation from CN9, the USB OTG HS Micro-AB connector
(HS on silkscreen).
■
5V DC power from both CN1 and CN3, the extension connector for daughter board
(DTB for Daughter Board on silkscreen).
The power supply is configured by setting the related jumpers JP17, JP18 & JP19 as
described in table 1.

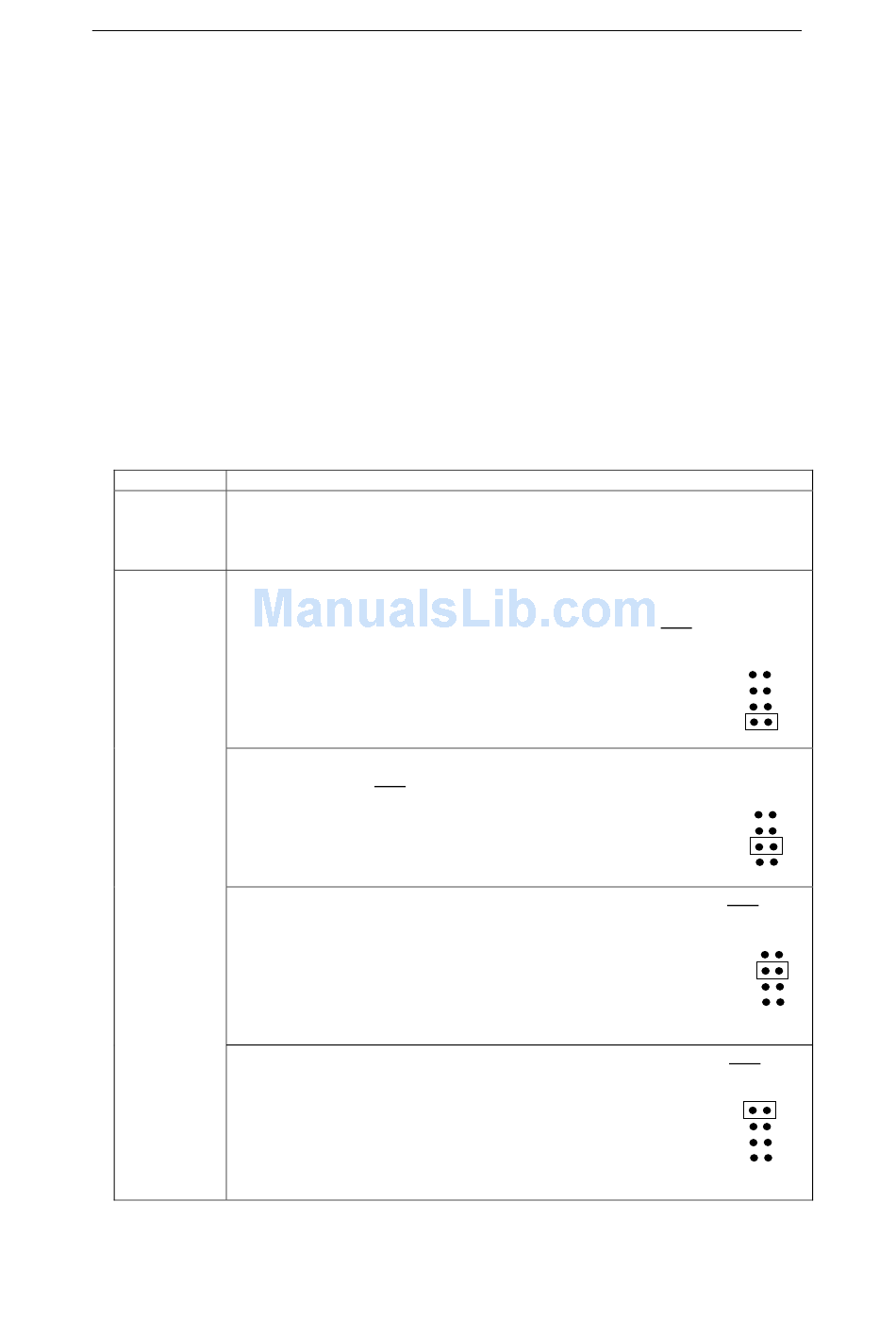

Table 1 Power related Jumpers
Jumper Description
JP17 is used to measure MCU current consumption manually by multi-
meter.
JP17
Default setting: Fitted
JP18 is used to select one of the four possible power supply resources.
For power supply jack(CN18) to the STM3220F-EVAL only, JP18 is set
as shown to the right:
JP18 (Default Setting)
For power supply from the daughter board connectors(CN1 and CN3) to
STM3220F-EVAL only, JP18 is set as shown to the right:
For power supply from USB OTG FS (CN8) to STM3220F-EVAL only,
JP18 is set as shown to the right:
For power supply from USB OTG HS (CN9) to STM3220F-EVAL only,
JP18 is set as shown to the right:
Qing SHAO
STM3220F-EVAL Board
Page 6
HS
FS
DTB
PSU
HS
FS
DTB
PSU
HS
FS
DTB
PSU
HS
FS
DTB
PSU
