Motor Control Connector Cn5 - ST STM3220F-EVAL User Manual

28 PG4
30 GND
32 PD1
34 PC12
36 PC10
38 PA14
40 PI3
Note: The 0ohm resister will added on PCB rev.B for PI11(ULPI_DIR), PA5(ULPI_CLK) &
PH4(ULPI_NXT) usage on daughter board. For ULPI[0..7], it's in input status for PHY
USB3300 by default, so, 0ohm resister is not needed, TBC.

2.2 Motor control connector CN5

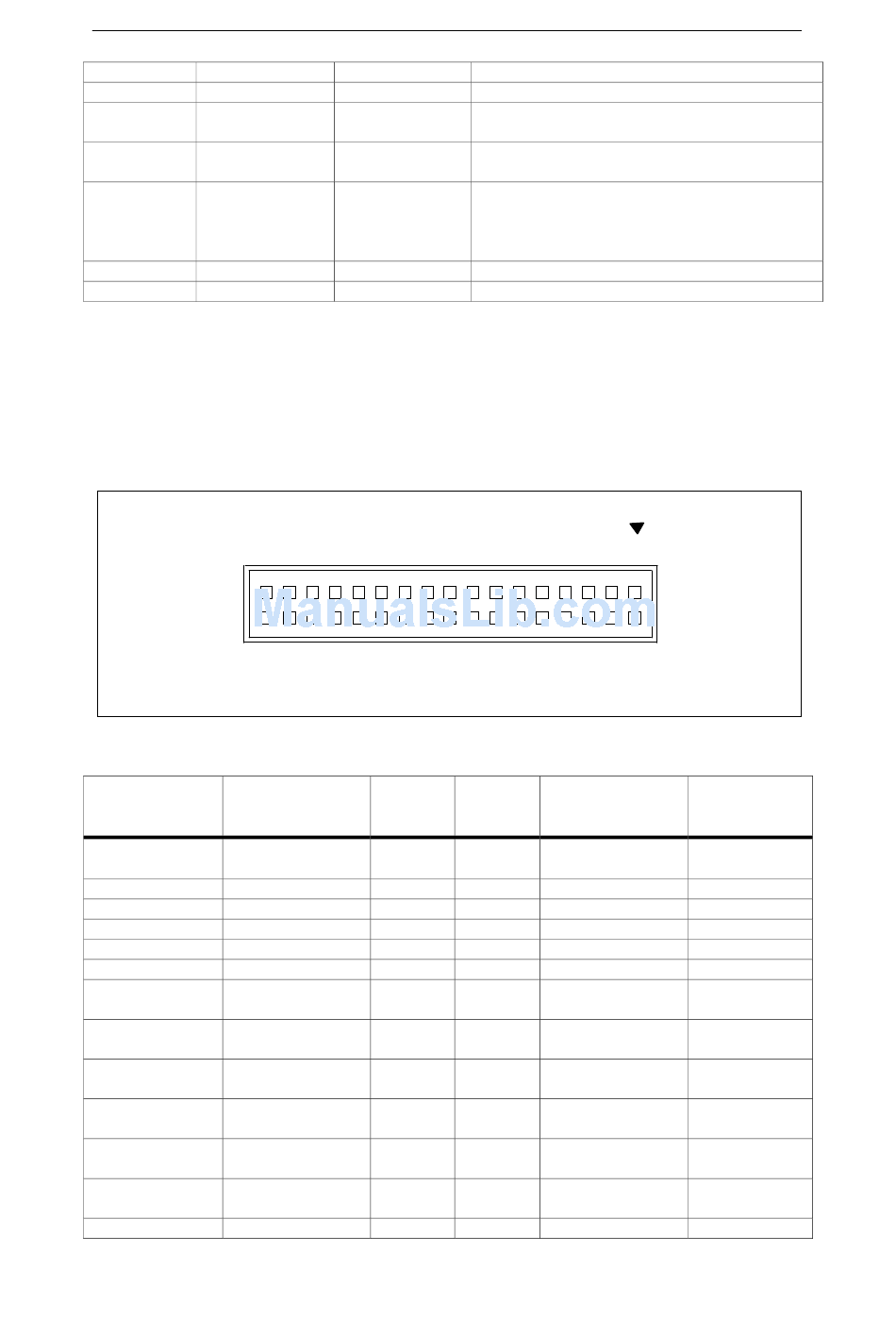

Figure 6 Motor Control connector CN5
33 31 29 27 25 23 21 19 17 15 13 11 9 7 5
34 32 30 28 26 24 22 20 18 16 14 12 10 8 6
Table 21 Motor Control connector CN5
Description Pin of
STM32F207IFT6
EMERGENCY PI4
STOP
PWM-UH PI5
PWM-UL PH
PWM-VH PI6
PWM-VL PH14
PWM-WH PI7
PWM-WL PH15
PHASE A PF8
CURRENT
PHASE B PF9
CURRENT
PHASE C PF10
CURRENT
NTC BYPASS PH8
RELAY
DISSIPATIVE PC8
BRAKE PWM
+5V power +5V
Qing SHAO
FSMC_A14 -
- -
FSMC_D3 & JP14 open
CAN1_TX
MicroSDCard_ Remove MicroSD card from CN6
CLK
MicroSDCard_ Remove MicroSD card from CN6
D2 &
RS232/IrDA_T
X
TCK/SWCLK -
I2S_DIN -
Pin Pin
number number
of CN17 of CN17
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
Page 21
STM3220F-EVAL Board
3 1
4 2
Viewed from above PCB
Pin of Description
STM32F207IFT6
GND
GND
GND
GND
GND
GND
PF6 BUS
VOLTAGE
GND
GND
GND
GND
GND
PF7 Heatsink
03/06/2009
