2.15 TFT LCD connector CN19
One 34-pin male header CN19 is available on the board to connect LCD module board
MB785. Please refer to
2.16 Smart card connector CN20

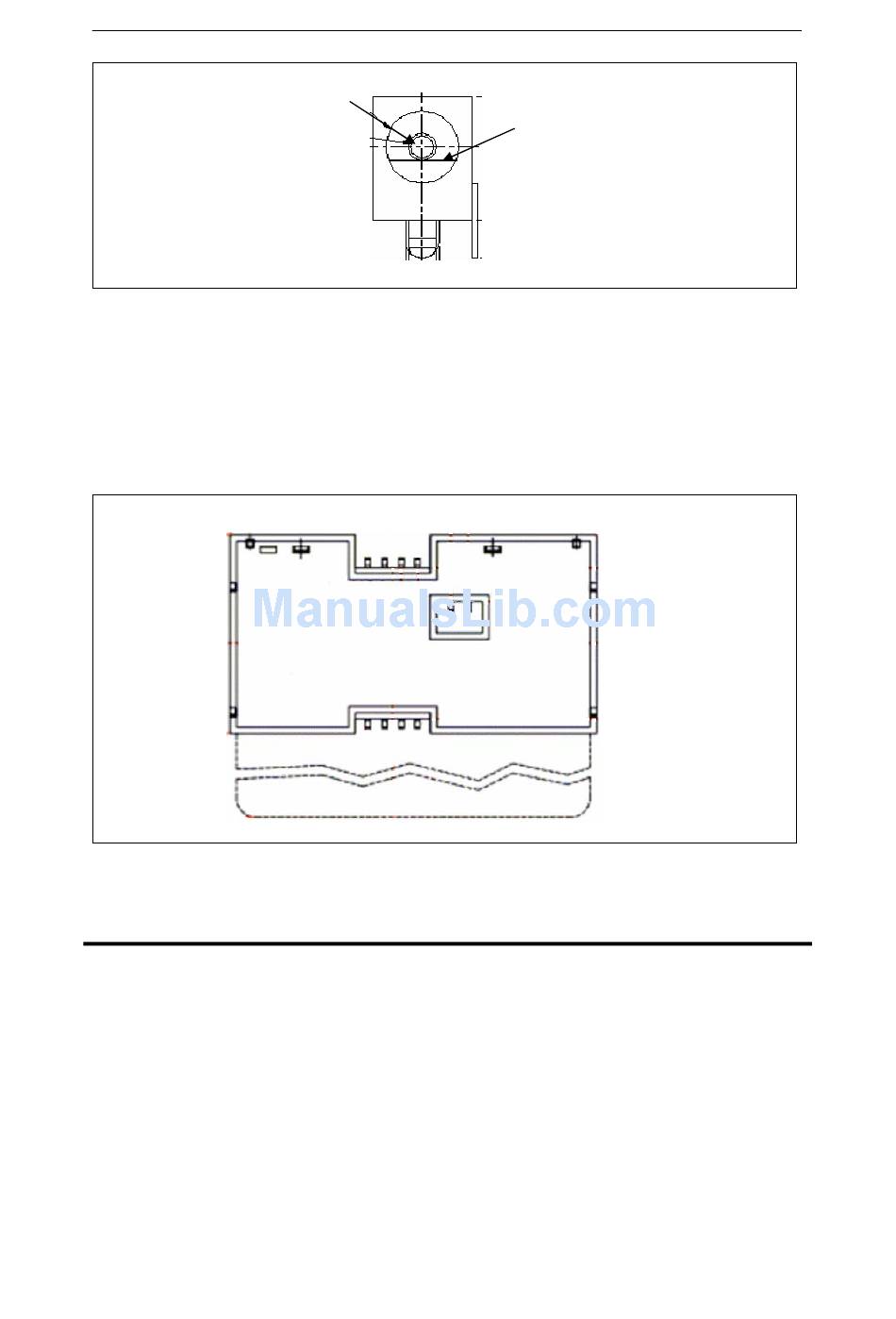

Figure 18
Smart card connector CN20
Table 32
Smart card connector CN20
Pin
Description
number
1
VCC
2
RST
3
CLK
4
NC
17
Detection pin of card presence
Qing SHAO
DC +5V
chapter 1.20
for detail.
1 2 3 4
17 18
5 6 7 8
Page 27
STM3220F-EVAL Board
GND
Pin
Description
number
5
GND
6
NC
7
I/O
8
NC
18
Detection pin of card presence
Viewed from front
Viewed from front
03/06/2009
