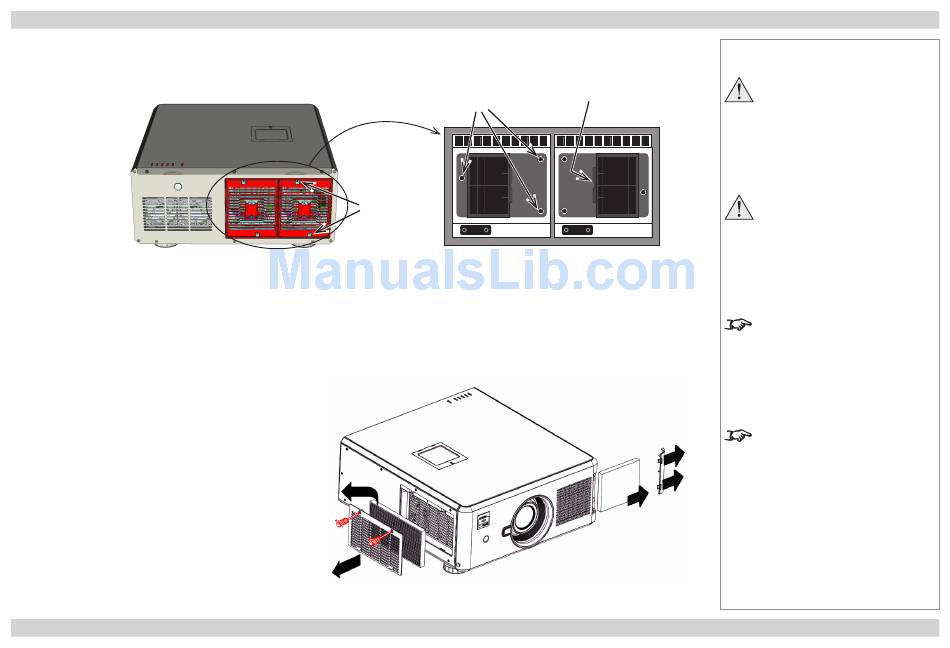

Changing a lamp

•
Unscrew the two captive screws securing the cover for the lamp that needs changing.
•
Open the lamp compartment.
•
Unscrew the three captive screws securing the lamp module.
•
Pull firmly on the handle to remove the lamp module.
•
Insert a new lamp module and fasten the screws.
•
Replace the lamp compartment cover and fasten the screws.

Changing the filters

•
Unscrew the captive screws securing the cover for the
side air inlet.
•
Replace the filter, making sure that the arrow showing
the air flow direction is pointed inwards.
•
Replace the cover and fasten the screws.
•
Remove the cover for the side air inlet by pushing it
firmly to the right, as shown.
•
Replace the filter, making sure that the arrow showing
the air flow direction is pointed inwards.
•
Replace the cover.
Rev A April 2012
CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL
Cover
screws
Lamp 1 Lamp 2
Side air inlet
filter
Lamp module
Handle
screws
Lamp 1 Lamp 2
Lamp compartment
Front air inlet
filter
Installation and Quick-Start Guide
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The lamp and colour wheel must
be changed only by suitably
qualified personnel.
Note that the projector will shut
down if any of the covers is opened
whilst in operation.
The filters should be changed at the
same time as the lamp is changed.
Page Inst_5
