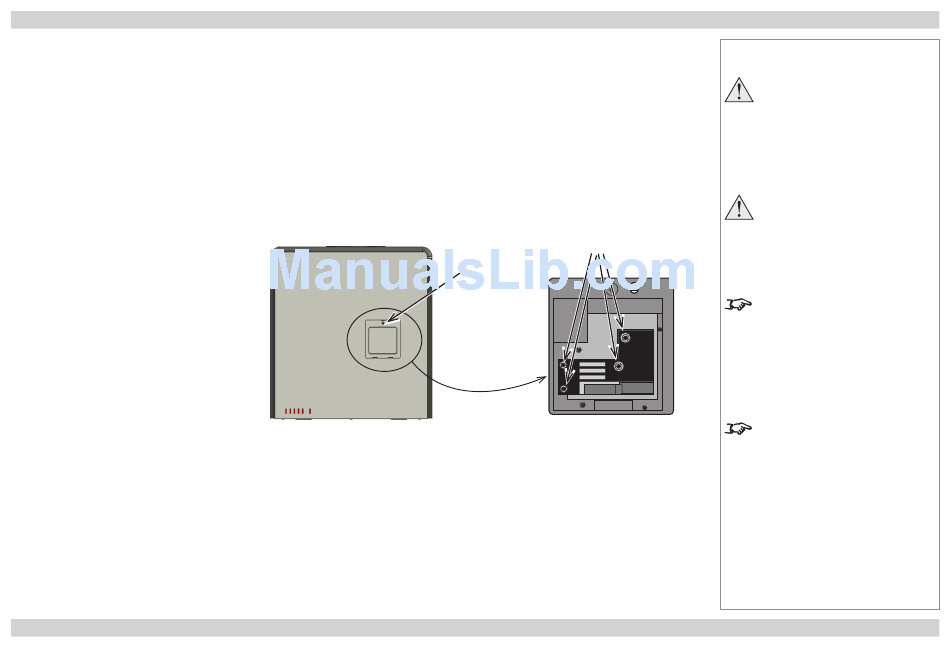

Changing the colour wheel
•
Unscrew the captive screw securing the
colour wheel compartment cover.
•
Open the colour wheel compartment.
•
Unscrew the four captive screws securing
the colour wheel.
•
Remove the colour wheel.
•
Insert a new colour wheel and fasten the
screws.
•
Replace the cover and fasten the screw.
Rev A April 2012
CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL
Cover
screw
Installation and Quick-Start Guide
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The lamp and colour wheel must
Colour
be changed only by suitably
wheel
qualified personnel.
screws
The projector firmware is colour
wheel specific, and so will need to
be changed at the same time as the
wheel.
For assistance, contact your dealer.
Colour wheel
Note that the projector will shut
compartment
down if any of the covers is opened
whilst in operation.
