Changing the lens, lamps, filters and colour wheel

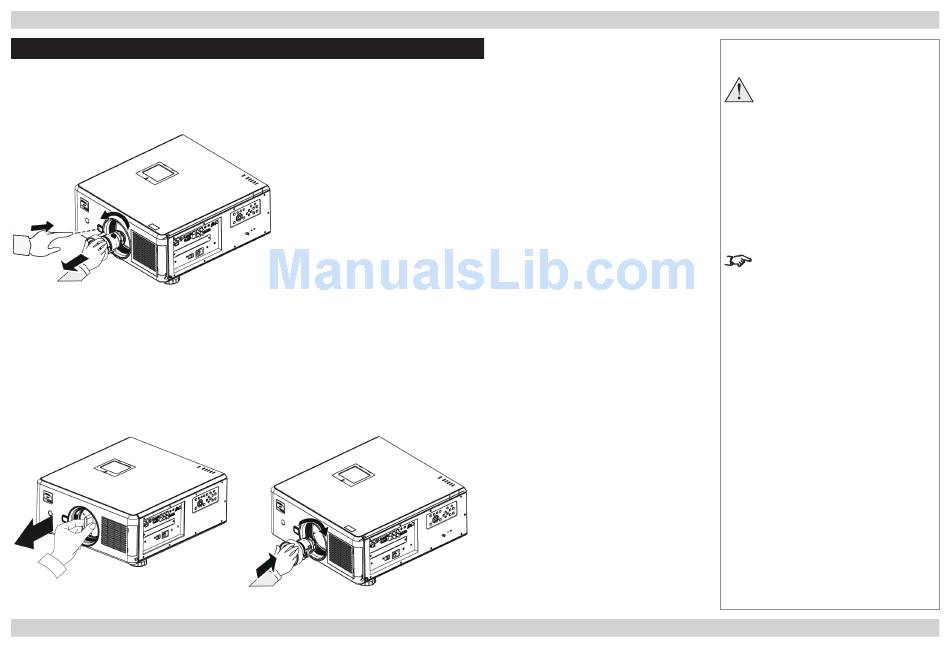

Removing the lens

•
Push in the lens release lever, and turn the lens anti-clockwise.
•
Remove the lens.

Fitting the lens

•
Remove the lens cap.
•
Position the lens so that the labels are at the top, and gently insert it all the way into the
lens mount.
•
Push the lens in firmly, and turn it clockwise until it clicks into place.
Rev A April 2012
CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The projector lens is shipped
separately.
Page Inst_4
