Digital Projection E-Vision 8000 Series User Manual page 43

Digital Projection
E-Vision 8000 series
continued

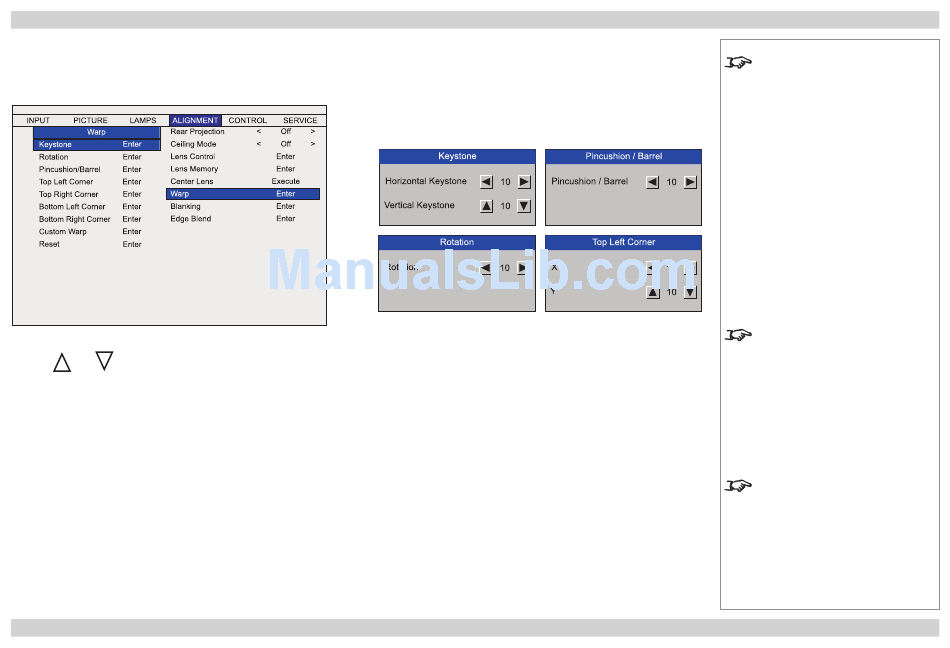

ALIGNMENT Menu
Warp sub menu
•
Press to open the Warp sub menu.
ENTER
Keystone, Rotation, Pincushion/Barrel, Corner
•
Use and to select one of the warp controls.
•
Press ENTER to open the warp control box:
•
Use the Keystone control to correct for any distortion caused by the projector being
in a different horizontal or vertical plane to the screen..
•
Use the control to rotate the image up to 5° clockwise or anti-clockwise.
Rotation
•
Use the Pincushion/Barrel
being concave or convex.
•
Use the four controls to stretch the image from each of the four corners..
Corner
•
Use to activate a user-defined warp pattern.
Custom Warp
Reset
•
Press to reset all warp settings to zero.
ENTER
Rev A April 2012
control to correct for any distortion caused by the screen
A TOUR OF THE MENUS
Warp control boxes
Operating Guide
Notes
See also Using the Menus, earlier
in this guide and Menu Map, later in
this guide.
Only one of the Warp controls, or
the Blanking control can be used
at any one time.
Exception: all four Corner controls
can be used at the same time.
If the Edge Blend feature is in
use, then only the four Corner
controls can be used.
If you are not sure which Warp
control is in use, then select Reset ,
from the Warp menu to reset all
controls to zero.
Page Op_15
