Digital Projection
E-Vision 8000 series

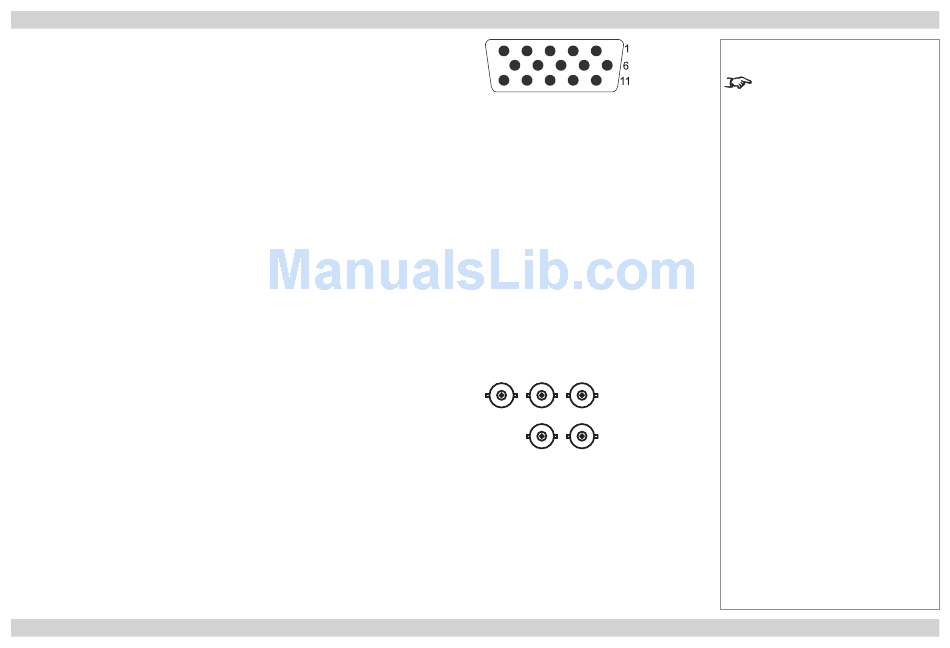

VGA
15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
COMPONENT
5 x 75 ohm BNC
RGBHV RGsB YPbPr
Green Green + Sync Y
Blue Blue Pb
Red Red Pr
Hsync
Vsync
Rev A April 2012
WIRING DETAILS
YCbCr
Y
Cb
Cr
pin view of female connector
Pb/Cb Y Pr/Cr
Blue Green Red
V H
Connection Guide
Notes
For full details of all input settings,
menu in the
see the INPUT
Operating Guide.
Page Conn_6
