Changing The Lamp Module

1. Turn the power off and allow the lamp to cool for 5 minutes.
2. Unscrew the captive finger screw securing the lamp door, and remove the door
(Fig. 1).
3. Unscrew the two cross-head screws securing the lamp module to the projector.
4. Lift the wire handle up and use it to pull out the lamp module (Fig. 2).
5. Fit a new lamp module, pushing it firmly into place.
6. Tighten the two cross-head screws.
7. Locate the two lugs at the bottom of the lamp door into the slots, and re-fit the
door. Tighten the finger screw.
Rev D July 2014

CHANGING THE LAMP MODULE

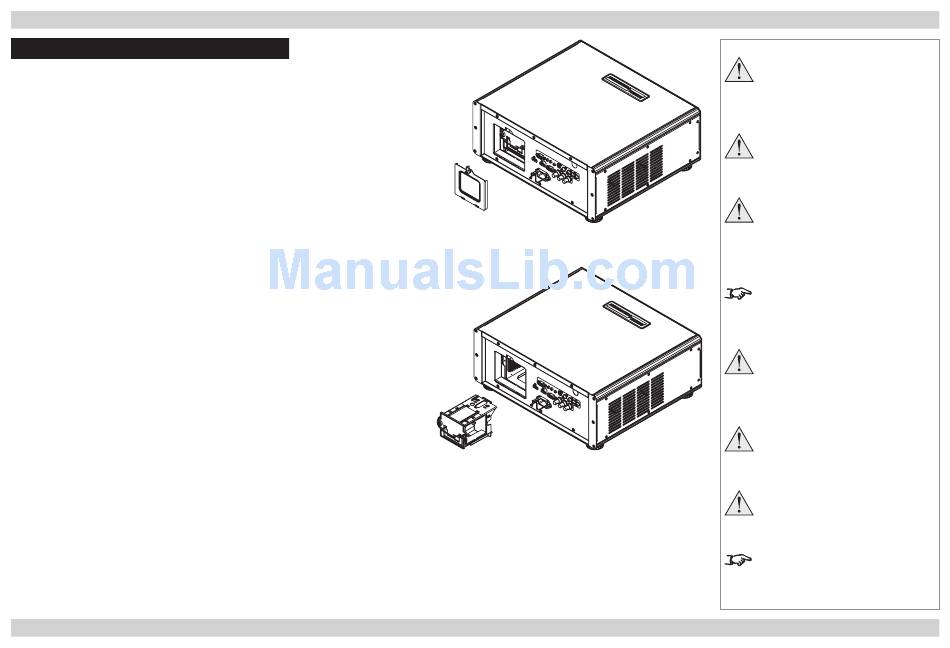

Fig. 1 Removing the lamp door
Fig. 2 Removing the lamp
Installation and Quick-Start Guide
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
There are no user-serviceable
parts inside the lamp module.
The whole module should be
replaced.
Use only lamps supplied by
Digital Projection and intended
for this projector. Fitting any
other lamp could damage both
projector and lamp, and will
invalidate the warranty.
At the end of life, the lamp will not
strike, and the Issue indicator on the
control panel will flash red. (Typical
lamp life is 2000 hours)
Do not use the lamp for more than
2000 hours, as this may cause
serious lamp failure, damage the
lamp module and cause extra
cost on replacement.
Avoid touching the glass surface
of the lamp module. If you do
accidentally touch the glass,
clean it before use.
HID lamps produce high intensity
light. Do not look directly at
the light coming from the lamp
housing or the lens.
Opening the lamp door will switch
the projector OFF. The projector
cannot be operated until the door is
fully closed.
