Digital Projection
E-Vision 8000 series
DVI-D
24 way D-type connector
1
TMDS Data 2-
2
TMDS Data 2+
3
TMDS Data 2 Shield
4
unused
5
unused
6
DDC Clock
7
DDC Data
8
unused
9
TMDS Data 1-
10
TMDS Data 1+
11
TMDS Data 1 Shield
12
unused
13
unused
14
+5 V Power
15
Ground
16
Hot Plug Detect*
17
TMDS Data 0-
18
TMDS Data 0+
19
TMDS Data 0 Shield
20
unused
21
unused
22
TMDS Clock Shield
23
TMDS Clock+
24
TMDS Clock-
* Hot plug detect (HPD) is fully DVI compliant. DVI sources detect the presence of a display
device by providing +5V on pin 14 and looking for +5V on pin 16. Whenever the projector is
operational, and 5V is present on pin 14, pin 16 will be held at +5V.
EDID is available even when the projector is switched off.
Operational means that the projector is powered up. Non operational states are powered
down and some self test and reprogramming modes.
High Definition Content Protection (HDCP) is supported on this input.
Rev A
April 2012
WIRING DETAILS

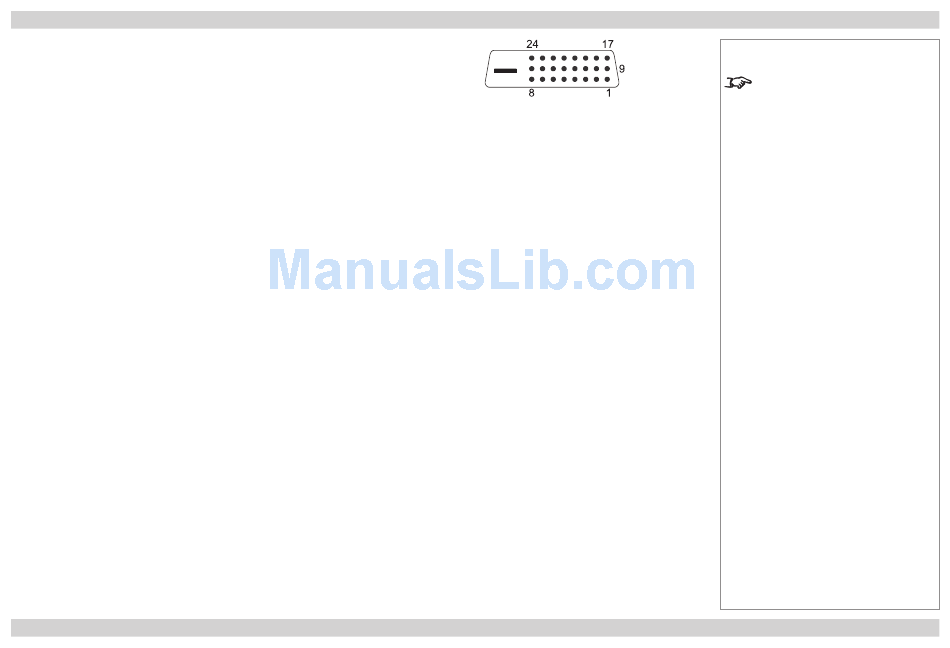

pin view of female connector
Connection Guide
Notes
For full details of all input settings,
menu in the
see the
INPUT
Operating Guide.
Page Conn_5
