Digital Projection
E-Vision 8000 series

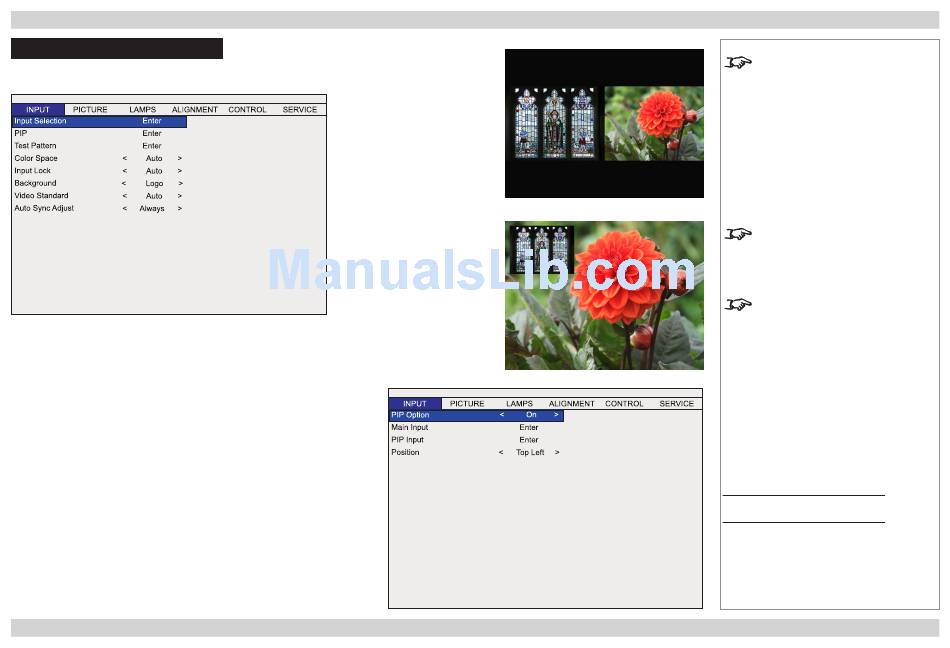

A Tour of the Menus
INPUT Menu
Input Selection
•
Press ENTER to open the Input Selection menu, then select an input from the list.
PIP (Picture in Picture) sub menu
•
Press ENTER to open the PIP sub menu.
PIP Option
•
Set PIP Option to On or Off .
Main and PIP Inputs
•
Select a from the drop-down list. The inputs are divided into
Main Input
two groups – the main image must be from one group, and the sub-
image must be from the other group.
•
Group A:
VGA, Component/BNC, Composite, S-Video
•
Group B:
HDMI, DVI, 3G-SDI
•
Select a PIP Input from the drop-down list.
Position
•
Select a or for the PIP image.
Position Split L-R
Rev A April 2012
A TOUR OF THE MENUS
PIP (split L-R)
PIP (top left)
Operating Guide
Notes
See also Using the Menus, earlier
in this guide and Menu Map, later in
this guide.
In this example, the flower is the
main image, and the window is the
sub-image.
The two images MUST be from
different Input groups .
Input Menu
PIP Submenu
Page Op_7
