Configuring Ethernet TCP/IP
Configuring Ethernet TCP/IP (cont.)

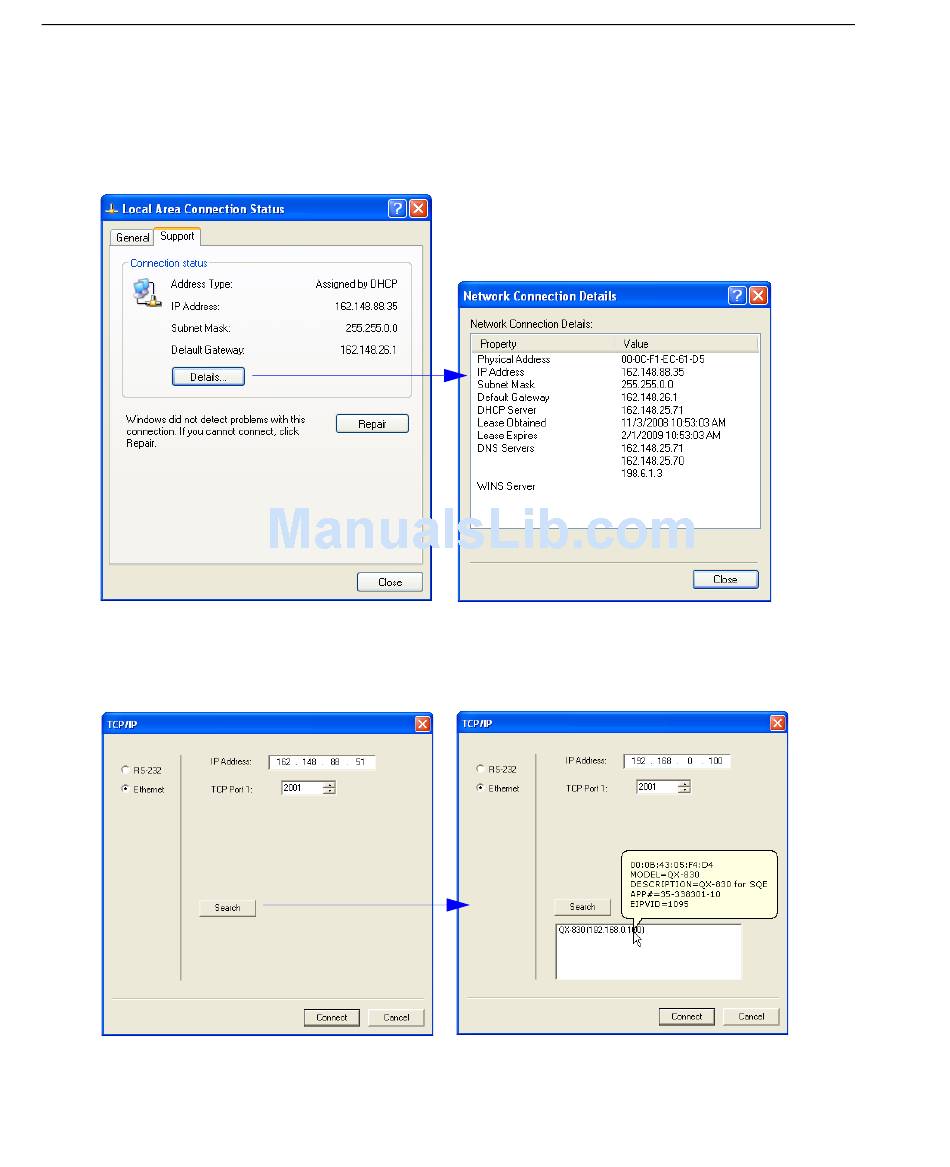

3. The Local Area Connection Status dialog will appear. To check the host computer's
connection settings, click Details on the Support tab.
To verify connection status:
4. A connected QX-870's default address information can be verified in ESP by clicking
the Search button in the
the host's IP address to determine whether or not they are in the same subnet range
(this can be determined by your I.T. department if you are unsure).
A-88
On the Support tab, click the Details
button to bring up a list of Network
Connection Details.
Connection Wizard. Compare the scanner's IP address to
QX-870 Industrial Raster Scanner User's Manual
