3.9 DVI Digital Video Output

General Description
The Thine THC63DV164 transmitter uses DVI
support displays ranging from 640 x 480 up to 1280 x 1024 resolutions in
a single link interface. As used on the Eclipse3, the THC63DV164
transmitter is connected to the Borealis using the 24-bit mode, one pixel
per clock edge interface. The THC63DV164 is programmed though an I
slave interface. It supports Receiver and Hot Plug Detection for a variety
of power management options. You can obtain the data sheet for the
THC63DV164 from the technical document section on the Rastergraf web
site
Features
• Scaleable Bandwidth: 25 - 110 Mpixels/sec (VGA to SXGA)
2
• I C Slave Programming Interface
• De-skewing option: varies clock to data timing
• Supports cable length over 5m with twisted pair, fiber-optics ready
• DVI 1.0 compatible
3-20 Programming On-board Devices

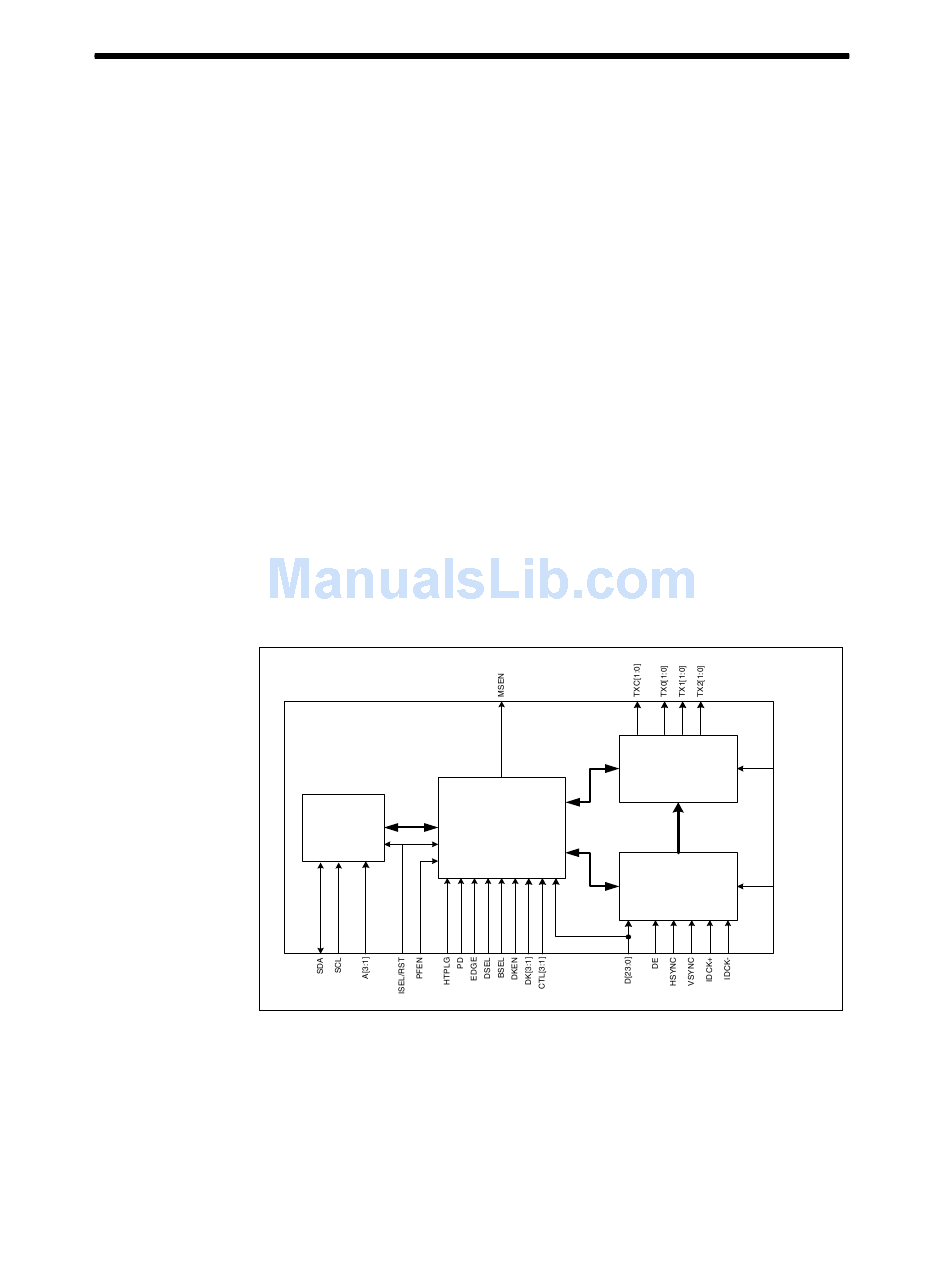

Figure 3-4 THC63DV164 Block Diagram

Registers
2
I C
Slave
Configuration
Machine
Logic Block
®
Digital technology to
PanelLink
Digital
core
&
Data Capture
Logic Block
2
C
EXT_RES
VREF
