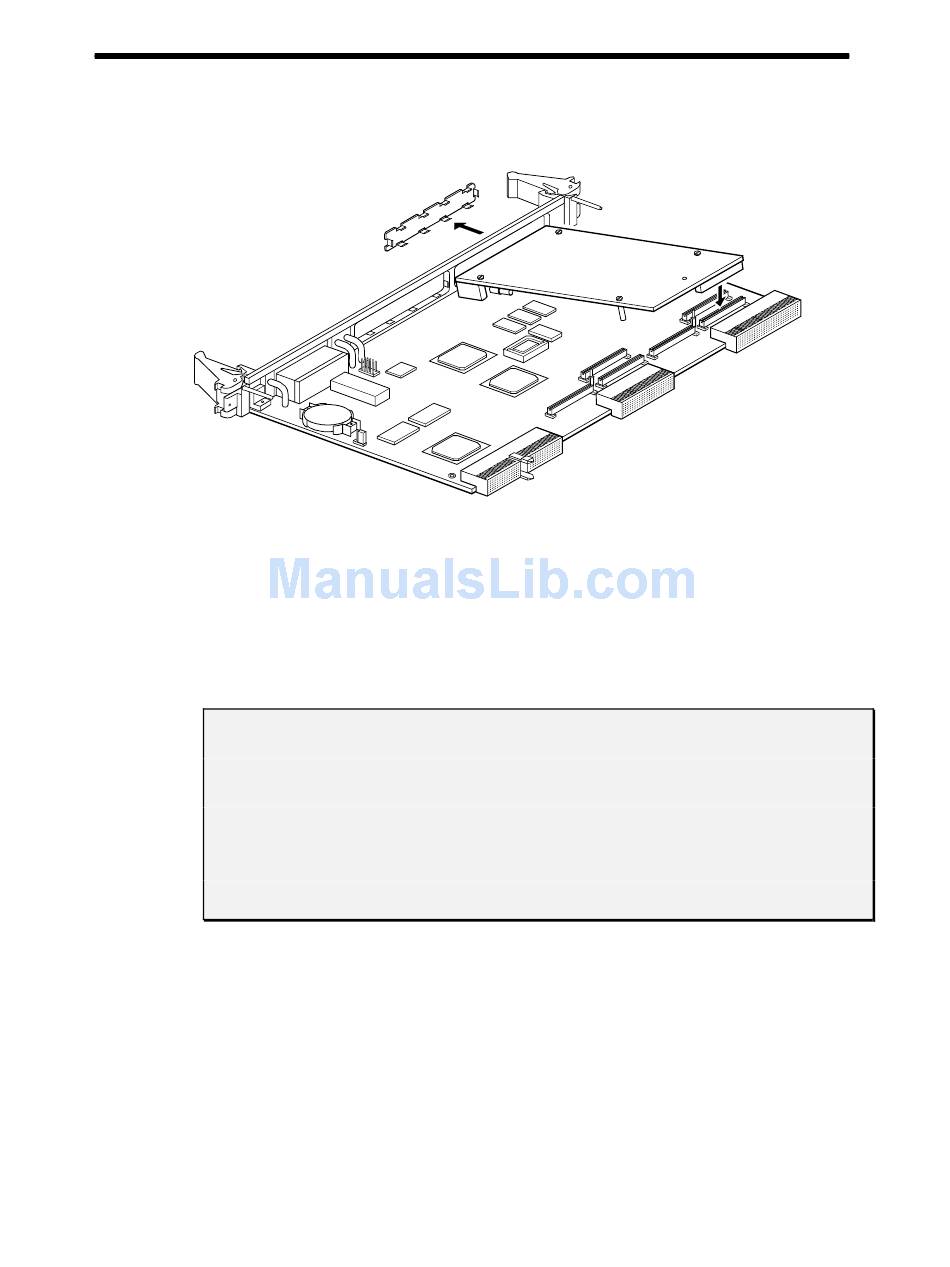

Figure 2-4 Installation of the PMC Module into an Emerson CPV3060

4. Touch a metal part of the computer chassis, remove the graphics board
from its anti static bag, and immediately slip it into the slot. After
ensuring that the board is seated correctly, install the mounting screws
(two near the front and two near the PMC connectors).
Note
Sometimes the graphics board front panel can hang up going into the
carrier front panel hole. This can be because there is a little rubber EMI
gasket that is installed in a slot cut into the graphics board front panel. If
the hole in the carrier board is "on the small side" it can be difficult if not
impossible to install the graphics board. In this case, you will have to
remove and discard the gasket.
5. Close the computer.
Now, go to Section 2.7.
