 Product Specifications
Dimensions
Weight
CPU/ Chipset
RAM
Storage
Front IO
Rear IO
Expansion
Slot
OS Support
Cooling
Power Unit
Temperature /
Humidity
Mounting
Certifications
QDSP-2060 User's Manual
200 x 35 x 153.1 mm (WxHxD)
1.1 Kg (Net)/2.5 Kg (Gross)
®
Intel Huron River Platform
2nd Generation Intel® Core™ i3/i5/i7 Processors
®
Intel QM67 / HM65
2x DDR3 1066/1333 SO-DIMM up to 16GB
1 x 2.5" SATA HDD or SSD
3x 3.5mm Phone Jack, support 5.1 channel audio output
1x S/PDIF Output
1x eSATA and USB 2.0 combo connector
4x USB 2.0 and 1x USB 3.0
1x CF Slot
1x Power LED, 1x Storage status LED and 1x WiFi status LED
1x 3G external antenna
1x DC JACK for DC19V single power input
1x DVI-I for DVI-D or VGA output
1x HDMI
1x DP
2x RJ-45 GbE ports
1x COM Port support RS-232/422/485 (Offer +5V selection)
2x Wifi external antenna
2 x mini PCIe slots (1x full size and 1x half size)
(Optional for 3G/WiFi/Bluetooth module)
1x SIM card slot (for 3G appliance) support user accessible
Windows Xp/XPe/Windows 7 / Windows 8 / Linux
System Fan with Smart Fan Control
Input: 100-240 VAC
Output: 75 Watt, +19V DC, 3.95A
Operating: 0°C to 45°C, 0%-90%, non-condensing
Storage: -20°C to 80°C, 0%-90%, non-condensing
VESA-mount
CE, FCC Class A

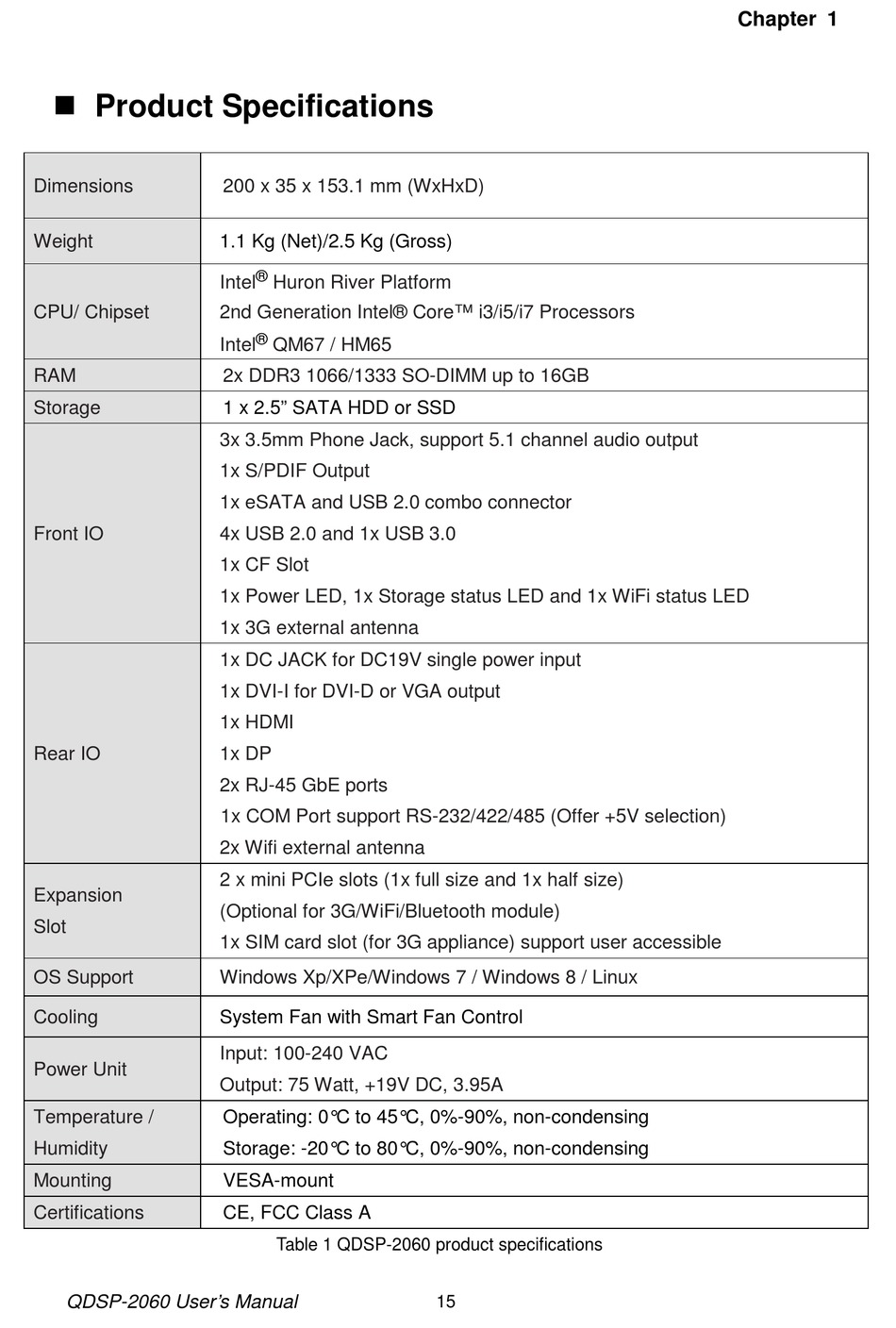

Table 1 QDSP-2060 product specifications

15
Chapter 1
