 Connecting VESA Mount on QDSP-2060
1. Take out the VESA mounting kit form your package and facing it onto the
bottom of QDSP-2060; then tightening the screws on your QDSP-2060 as
figures shown below.
2. Following figures are the complete status when you done.
QDSP-2060 User's Manual

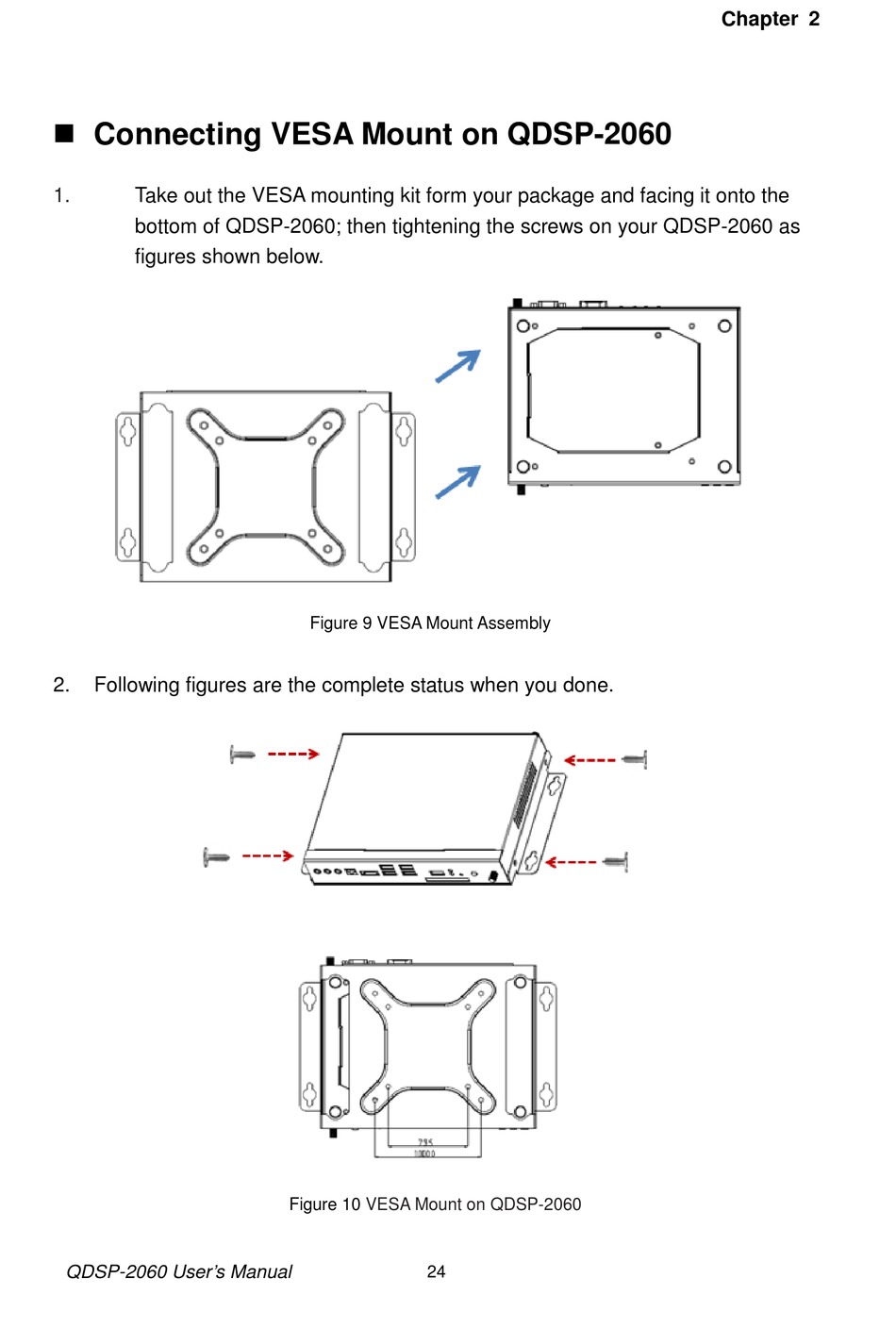

Figure 9 VESA Mount Assembly

Figure 10 VESA Mount on QDSP-2060
