M a i n A d v a n c e d
Super IO Configuration
>Serial Port 1 Configuration
Table 6 Advanced Menu –Super IO Configuration – Serial Port 1 Configuration
M a i n A d v a n c e d
Serial Port 1 Configuration
Serial Port
Device Settings
Change Settings
Serial Port 1 Type
COM1 Pin9 Definition
Serial Port
Options: Disabled, Enabled
Change Settings
Options: Auto,
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Serial Port Type
Options: RS232, RS422, RS485
COM1 Pin9 Definition
Options: RI, +5V
QDSP-2060 User's Manual

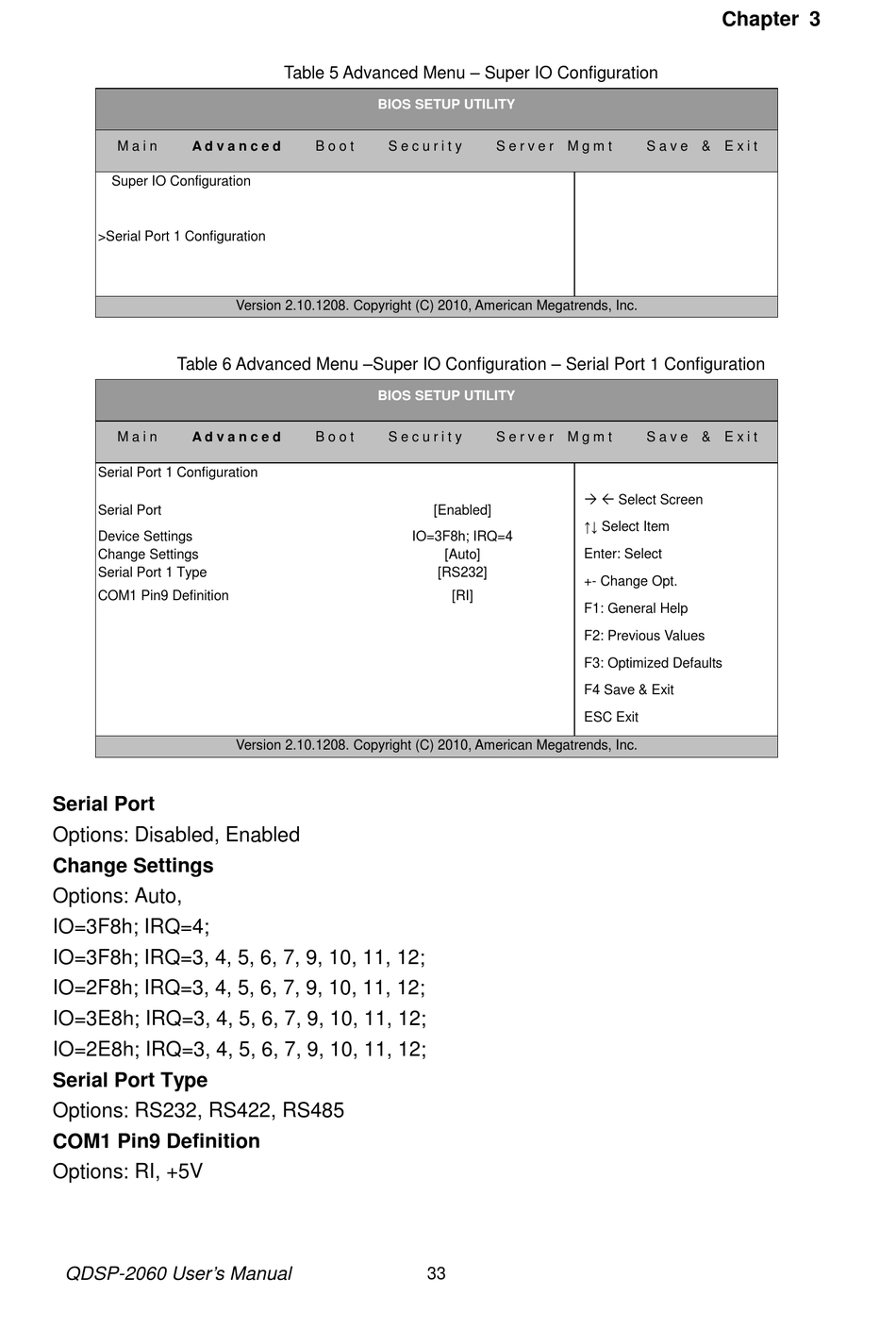

Table 5 Advanced Menu – Super IO Configuration
BIOS SETUP UTILITY
B o o t S e c u r i t y
Version 2.10.1208. Copyright (C) 2010, American Megatrends, Inc.
BIOS SETUP UTILITY
B o o t S e c u r i t y
Version 2.10.1208. Copyright (C) 2010, American Megatrends, Inc.
S e r v e r M g m t
S e r v e r M g m t
[Enabled]
IO=3F8h; IRQ=4
[Auto]
[RS232]
[RI]
33
Chapter 3
S a v e & E x i t
S a v e & E x i t
  Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
